Roller chain guide Type ETA

Chain guide rail type ETA guides the loaded and unloaded strand of a chain (suitable for steel C profile)

Compatible Chain

Choose a Compatible Chain

Material

Choose a Material
"S" newCycle® green
Original "S"® green

Length (mm)

Choose a Length (mm)
2000.0
3048.0
Cut length

quick_reorder Ready to ship in: 1-2 working days

Show prices & order or request a quote?

Log in now to order directly or secure individual offers.

Product number

221310039

view_in_ar

CAD

Show in 3D

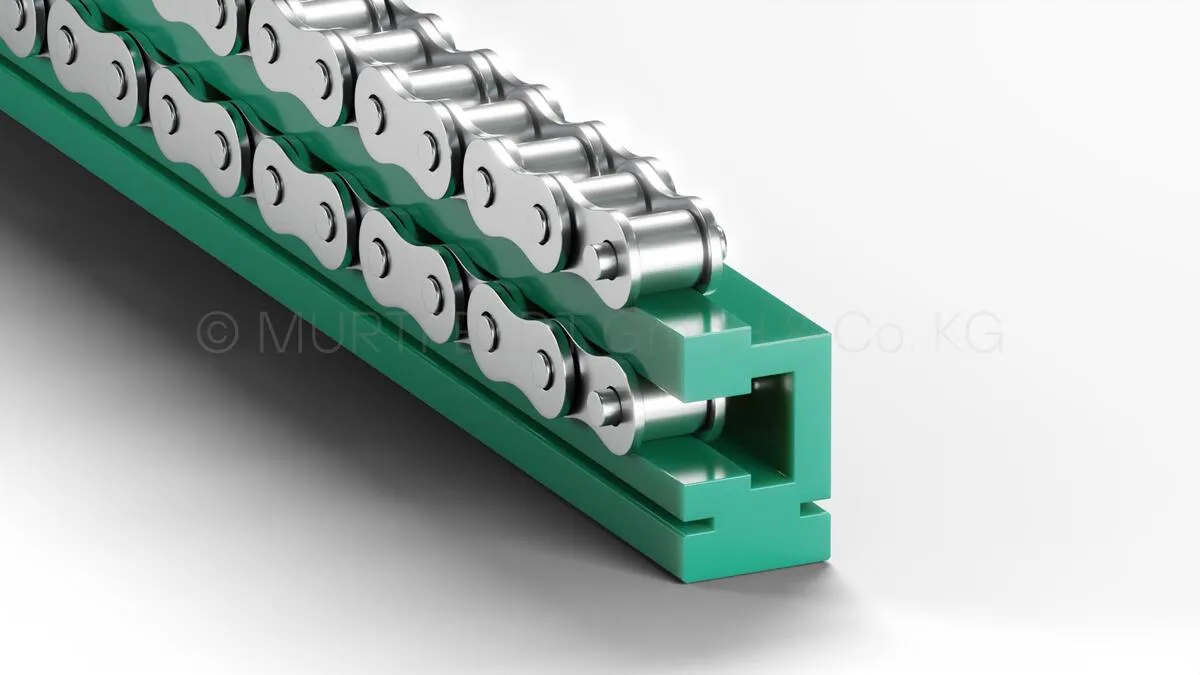

The Type ETA chain guide rail for horizontally mounted simplex roller chains enables efficient guidance of the loaded and unloaded strand of a chain in a single guide rail. This optimizes available space and increases the efficiency of your application. It is ideally suited when a compact design is required. Optionally, it can be prepared for the addition of a steel-C profile.

Manufactured from Original "S"® green® or our recycled material "S" newCycle® green, the guide rail is particularly robust and durable. Custom dimensions and variations in different plastics are also available.

You can find suitable steel C profiles at the bottom of this page.

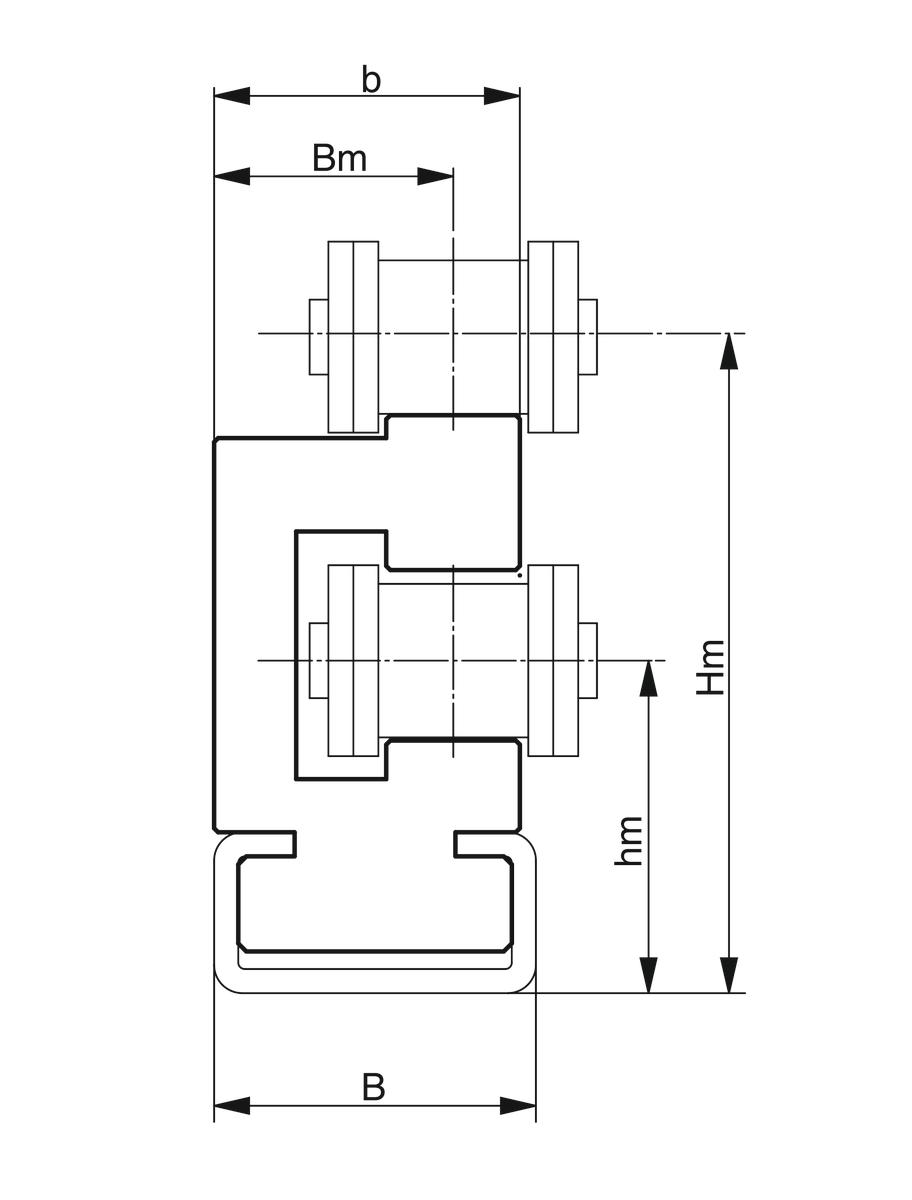

Construction typeeuropean
weight (kg)0.28
Bm (mm)14.5
b (mm)17.0
Hm (mm)30.2
hm (mm)17.0
Suitable C-profile typeC3

Material Information

Steel C3 profile

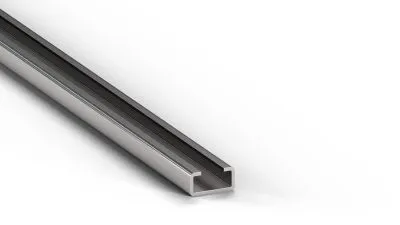

Stainless Steel C3 profile, 2m
Steel C3 profile, galvanised, 3m
Stainless Steel C3 profile, 3m
Steel C3 profile, galvanised, 6m
Stainless Steel C3 profile, 6m

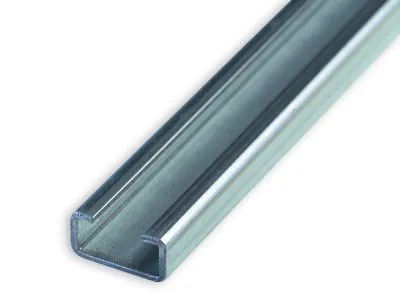

Steel C3 profile, bare, 6m
