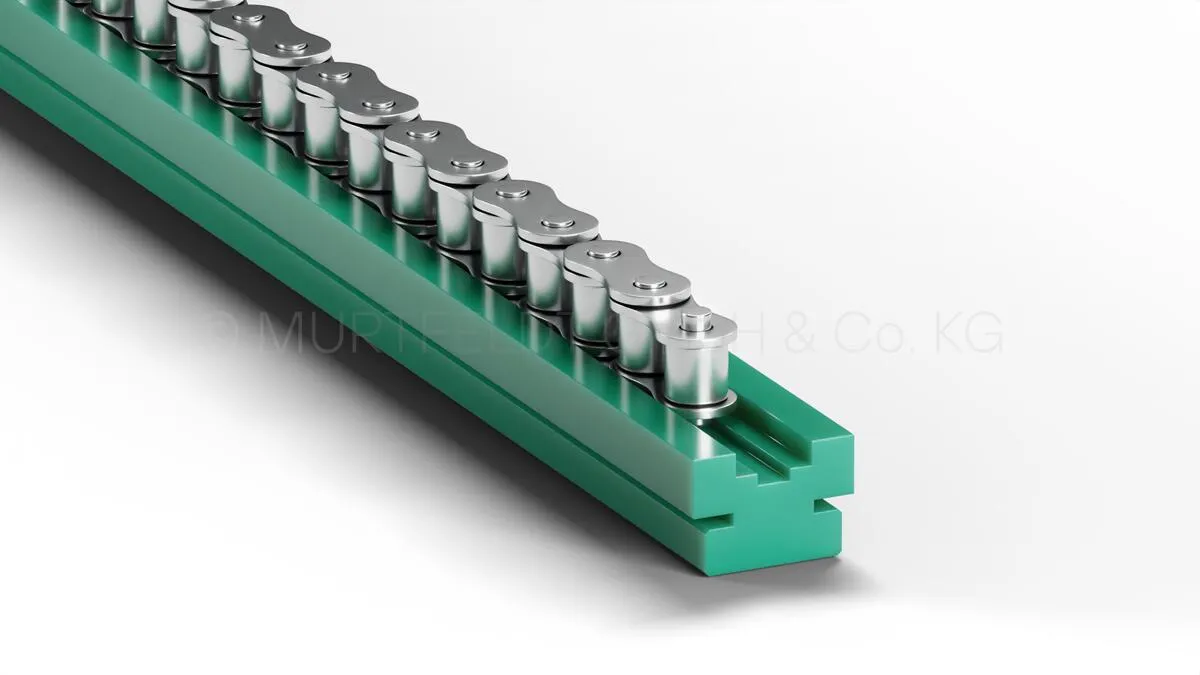

The Type U guide rail for vertically mounted simplex, duplex, or triplex chains is made from our reliable Original "S"® green® or our recycled material "S" newCycle® green and is suitable for external chain locks. Our materials and the products manufactured from them meet the highest standards according to DIN ISO 606. Our products impress with tight tolerances, ensuring high precision.
Rely on fast delivery times: We always have our Original "S"® green® as well as the sustainable alternative "S" newCycle® green in stock. Additionally, we offer customized solutions regarding the length of the guide and the type of plastic used.
You can find suitable steel C profiles at the bottom of this page.

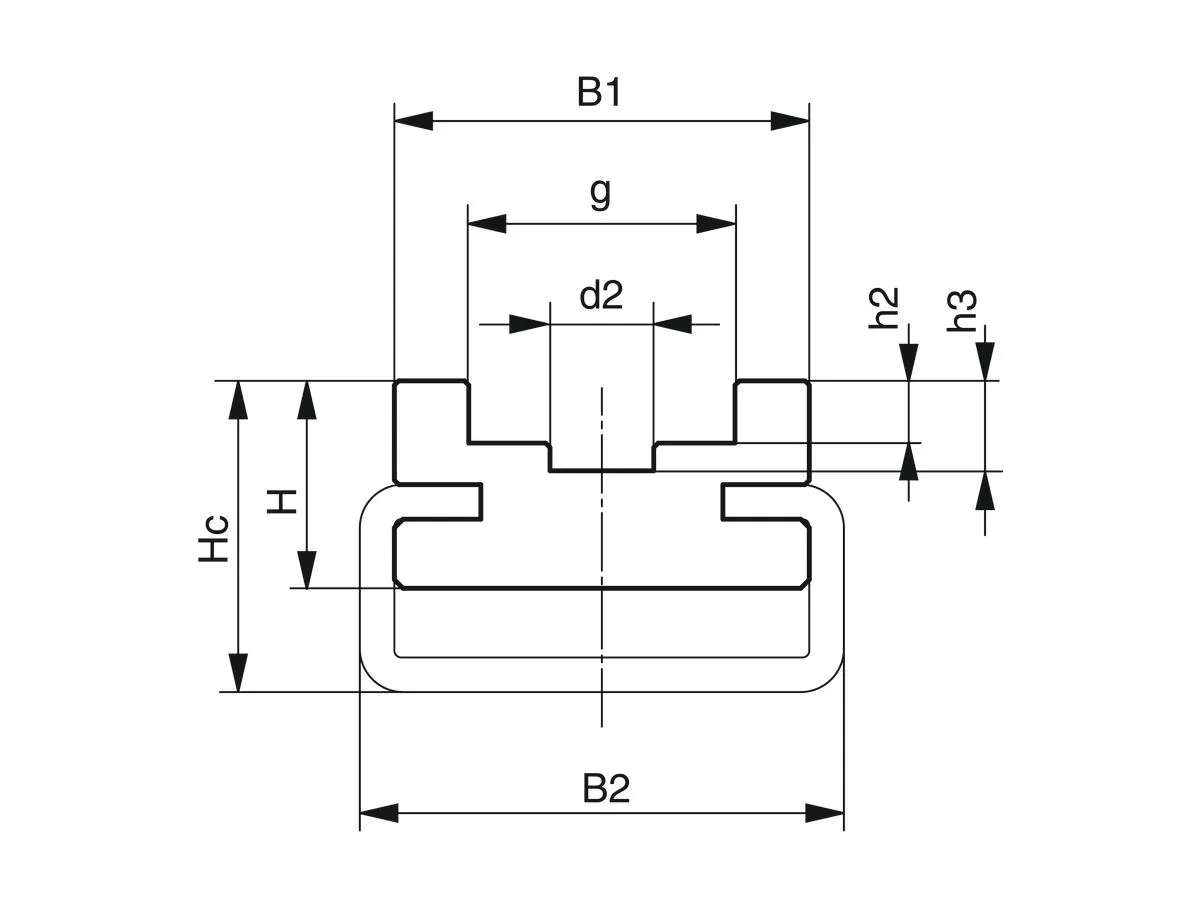

| Construction type | european |
| B1 (mm) | 20.0 |
| H (mm) | 14.0 |
| B2 (mm) | 20.0 |
| weight (kg) | 0.52 |
| d2 (mm) | 4.0 |
| g (mm) | 9.4 |
| h3 (mm) | 4.2 |
| h2 (mm) | 2.8 |
| Suitable C-profile type | C3 |
| Hc (mm) | 17.0 |
