Note: The product shown is for illustration purposes only.

Product number

221320010

view_in_ar

CAD

Show in 3D

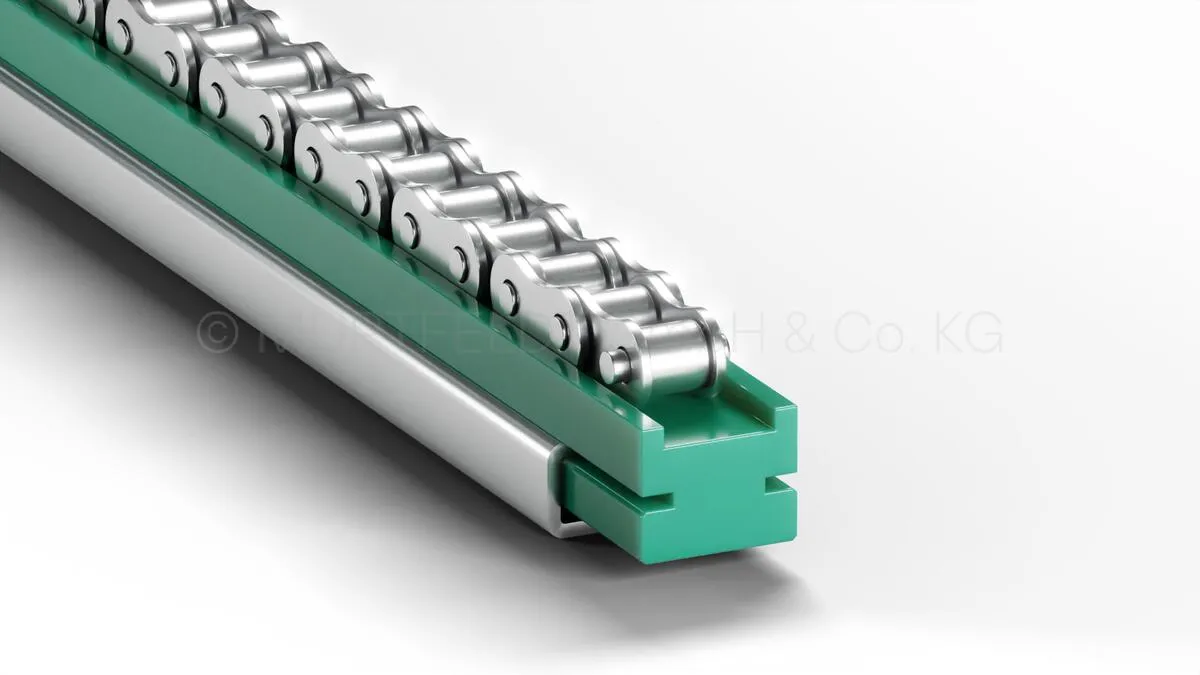

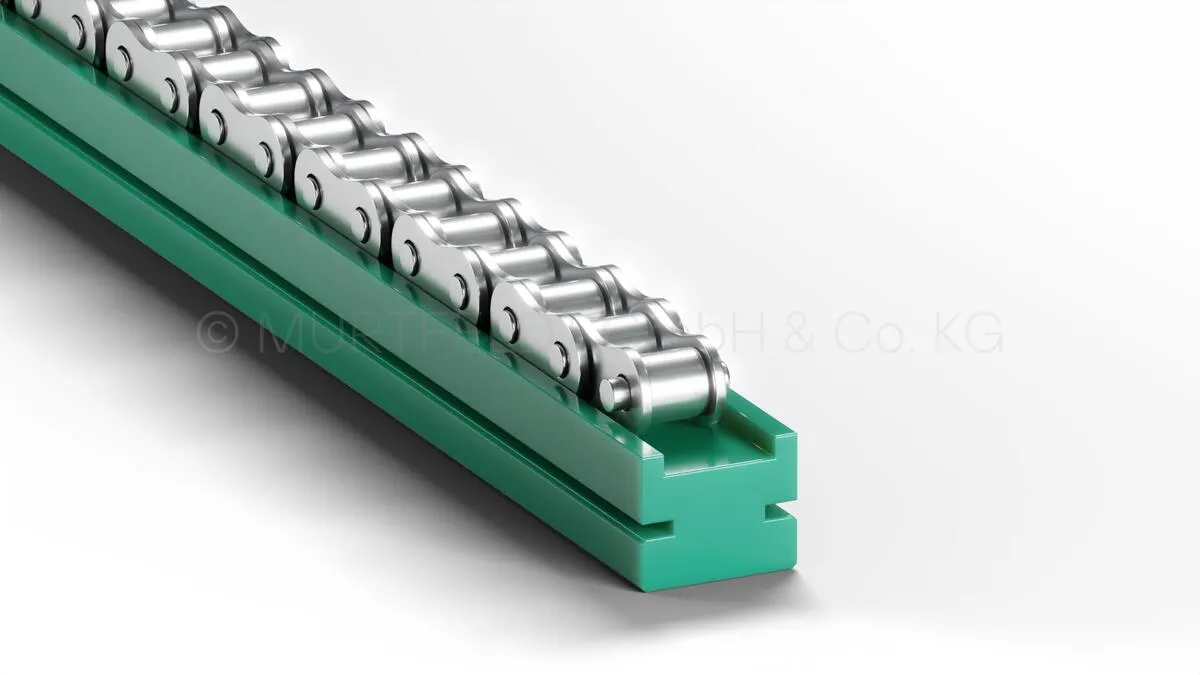

Our Type TU guide rail for simplex chains with optional steel-C preparation is made from our Original "S"® green® or our recycled material "S" newCycle® green and an ideal choice for durable solutions. Manufacturing according to DIN ISO 606 guarantees the highest precision and consistent quality.

We also produce intermediate lengths and guide rails from alternative plastics.

You can find suitable steel C profiles at the bottom of this page.

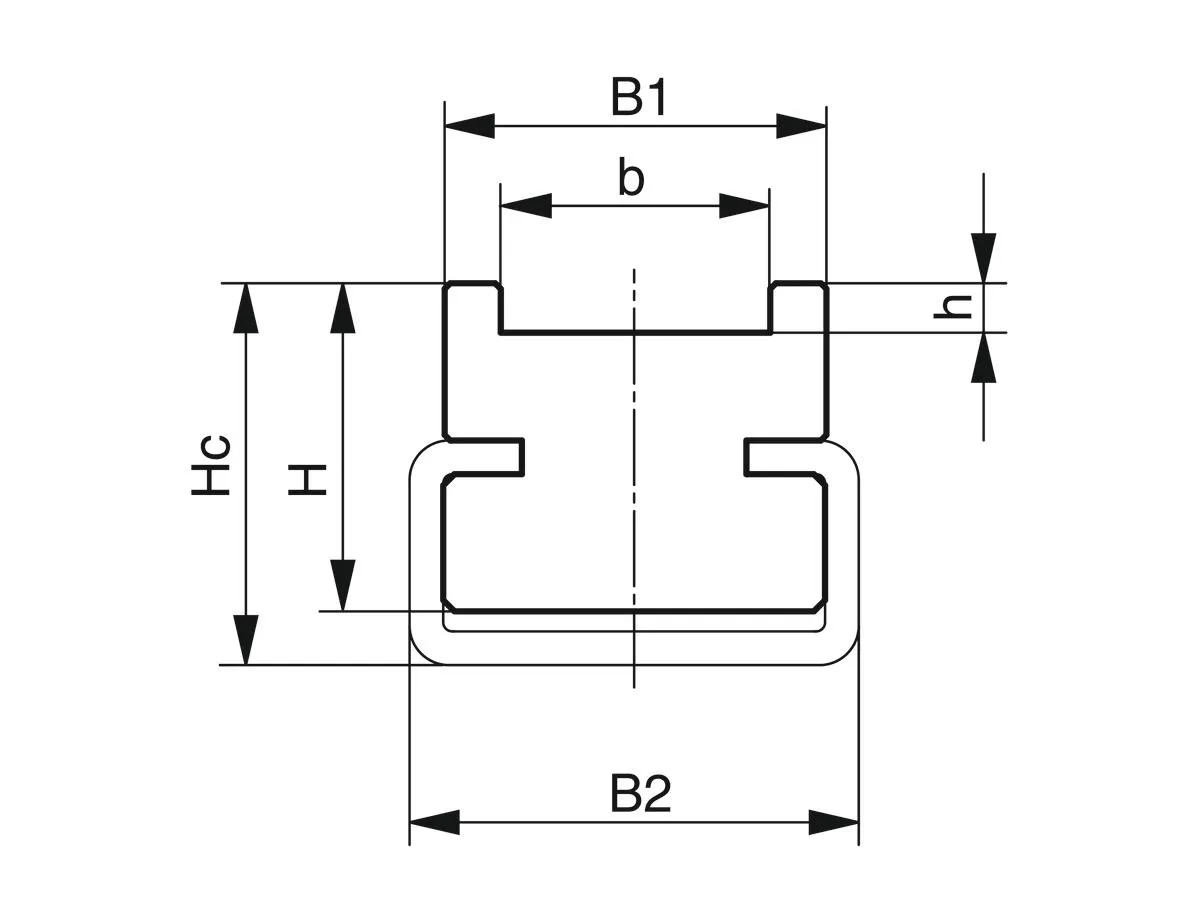

Construction type	european
H (mm)	14.0
B1 (mm)	17.0
B2 (mm)	20.0
weight (kg)	0.34
b (mm)	12.0
h (mm)	2.2
Suitable C-profile type	C3
Hc (mm)	17.0

Roller chain guide Type CTU

High-quality chain guide type CTU with U-profile for simplex chains (suitable for steel C profile)

Compatible Chain

3/8" x 5/32", 83-1

Material

Original "S"® green

PREMIUM

For highest demands & maximum safety

"S" NewCycle® green

Sustainable & economical

Length (mm)

2000.0

Cut length

quick_reorder Ready to ship in: 4-5 working days

Show prices & order or request a quote?
