Product number
221310010
CAD
Show in 3D
Our Type TU guide rail for simplex chains with optional steel-C preparation is made from our Original "S"® green® or our recycled material "S" newCycle® green and an ideal choice for durable solutions. Manufacturing according to DIN ISO 606 guarantees the highest precision and consistent quality.
We also produce intermediate lengths and guide rails from alternative plastics.
You can find suitable steel C profiles at the bottom of this page.

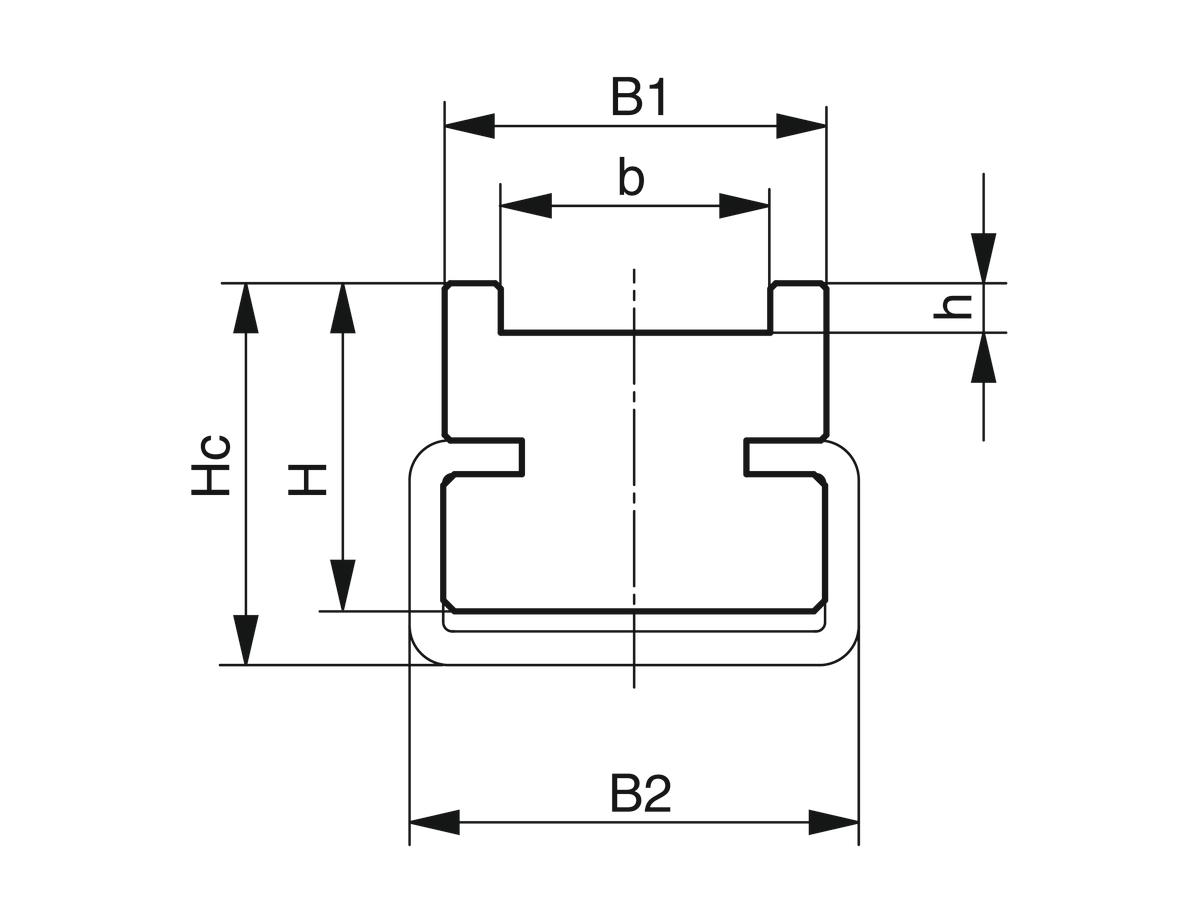

| Construction type | european |
| B1 (mm) | 17.0 |
| H (mm) | 14.0 |
| Suitable C-profile type | C3 |
| Hc (mm) | 17.0 |
| weight (kg) | 0.18 |
| h (mm) | 2.2 |
| b (mm) | 12.0 |
Roller chain guide Type CTU
High-quality chain guide type CTU with U-profile for simplex chains (suitable for steel C profile)
Matching chain
Material
B2 (mm)
Length (mm)
quick_reorder Delivery time: 1-2 working days
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
221310010
CAD
Show in 3D
Our Type TU guide rail for simplex chains with optional steel-C preparation is made from our Original "S"® green® or our recycled material "S" newCycle® green and an ideal choice for durable solutions. Manufacturing according to DIN ISO 606 guarantees the highest precision and consistent quality.
We also produce intermediate lengths and guide rails from alternative plastics.
You can find suitable steel C profiles at the bottom of this page.
| Construction type | european |
| B1 (mm) | 17.0 |
| H (mm) | 14.0 |
| Suitable C-profile type | C3 |
| Hc (mm) | 17.0 |
| weight (kg) | 0.18 |
| h (mm) | 2.2 |
| b (mm) | 12.0 |
