Note: The product shown is for illustration purposes only.
Product number
221220016
CAD
Show in 3D

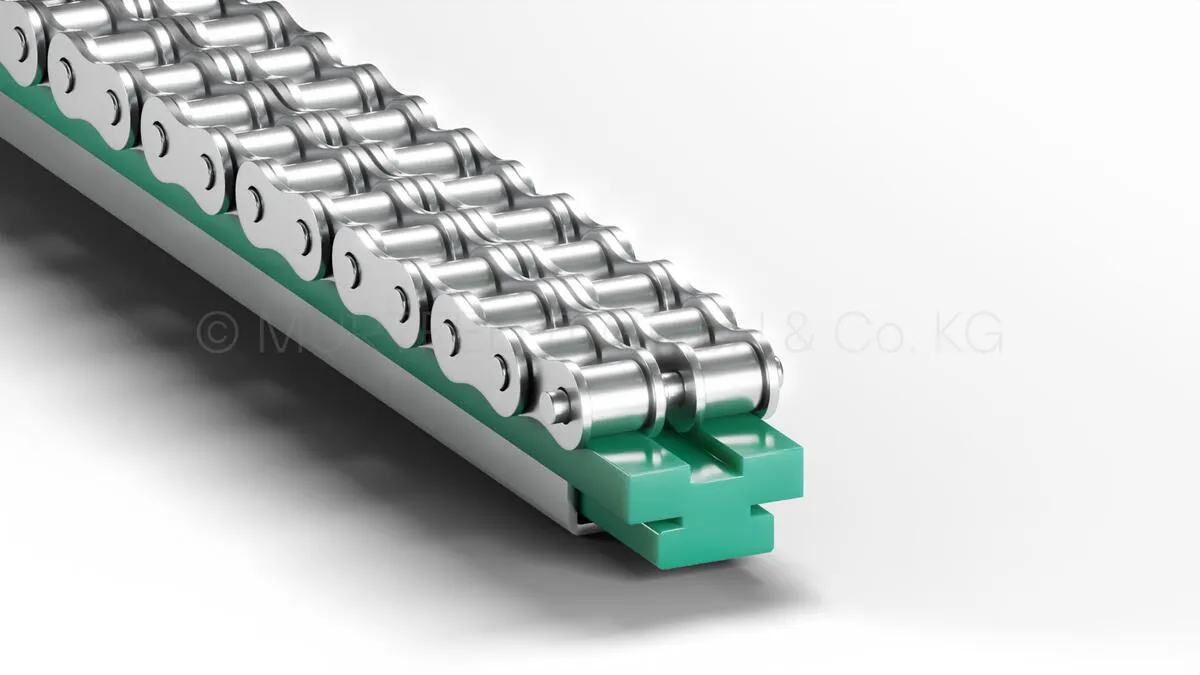

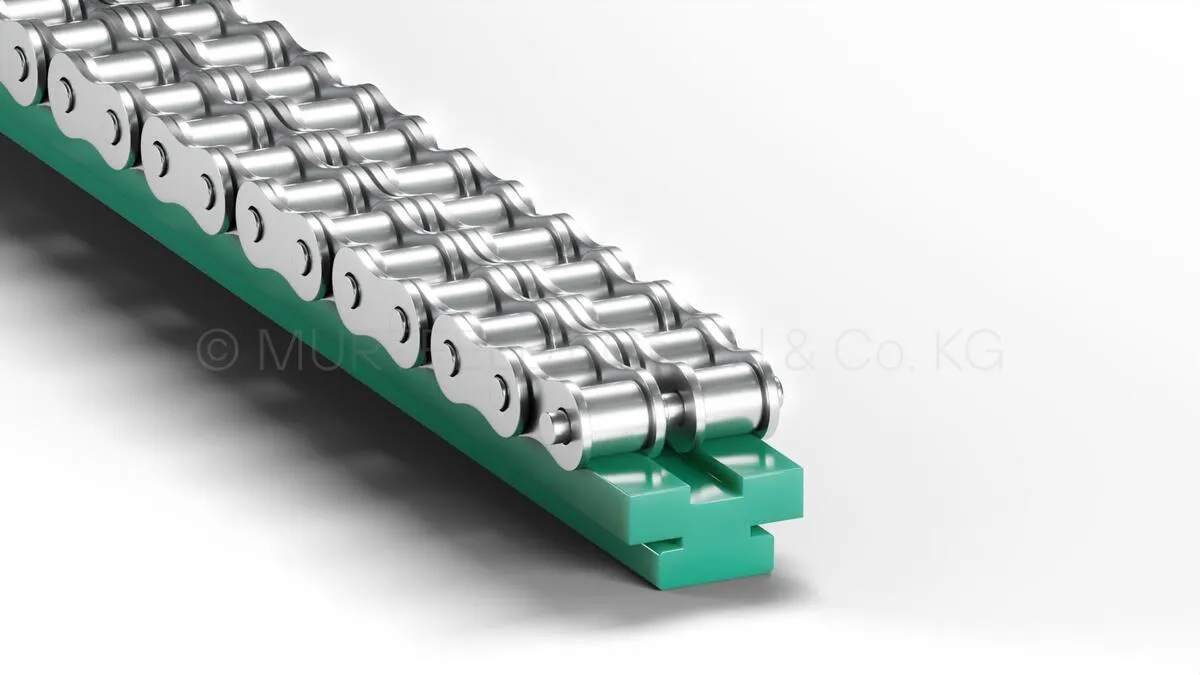

The chain guide rail for duplex chains is made from our Original "S"® green® or our recycled material "S" newCycle® green, which are characterized by precise tolerances in the plastic profile cross-section, as well as optimal performance and durability. They have been specially developed for applications where longevity is crucial.
Reliable: The guide rail is in stock as standard and quickly available.
Customizable: Upon request, we offer intermediate dimensions and alternative materials.
You can find suitable steel C profiles at the bottom of this page.

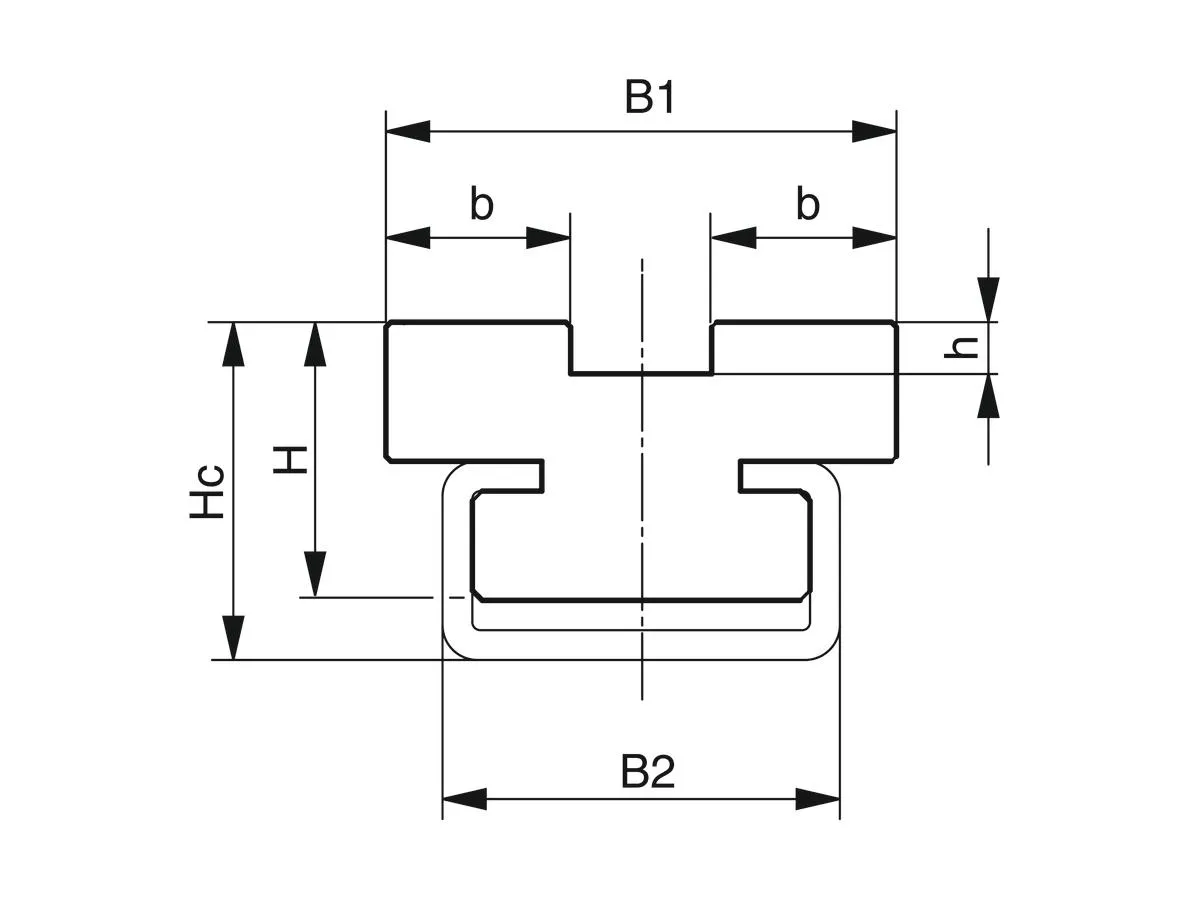

| Construction type | european |
| B1 (mm) | 21.2 |
| H (mm) | 14.0 |
| B2 (mm) | 20.0 |
| weight (kg) | 0.44 |
| b (mm) | 7.2 |
| h (mm) | 2.2 |
| Suitable C-profile type | C3 |
| Hc (mm) | 17.0 |
Roller chain guide Type CT-Duplex
Compatible Chain
Material
Length (mm)
quick_reorder Ready to ship in: 1 working day
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
221220016
CAD
Show in 3D
The chain guide rail for duplex chains is made from our Original "S"® green® or our recycled material "S" newCycle® green, which are characterized by precise tolerances in the plastic profile cross-section, as well as optimal performance and durability. They have been specially developed for applications where longevity is crucial.
Reliable: The guide rail is in stock as standard and quickly available.
Customizable: Upon request, we offer intermediate dimensions and alternative materials.
You can find suitable steel C profiles at the bottom of this page.
| Construction type | european |
| B1 (mm) | 21.2 |
| H (mm) | 14.0 |
| B2 (mm) | 20.0 |
| weight (kg) | 0.44 |
| b (mm) | 7.2 |
| h (mm) | 2.2 |
| Suitable C-profile type | C3 |
| Hc (mm) | 17.0 |
Steel C3 profile
Optimal partner for receiving plastic sliding guides
Stainless Steel C3 profile, 2m
Optimal partner for receiving plastic sliding guides
Steel C3 profile, galvanised, 3m
Optimal partner for receiving plastic sliding guides
Stainless Steel C3 profile, 3m
Optimal partner for receiving plastic sliding guides
Steel C3 profile, galvanised, 6m
Optimal partner for receiving plastic sliding guides
Stainless Steel C3 profile, 6m
Optimal partner for receiving plastic sliding guides
Steel C3 profile, bare, 6m
Optimal partner for receiving plastic sliding guides
