Product number
221320025
CAD
Show in 3D
The Type K chain guide rail for vertically mounted simplex, duplex, or triplex chains with an external chain lock is manufactured from our high-quality Original "S"® green® or our recycled material "S" newCycle® green. It provides optimal stability, making it a durable solution for demanding applications.
On request, intermediate dimensions and variations in other plastics are also available.
You can find suitable steel C profiles at the bottom of this page.

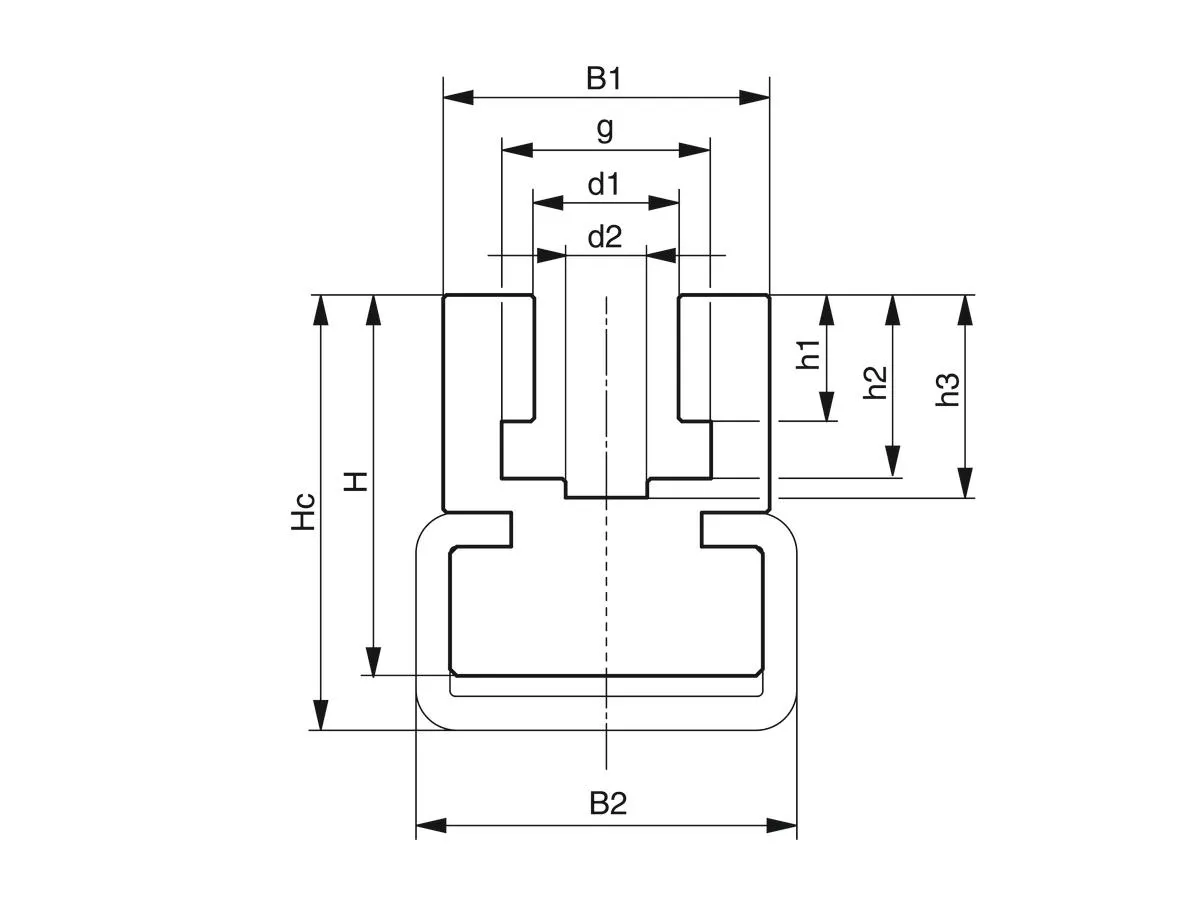

| Construction type | european |
| B1 (mm) | 20.0 |
| H (mm) | 18.0 |
| B2 (mm) | 20.0 |
| weight (kg) | 0.52 |
| d2 (mm) | 4.0 |
| d1 (mm) | 6.6 |
| g (mm) | 9.4 |
| h1 (mm) | 3.6 |
| h3 (mm) | 8.0 |
| h2 (mm) | 7.0 |
| Hc (mm) | 21.0 |
| Suitable C-profile type | C3 |
Roller chain guide Type CK
Compatible Chain
Material
Length (mm)
quick_reorder Ready to ship in: 4-5 working days
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
221320025
CAD
Show in 3D
The Type K chain guide rail for vertically mounted simplex, duplex, or triplex chains with an external chain lock is manufactured from our high-quality Original "S"® green® or our recycled material "S" newCycle® green. It provides optimal stability, making it a durable solution for demanding applications.
On request, intermediate dimensions and variations in other plastics are also available.
You can find suitable steel C profiles at the bottom of this page.
| Construction type | european |
| B1 (mm) | 20.0 |
| H (mm) | 18.0 |
| B2 (mm) | 20.0 |
| weight (kg) | 0.52 |
| d2 (mm) | 4.0 |
| d1 (mm) | 6.6 |
| g (mm) | 9.4 |
| h1 (mm) | 3.6 |
| h3 (mm) | 8.0 |
| h2 (mm) | 7.0 |
| Hc (mm) | 21.0 |
| Suitable C-profile type | C3 |
Steel C3 profile
Optimal partner for receiving plastic sliding guides
Stainless Steel C3 profile, 2m
Optimal partner for receiving plastic sliding guides
Steel C3 profile, galvanised, 3m
Optimal partner for receiving plastic sliding guides
Stainless Steel C3 profile, 3m
Optimal partner for receiving plastic sliding guides
Steel C3 profile, galvanised, 6m
Optimal partner for receiving plastic sliding guides
Stainless Steel C3 profile, 6m
Optimal partner for receiving plastic sliding guides
Steel C3 profile, bare, 6m
Optimal partner for receiving plastic sliding guides
