Product number
221310025
CAD
Show in 3D

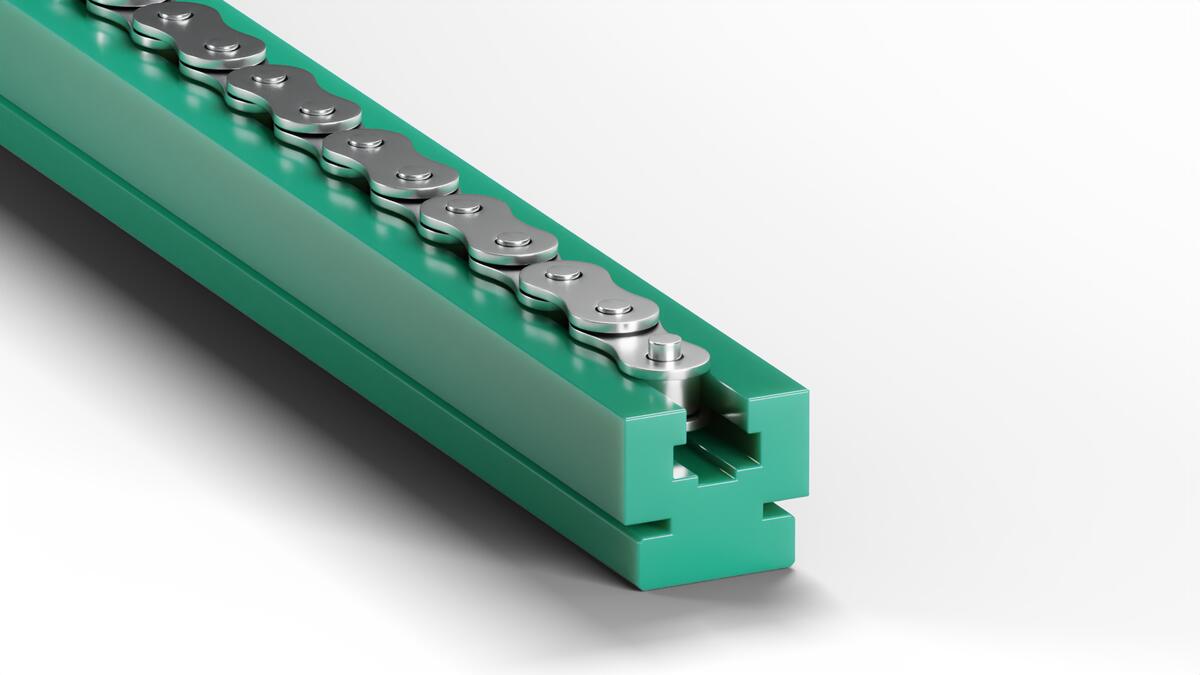

The Type K chain guide rail for vertically mounted simplex, duplex, or triplex chains with an external chain lock is manufactured from our high-quality Original "S"® green® or our recycled material "S" newCycle® green. It provides optimal stability, making it a durable solution for demanding applications.
On request, intermediate dimensions and variations in other plastics are also available.
You can find suitable steel C profiles at the bottom of this page.
| Construction type | european |

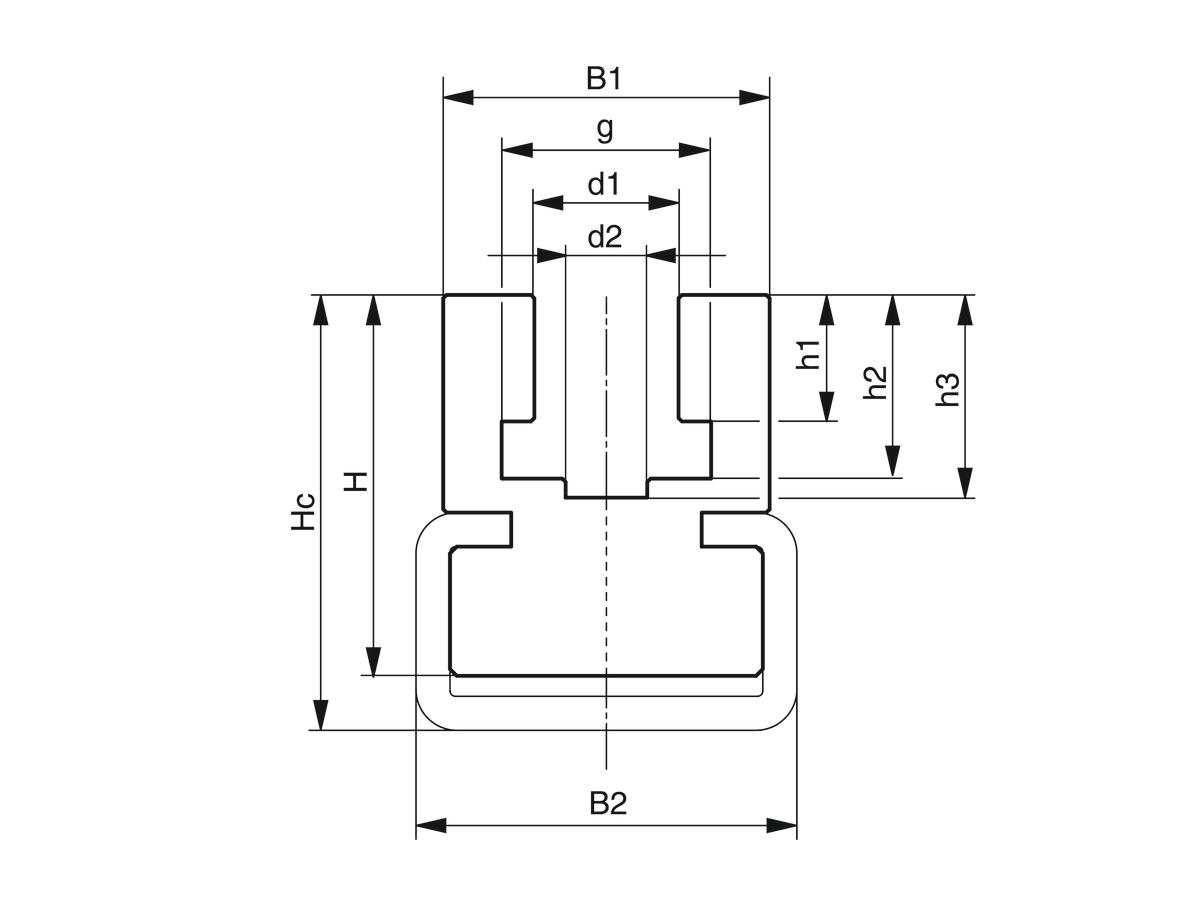

| B1 (mm) | 20.0 |
| H (mm) | 18.0 |
| B2 (mm) | 20.0 |
| weight (kg) | 0.26 |
| d2 (mm) | 4.0 |
| d1 (mm) | 6.6 |
| g (mm) | 9.4 |
| h1 (mm) | 3.6 |
| h3 (mm) | 8.0 |
| h2 (mm) | 7.0 |
| Hc (mm) | 21.0 |
| Suitable C-profile type | C3 |
Roller chain guide Type CK
Compatible Chain
Material
Length (mm)
quick_reorder Ready to ship in: 1-2 working days
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
221310025
CAD
Show in 3D
The Type K chain guide rail for vertically mounted simplex, duplex, or triplex chains with an external chain lock is manufactured from our high-quality Original "S"® green® or our recycled material "S" newCycle® green. It provides optimal stability, making it a durable solution for demanding applications.
On request, intermediate dimensions and variations in other plastics are also available.
You can find suitable steel C profiles at the bottom of this page.
| Construction type | european |
| B1 (mm) | 20.0 |
| H (mm) | 18.0 |
| B2 (mm) | 20.0 |
| weight (kg) | 0.26 |
| d2 (mm) | 4.0 |
| d1 (mm) | 6.6 |
| g (mm) | 9.4 |
| h1 (mm) | 3.6 |
| h3 (mm) | 8.0 |
| h2 (mm) | 7.0 |
| Hc (mm) | 21.0 |
| Suitable C-profile type | C3 |
