CARRYING
Stable and Secure Carrier Structures for More Support, Performance, and Efficiency
When sensitive components need to be transported, such as in the logistics industry, high-quality load and workpiece carriers are required. Carriers made from our UHMW-PE ensure safe and gentle transport of goods between process steps. Specialized materials and manufacturing processes are also suitable for the production of structural components, framework supports, and building carriers. We have already implemented various projects and offer personalized advice.
- Wide selection of high-quality plastics for the gentle transport of highly sensitive components
- Antistatic or electrically conductive properties enable spark-free operation
- The use of composite materials allows significant weight savings with maximum stability
- High durability and good resistance, even when in contact with cleaning agents and other substances

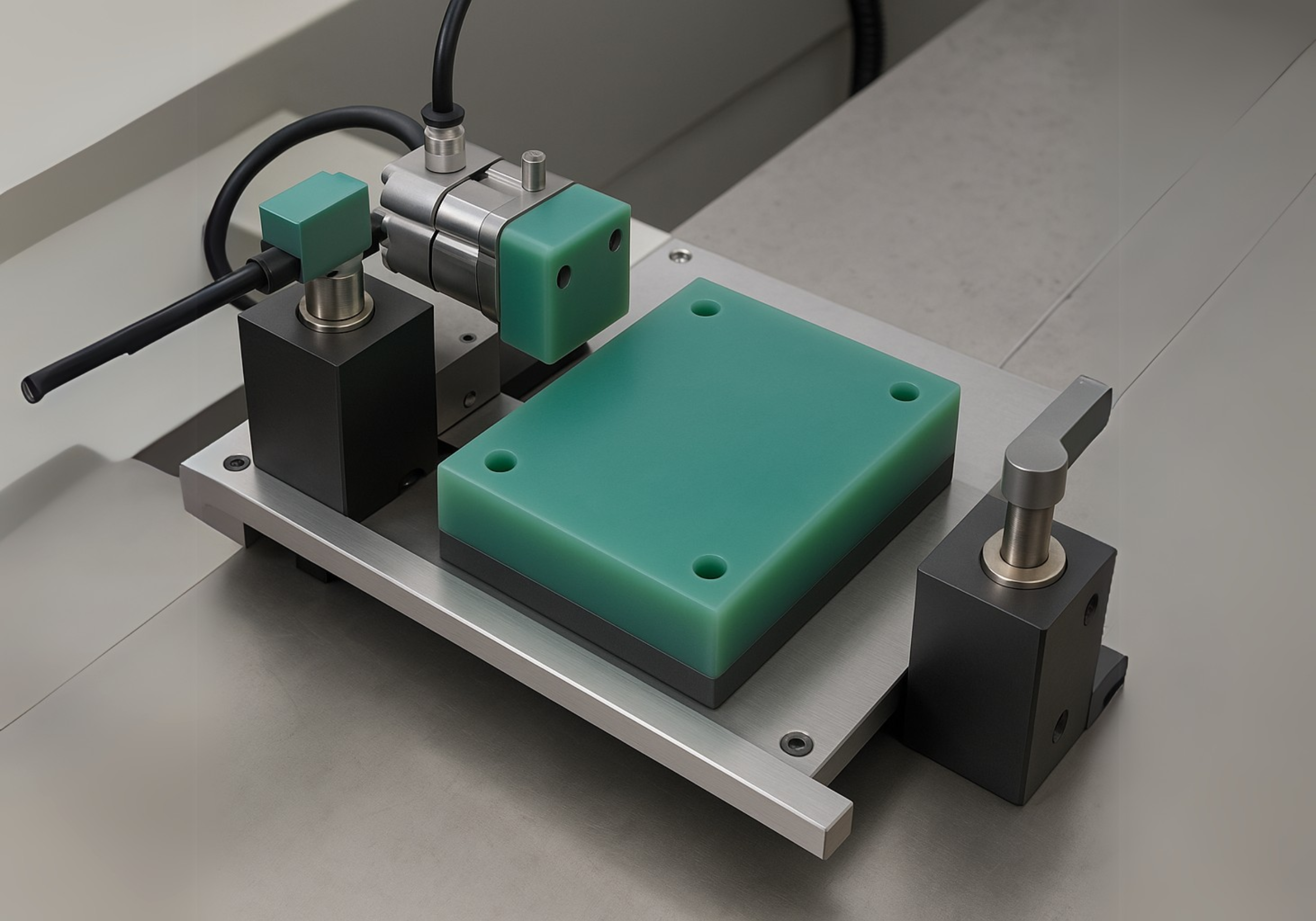

Workpiece Carrier with High Resistance
#APPLICATIONEXAMPLE
For a positioning plate for tools picked up by a robot, form stability, dimensional accuracy, and chemical resistance were the key focus areas. We manufactured a component similar to the one in the image to hold the product and transport it to the next step. Even in work steps such as immersion in solutions, the components we used exhibit high-quality properties.
Hybrid Manufactured Cross Beam
#APPLICATIONEXAMPLE
The crossbeam made from carbon fiber reinforced plastic fibers stands out with an exceptional combination of bending and torsional stiffness, as well as an extremely low weight. Compared to a similar steel version, the weight reduction is 78%, and for an aluminum structure, it is 35% – High performance in perfection.
To the application example About Fibre Composites
Structural Component Made from 13 Additively Manufactured Parts
#APPLICATIONEXAMPLE
The 3D-printed, scale model helicopter cockpit for flight simulation training provides an authentic experience and combines robustness with design. In terms of stability, this large-scale printing project is fully convincing.
Read more To Additive Manufacturing
Support Structure for Satellite Instruments
#APPLICATIONEXAMPLE
For the SLSTR (Sea and Land Surface Temperature Radiometer) measuring instrument as part of the ESA-Copernicus program, we manufactured highly precise support structures. The instrument is deployed on the Sentinel-3 satellite and provides data for Earth observation – for example, on the temperature and color of seas and land areas. The support structure consists of CFRP-aluminum sandwich panels, which, due to their low weight, high rigidity, and controlled thermal expansion, meet the extreme requirements of space. The assembly is manufactured to the highest tolerances and combines carbon, high-performance aluminum, and titanium to create a highly stable support structure that can withstand the stresses of a rocket launch.
Technical Information on Our Support Structures
You have questions about our support structure components? We will be happy to help you.
