Product number

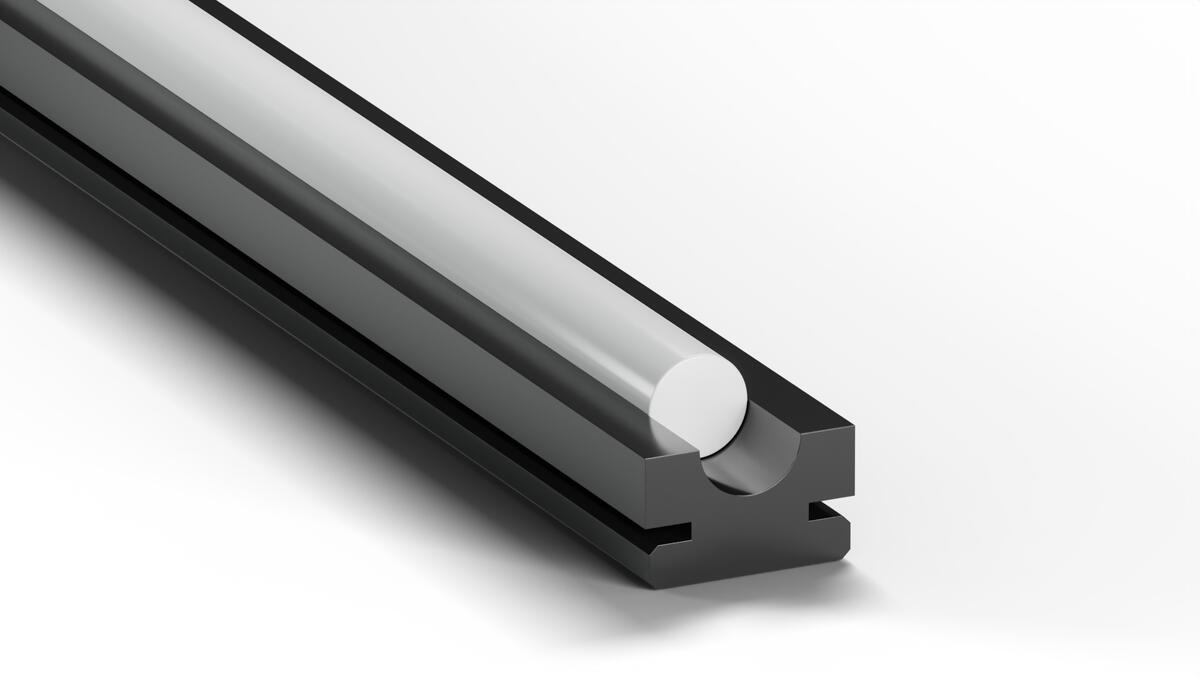

The belt guide Type RRC ensures precise guidance for round belts and is gentle on both the guide rail and the belt material. It is made from UHMW-PE Original "S"® black and is compatible with a wide range of round belts. It is available in our standard length of 2000 mm or as a custom-cut length.

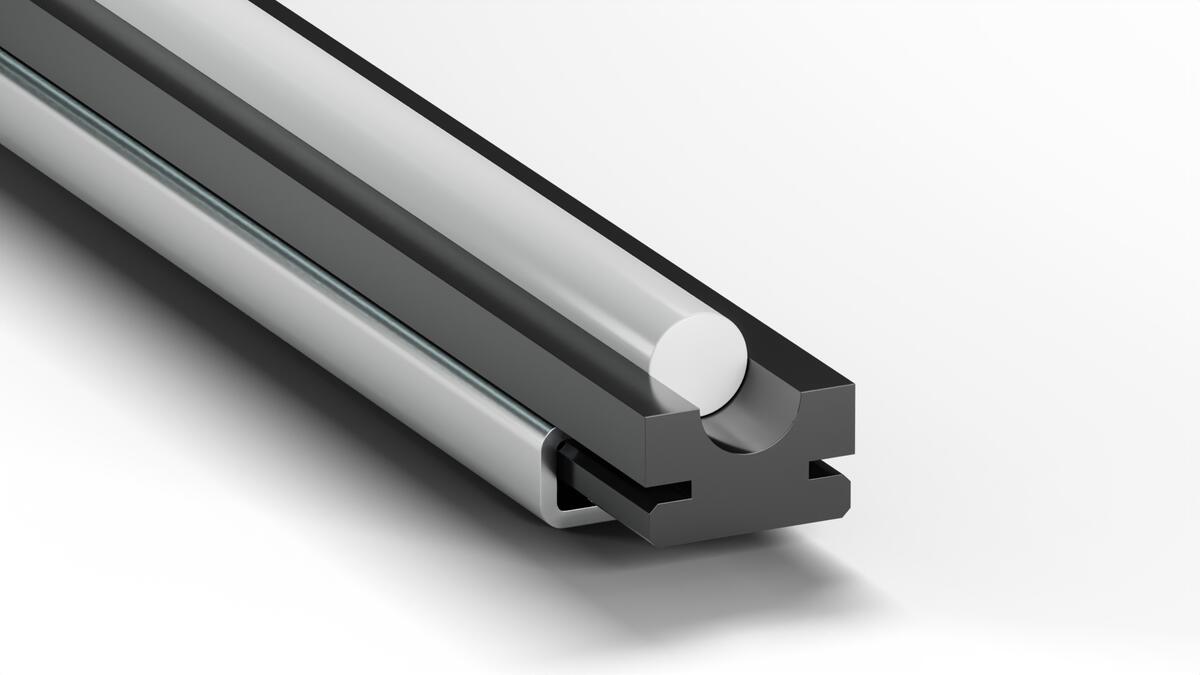

It has no negative tolerances in length or profile cross-section, can be used in explosive environments, and is optionally available with a steel C profile.

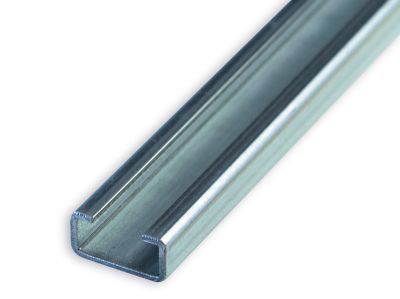

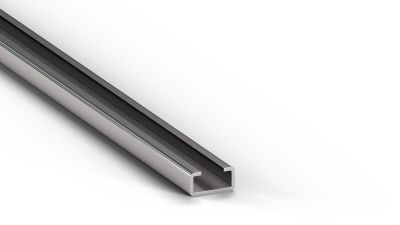

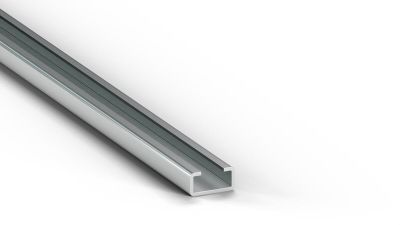

You can find suitable steel C profiles at the bottom of this page.
| H (mm) | 10.0 |
| B1 (mm) | 20.0 |
| Suitable C-profile type | C3 |
| Hc (mm) | 15.0 |
| r (mm) | 3.0 |
| Material | Original "S"® black AST |
| h (mm) | 3.0 |
Belt guide Type RRC
Belt sliding guide for round belts (suitable for steel C profile)
Matching belt
Length (mm)
B2 (mm)
Optional Profile Customization
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Login
Product number
The belt guide Type RRC ensures precise guidance for round belts and is gentle on both the guide rail and the belt material. It is made from UHMW-PE Original "S"® black and is compatible with a wide range of round belts. It is available in our standard length of 2000 mm or as a custom-cut length.
It has no negative tolerances in length or profile cross-section, can be used in explosive environments, and is optionally available with a steel C profile.
You can find suitable steel C profiles at the bottom of this page.
| H (mm) | 10.0 |
| B1 (mm) | 20.0 |
| Suitable C-profile type | C3 |
| Hc (mm) | 15.0 |
| r (mm) | 3.0 |
| Material | Original "S"® black AST |
| h (mm) | 3.0 |
