Note: The product shown is for illustration purposes only.
Product number
283011001

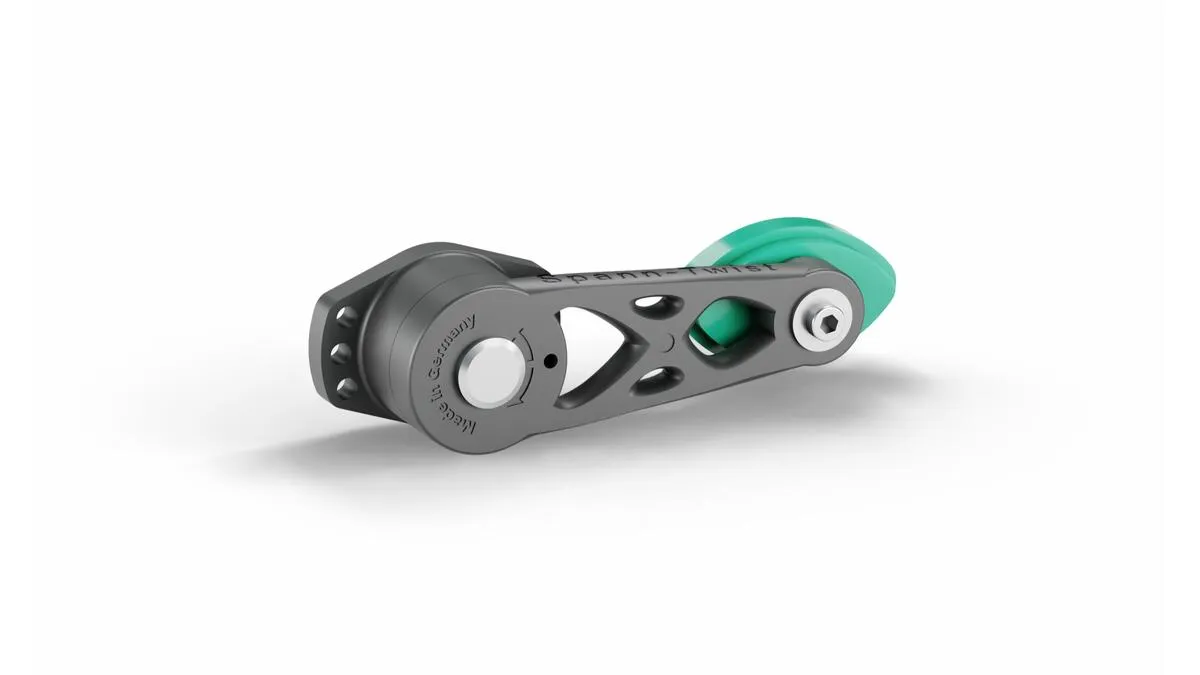

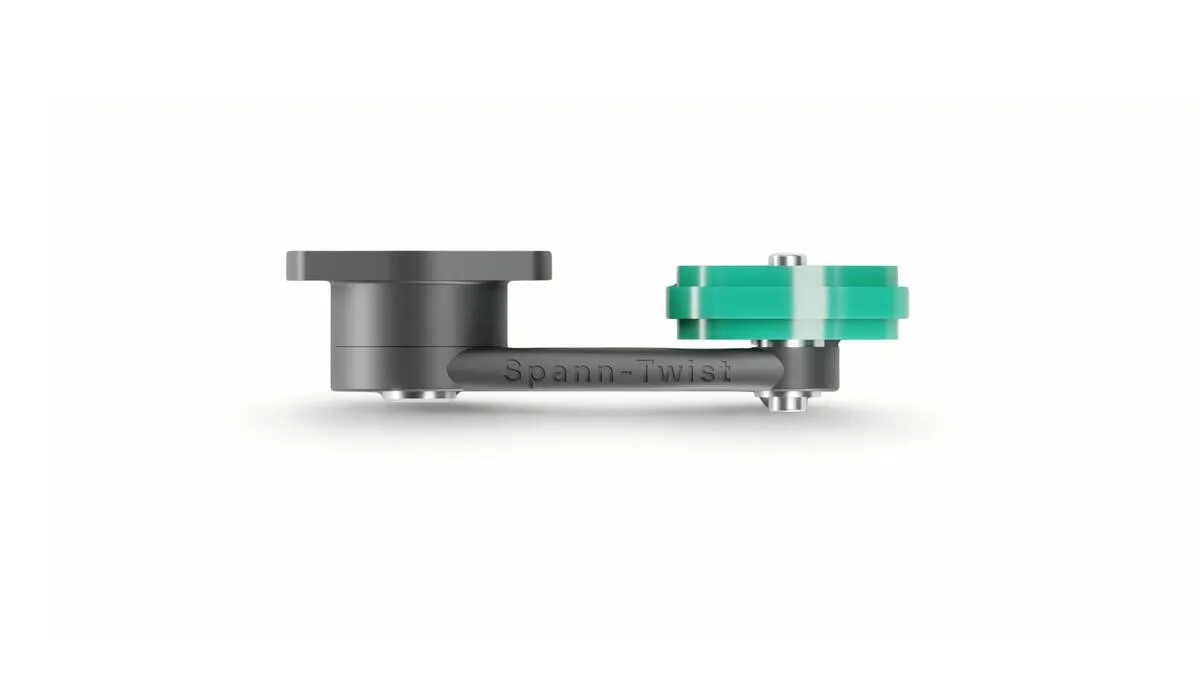

The Spann‑Twist is a lightweight chain tensioner with an elliptical profile, combining 3D‑printed design with Original S® material for excellent sliding properties. Its compact design, large tensioning range, and curved lever movement ensure uniform force distribution, reliable chain guidance, and easy installation – even in confined spaces.
The technical data sheet as well as the assembly instructions for tensioning systems can be found in the menu under the “Downloads” section.
| Construction type | european |
| tensioning force | light |
| weight (kg) | 0.25 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 40° / 60mm |
| Clamping force according to number of springs (N) | 55 - 0 |

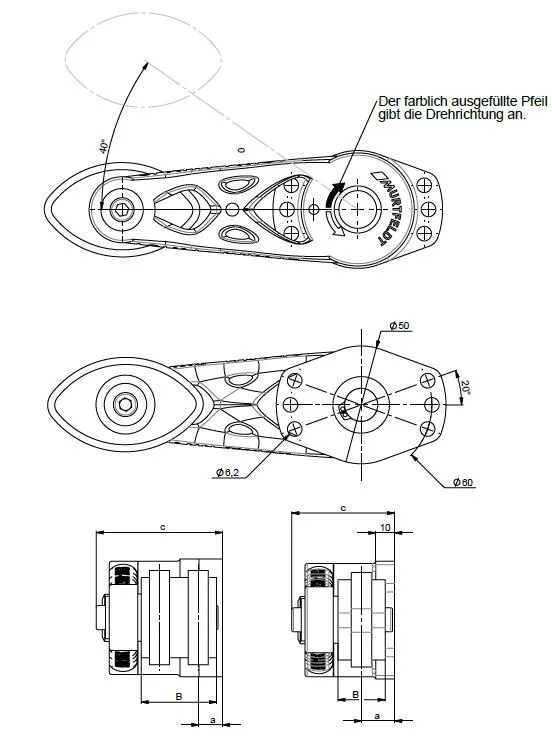

| Width B (mm) | 20.0 |
| Guide type | elliptical profile |
| Sliding profile material | Original "S"® green |
| Material – Enclosure | PA 2200 |
| Hinweistext | Delivery for quantities of 25 pieces or more is arranged individually. |
| Width referenced to the center of the chain roller (a) | 12.8 |
| Width c | 41.5 |
| Lever Arm Material | PA 2200 |
Spann-Twist
Compatible Chain
rotation direction
Profile shape
quick_reorder Ready to ship in: 3-5 working days
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
283011001
The Spann‑Twist is a lightweight chain tensioner with an elliptical profile, combining 3D‑printed design with Original S® material for excellent sliding properties. Its compact design, large tensioning range, and curved lever movement ensure uniform force distribution, reliable chain guidance, and easy installation – even in confined spaces.
The technical data sheet as well as the assembly instructions for tensioning systems can be found in the menu under the “Downloads” section.
| Construction type | european |
| tensioning force | light |
| weight (kg) | 0.25 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 40° / 60mm |
| Clamping force according to number of springs (N) | 55 - 0 |
| Width B (mm) | 20.0 |
| Guide type | elliptical profile |
| Sliding profile material | Original "S"® green |
| Material – Enclosure | PA 2200 |
| Hinweistext | Delivery for quantities of 25 pieces or more is arranged individually. |
| Width referenced to the center of the chain roller (a) | 12.8 |
| Width c | 41.5 |
| Lever Arm Material | PA 2200 |
