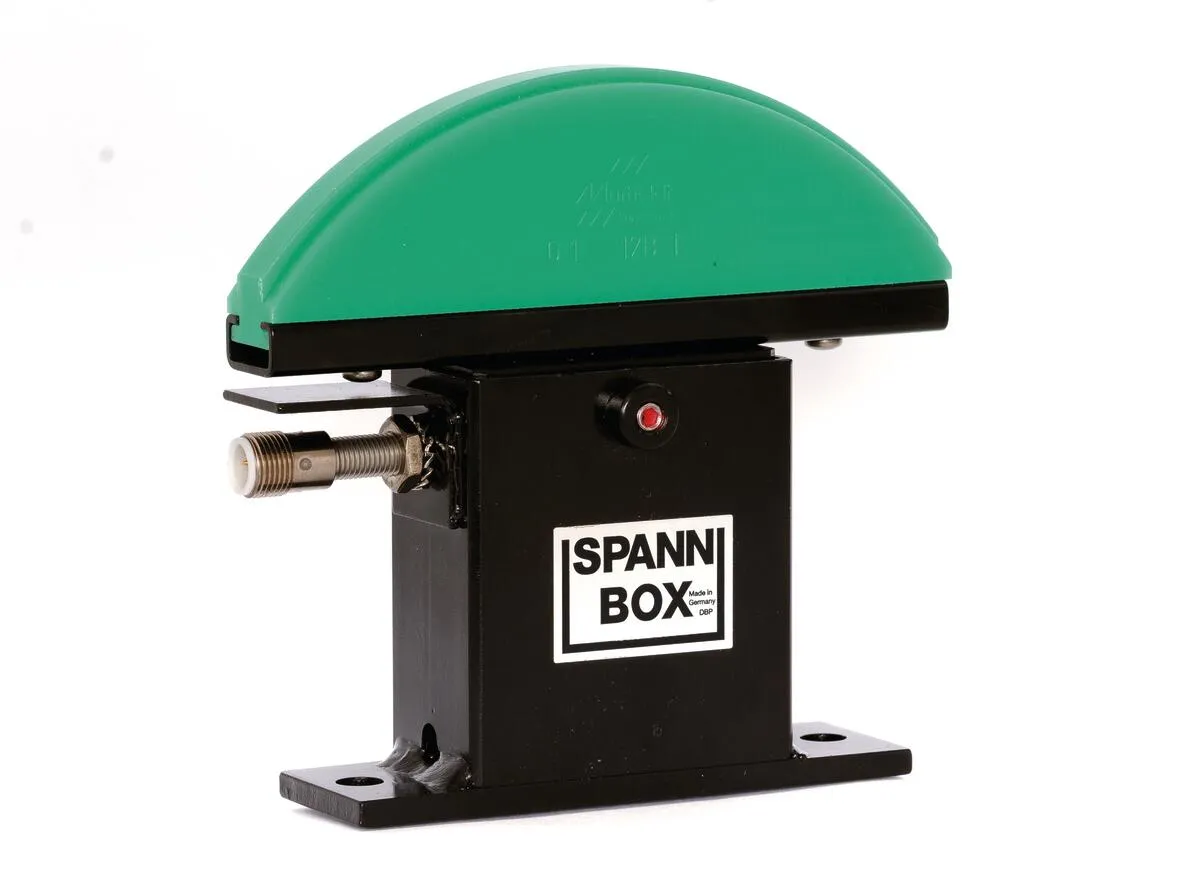

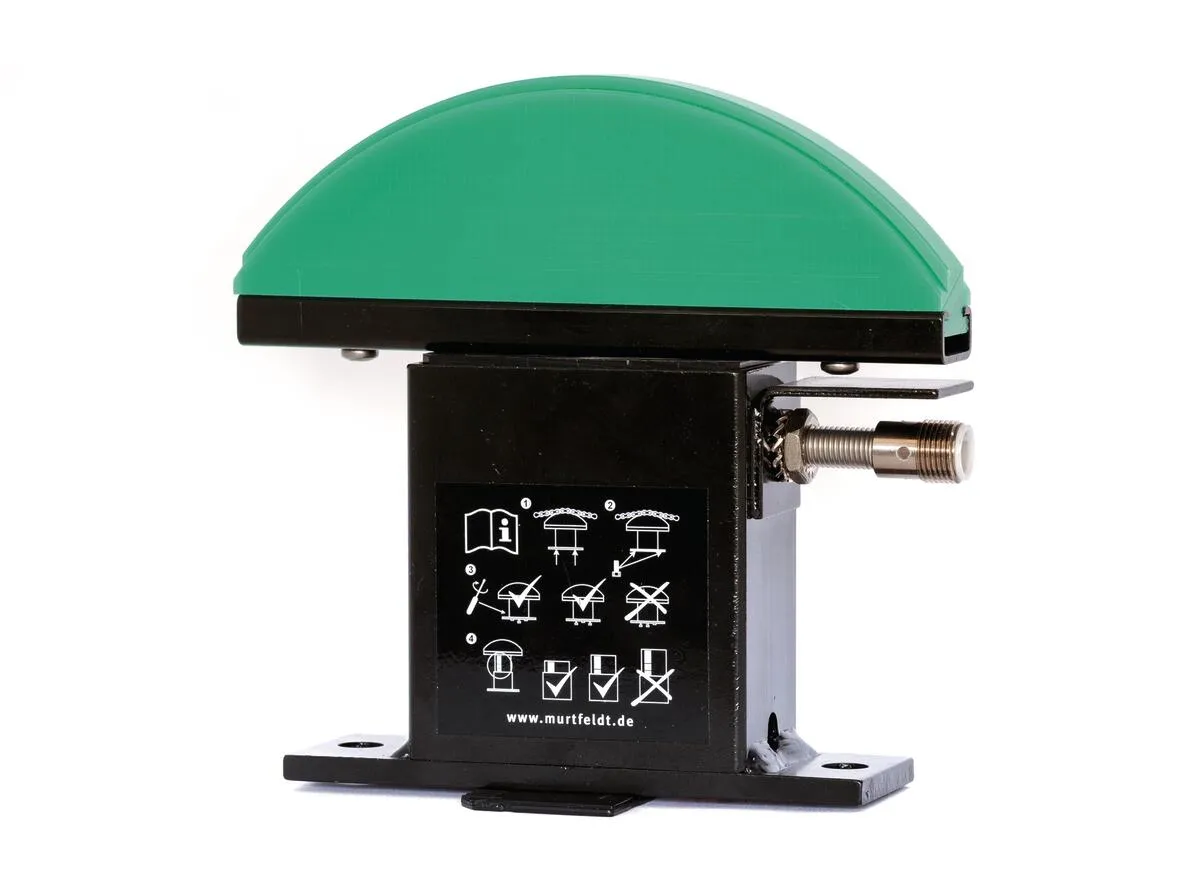

The Spann-Box® Type 1 with an inductive sensor ensures precise, contactless position monitoring and triggers a signal when the optimal tension range is exceeded. It is ideal for environments with high wear or contamination risks.

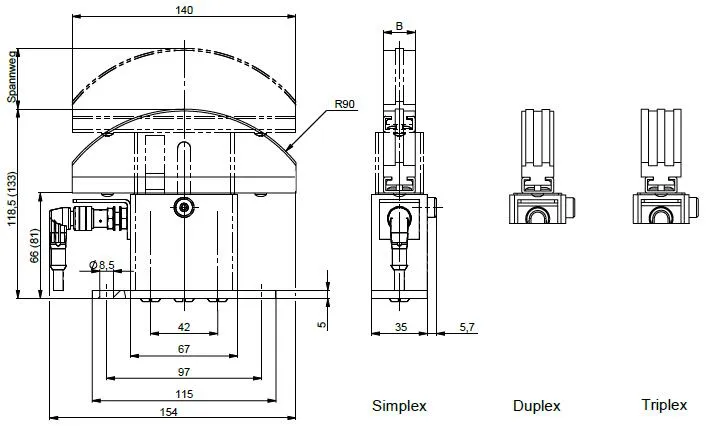

The profile width is 20 mm, and you can choose between a short or long housing. Inside, there are three springs whose tension force can be individually adjusted to "light" or "heavy" to ensure the ideal tension pressure for your specific application. Special versions are available upon request.
