Product number
The Spann-Box® Type 0 from MURTFELDT is the optimal choice for applications with limited side space, thanks to its particularly slim housing design. The corrosion-resistant plastic housing ensures high durability, even under extreme conditions. For additional robustness, a stainless steel version is available upon request, requiring only a minimal extension of the delivery time.
Flexibility: The Spann-Box® is also available with a 90° rotated upper section to perfectly adapt to various installation situations.
Customization options:
Roller widths: 20 mm, 30 mm, or 40 mm
Profile shapes: Cylindrical, crowned, as well as options for round belts, V-belts according to DIN 2215, or flat belts
| Clamping path (mm) | 40 |
| Guide type | tensioning roller |
| Enclosure material | Plastic |
| Suitable mounting brackets | 281090087 |
| Roll width (mm) | 30.0 |
| Clamping force according to number of springs (N) | 132-60 |

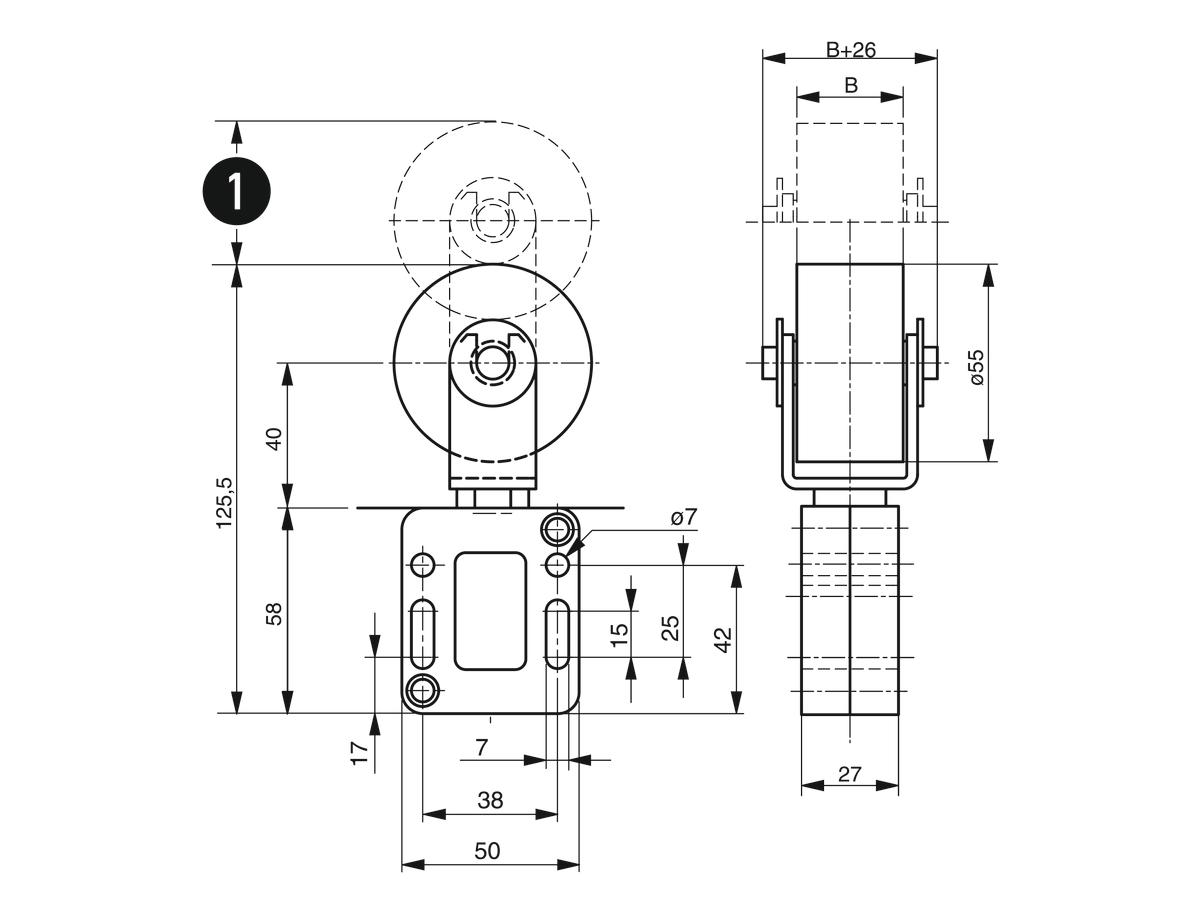

Spann-Box® size 0 as belt tensioner
Slimmest belt tensioner with roller for round belts and V-belts according to DIN 2215 or flat belts
Matching belt
tensioning force
Roll vshape
