Product number
221120026

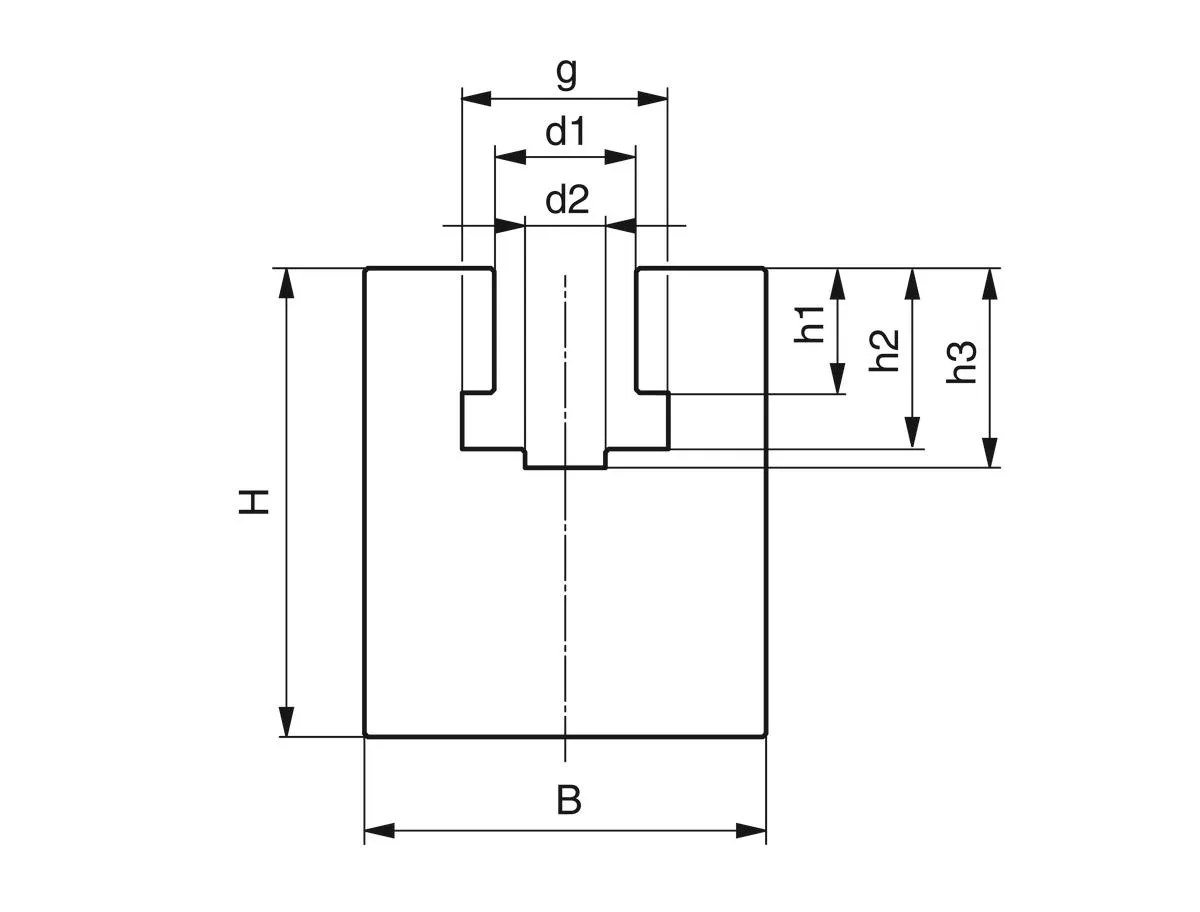

CAD
Show in 3D

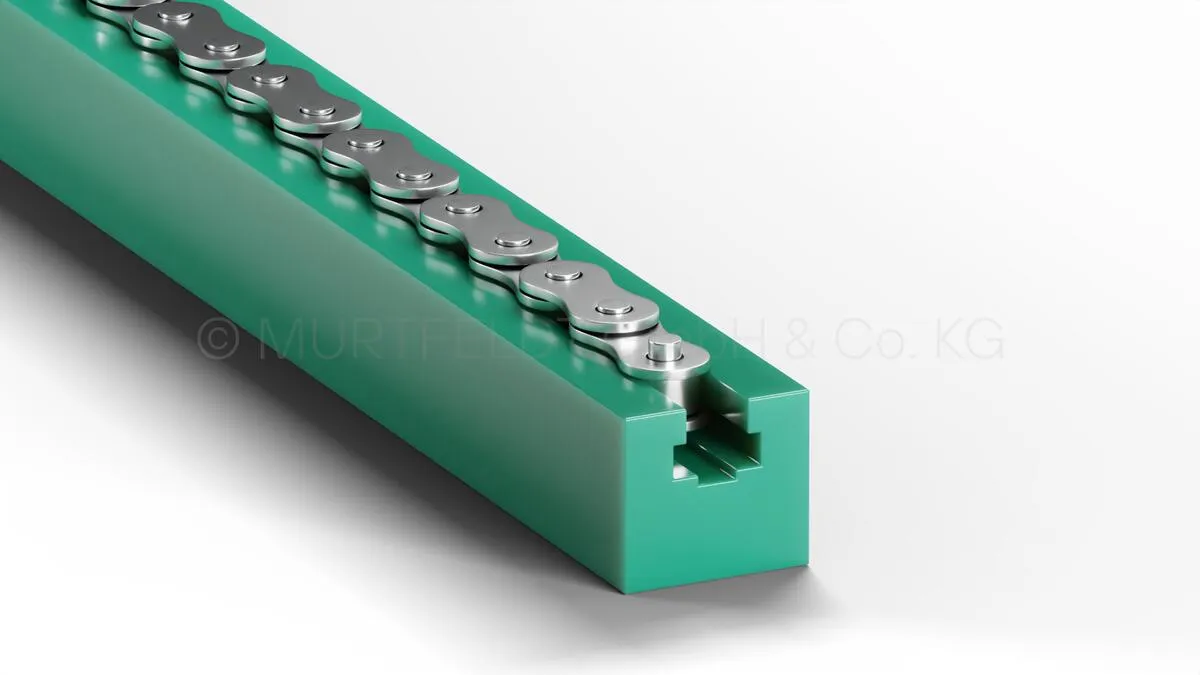

The TYPE K chain guide rail for vertically mounted simplex, duplex, or triplex chains with an external chain lock is manufactured from our high-quality Original S® green or our recycled material S® NewCycle® green. It provides optimal stability, making it a durable solution for demanding applications.
On request, intermediate dimensions and variations in other plastics are also available.
| Construction type | european |
| H (mm) | 25.0 |
| Weight (kg) | 0.84 |
| Width B (mm) | 20.0 |
| Width d2 (mm) | 4.0 |
| Width d1 (mm) | 6.6 |
| Width g (mm) | 9.4 |
| Height h1 (mm) | 3.6 |
| Height h3 (mm) | 8.0 |
| Height h2 (mm) | 7.0 |
Roller chain guide TYPE K
Compatible Chain
Material
Length (mm)
The actual supplied length of standard guides may differ slightly from the nominal dimension due to the manufacturing process. If an exact length is required, please order a cut length version.
