Note: The product shown is for illustration purposes only.
Product number
221210023
CAD
Show in 3D

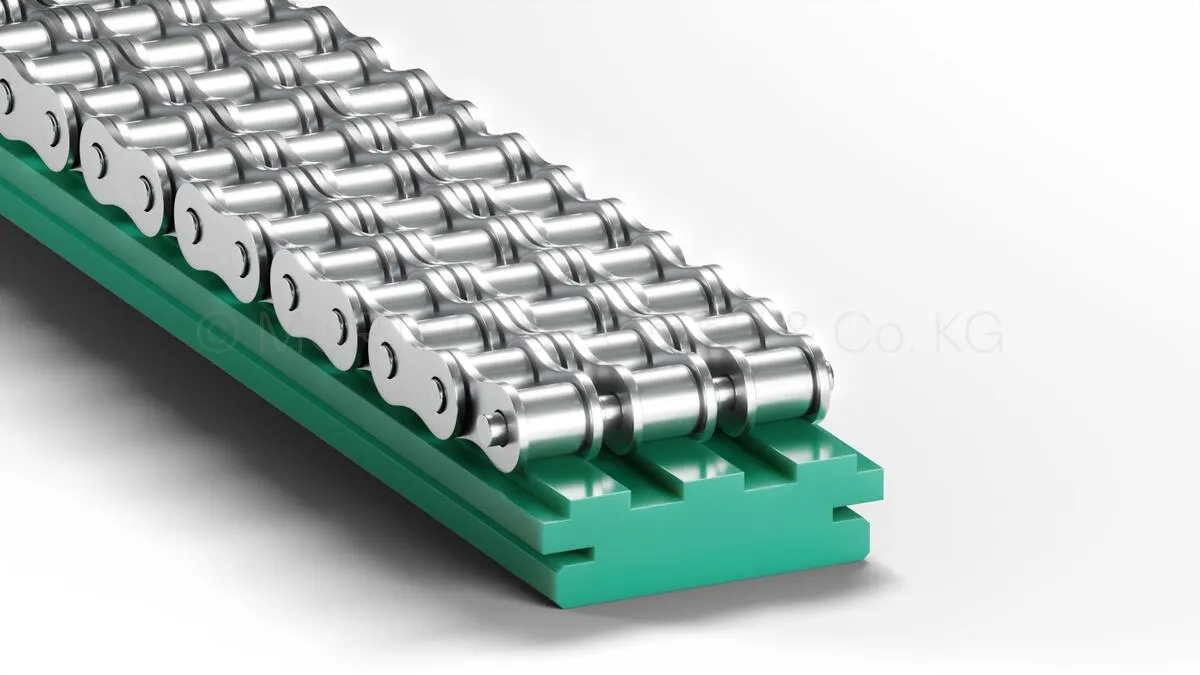

The chain guide rail for triplex chains is made from our Original S® green, which is characterized by precise tolerances in the plastic profile cross-section, as well as optimal performance and durability. It has been specially developed for applications where longevity is crucial.
Reliable: The guide rail is in stock as standard and quickly available.
Customizable: Upon request, we offer intermediate dimensions and alternative materials.

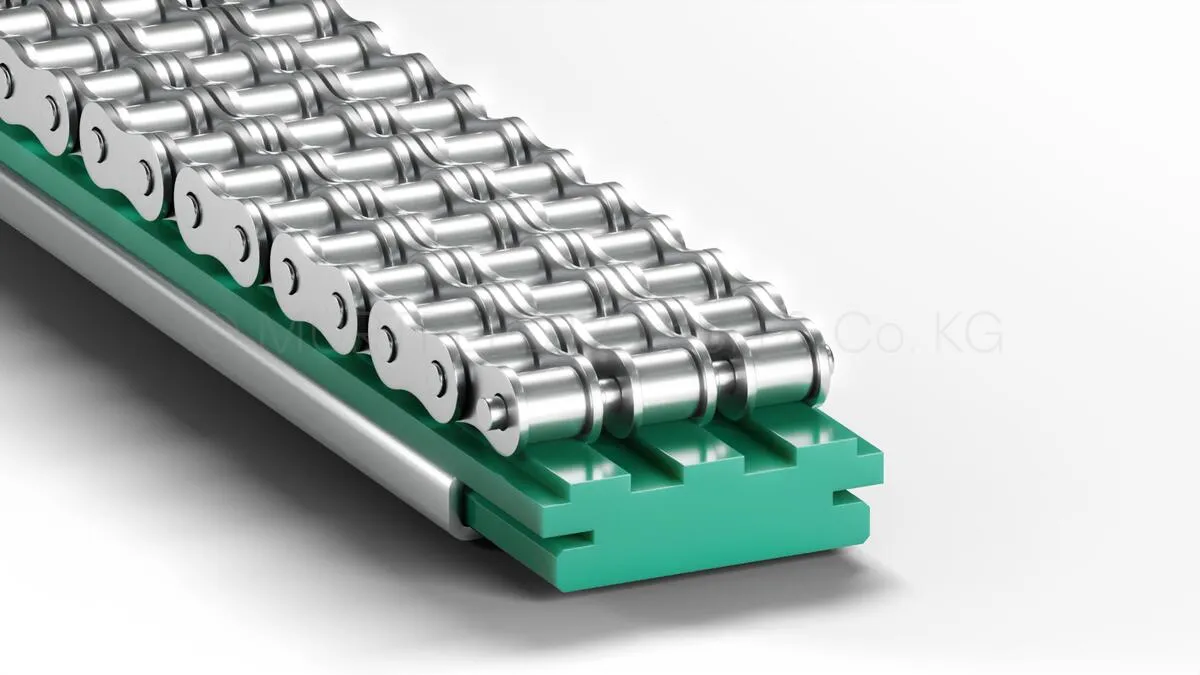

You can find suitable steel C profiles at the bottom of this page.

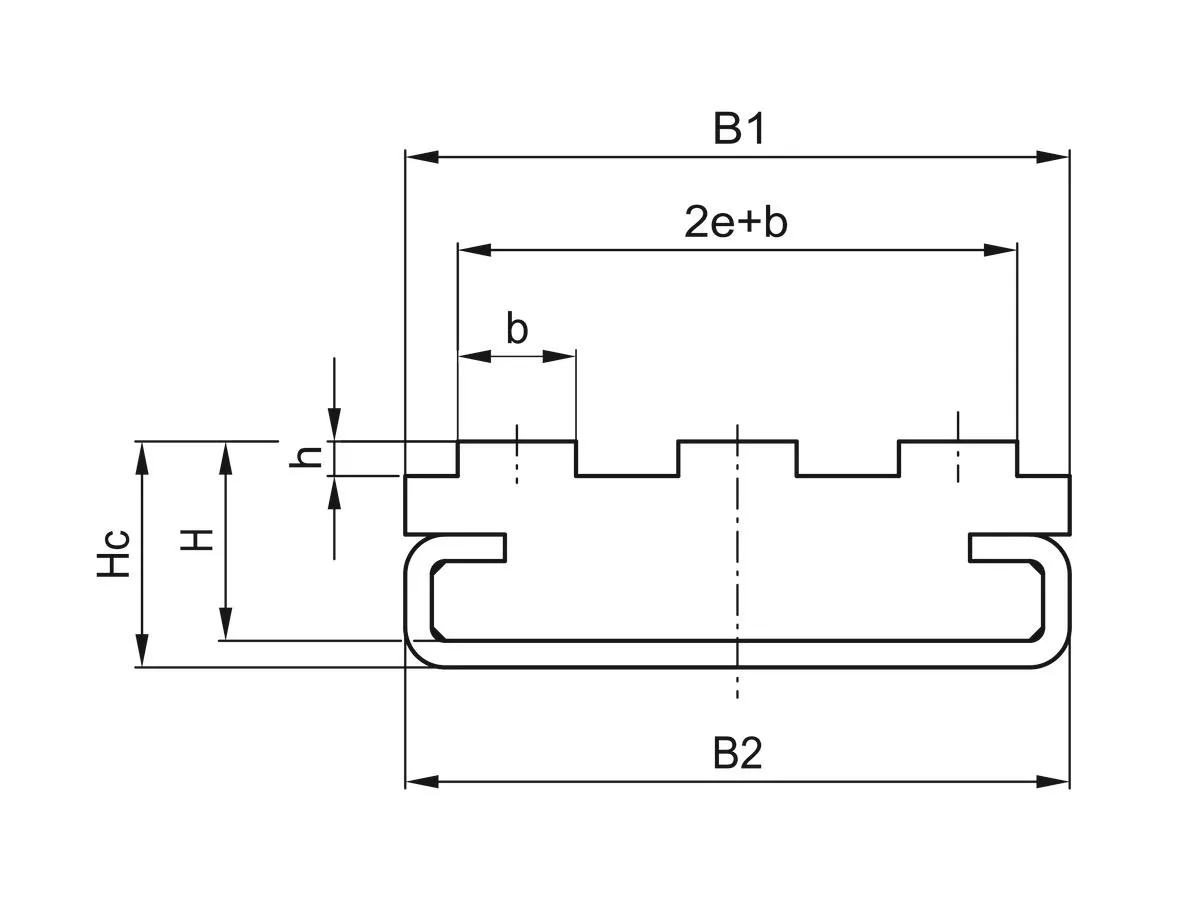

| Construction type | european |
| B1 (mm) | 30.0 |
| H (mm) | 15.0 |
| Width B2 (mm) | 28.0 |
| weight (kg) | 0.66 |
| Width b (mm) | 5.3 |
| Height h (mm) | 1.5 |
| Calculated width 2e+b (mm) | 25.9 |
| Suitable C-profile type | C5 |
| Hc (mm) | 20.0 |
Roller chain guide TYPE CT-Triplex
Compatible Chain
Material
Length (mm)
quick_reorder Ready to ship in: 1 working day
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
221210023
CAD
Show in 3D
The chain guide rail for triplex chains is made from our Original S® green, which is characterized by precise tolerances in the plastic profile cross-section, as well as optimal performance and durability. It has been specially developed for applications where longevity is crucial.
Reliable: The guide rail is in stock as standard and quickly available.
Customizable: Upon request, we offer intermediate dimensions and alternative materials.
You can find suitable steel C profiles at the bottom of this page.
| Construction type | european |
| B1 (mm) | 30.0 |
| H (mm) | 15.0 |
| Width B2 (mm) | 28.0 |
| weight (kg) | 0.66 |
| Width b (mm) | 5.3 |
| Height h (mm) | 1.5 |
| Calculated width 2e+b (mm) | 25.9 |
| Suitable C-profile type | C5 |
| Hc (mm) | 20.0 |
