Product number
281050001
CAD
Show in 3D

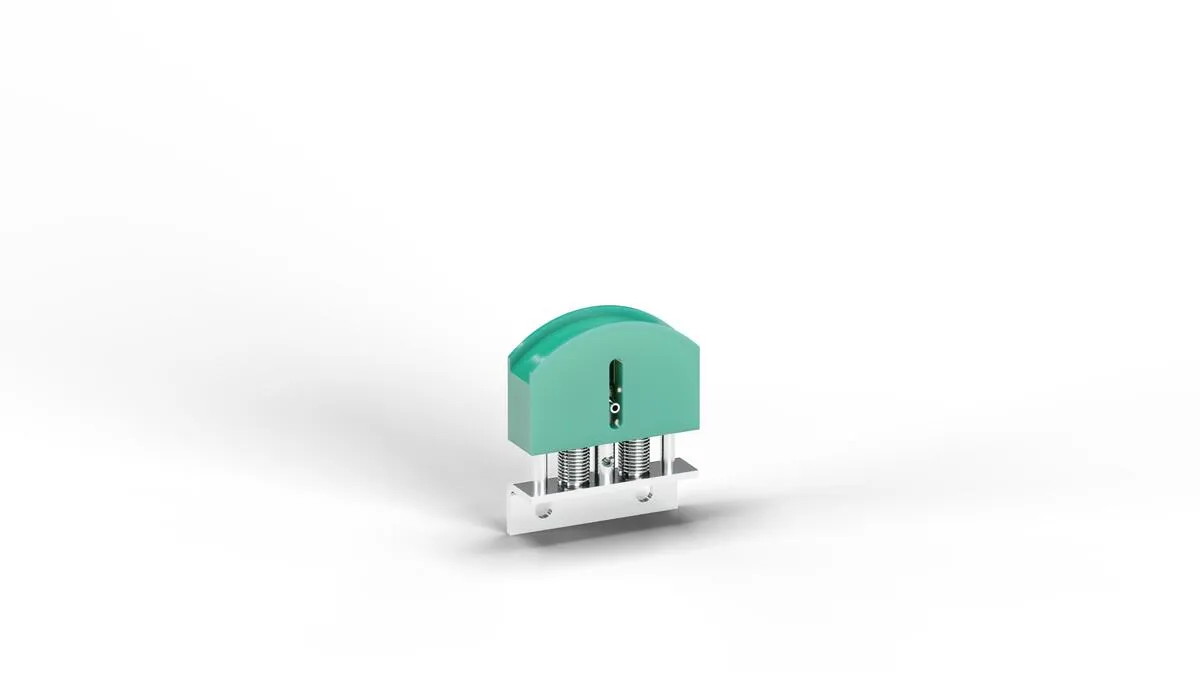

The smallest automatic chain tensioner in our range is the mini tensioner with curved profile. It is suitable for use with smaller chains up to 5/8 inch pitch. The mini tensioner is the smart solution for all applications where space is limited but maximum reliability is required. Whether in bicycles, machines or mobile systems, it ensures constant chain tension, reduces maintenance and extends the service life of the chain.

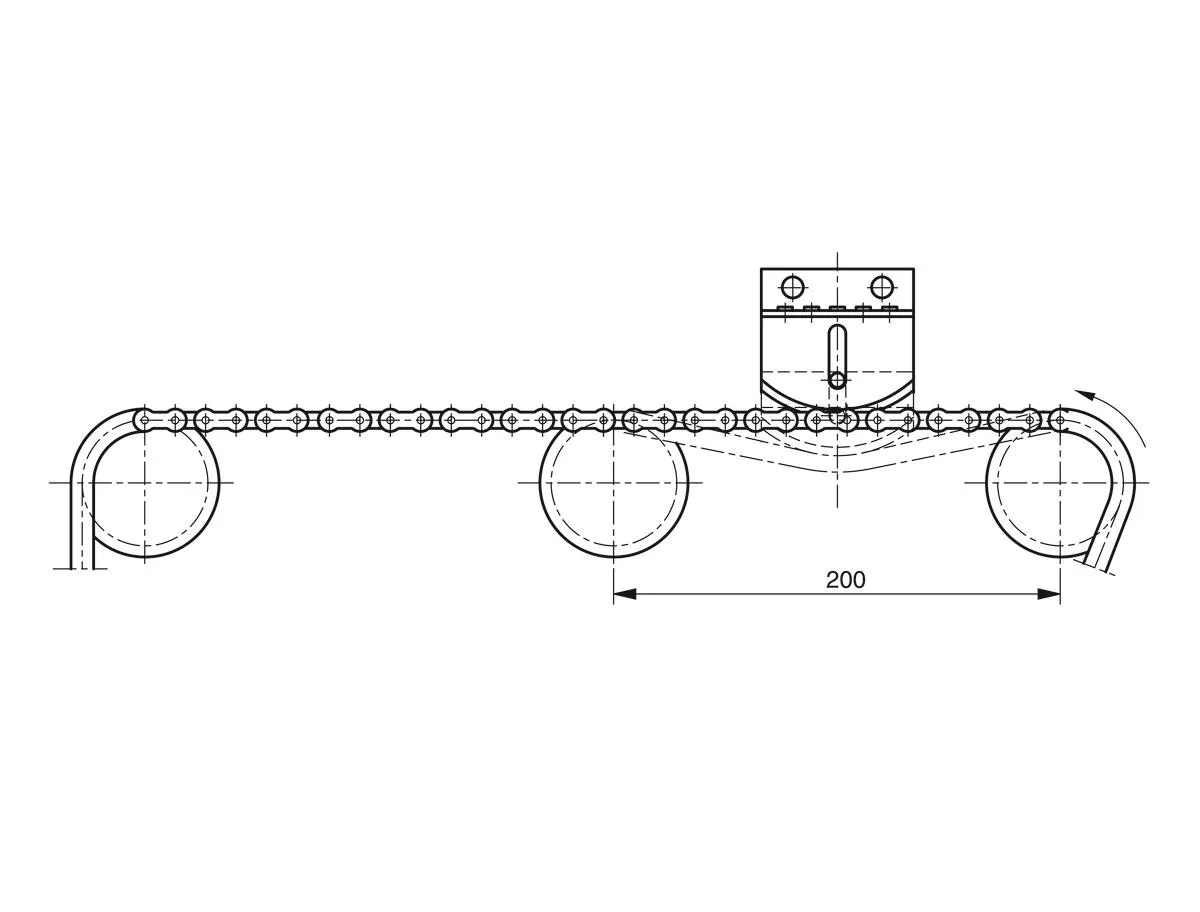

The mini tensioner is easy to install using screws on the robust angle base. For ideal functionality, a maximum centre distance of 200 mm is recommended.
Thanks to its compact design, it is particularly suitable for tight installation spaces. Two selectable spring strengths allow precise adjustment to different loads – from smooth-running city bikes to heavily loaded transport solutions.
Typical applications – but by no means exhaustive:
• Bicycle applications such as e-cargo bikes, cargo bikes, tandems or fleet bikes
• Machines and systems with limited installation space
• Conveyor technology and compact drive systems
• Mobile systems and special vehicles
• OEM solutions with a focus on maintenance-free operation and durability
| Construction type | european |
| weight (kg) | 0.07 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 16 |
| Clamping force according to number of springs (N) | 19 - 13 |
| Guide type | arc segment profile |
| Sliding profile material | Original "S"® green |
| Profile width (mm) | 15.0 |
| Material – Enclosure | Stainless steel |
Mini tensioner
Compatible Chain
tensioning force
Profile shape
quick_reorder Ready to ship in: 1-2 working days
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
281050001
CAD
Show in 3D
The smallest automatic chain tensioner in our range is the mini tensioner with curved profile. It is suitable for use with smaller chains up to 5/8 inch pitch. The mini tensioner is the smart solution for all applications where space is limited but maximum reliability is required. Whether in bicycles, machines or mobile systems, it ensures constant chain tension, reduces maintenance and extends the service life of the chain.
The mini tensioner is easy to install using screws on the robust angle base. For ideal functionality, a maximum centre distance of 200 mm is recommended.
Thanks to its compact design, it is particularly suitable for tight installation spaces. Two selectable spring strengths allow precise adjustment to different loads – from smooth-running city bikes to heavily loaded transport solutions.
Typical applications – but by no means exhaustive:
• Bicycle applications such as e-cargo bikes, cargo bikes, tandems or fleet bikes
• Machines and systems with limited installation space
• Conveyor technology and compact drive systems
• Mobile systems and special vehicles
• OEM solutions with a focus on maintenance-free operation and durability
| Construction type | european |
| weight (kg) | 0.07 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 16 |
| Clamping force according to number of springs (N) | 19 - 13 |
| Guide type | arc segment profile |
| Sliding profile material | Original "S"® green |
| Profile width (mm) | 15.0 |
| Material – Enclosure | Stainless steel |
