Product number
281040001
CAD
Show in 3D
When there is not enough space for a conventional tensioning system beneath the chain, the Spann-Boy® is used. It is mounted next to the chain, requiring significantly less space. Our Spann-Boy® model is always supplied with a robust steel housing, with durability and reliable operation as top priorities. As a proven model, the Spann-Boy® has been in industrial use for decades and has been sold thousands of times.
Two different versions are available: with curved profile and with sprocket. The Spann-Boy® is equipped with a compression spring that can be selected in either “light” or “heavy” depending on the required tensioning force. The integrated holes and slots in the housing allow for easy installation and offer flexible adjustment options for precise retensioning.
With curved profile: available for simplex, duplex and triplex chains.
| Construction type | european |
| tensioning force | light |
| weight (kg) | 0.46 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 40 |
| Clamping force according to number of springs (N) | 58 - 32 |
| Guide type | arc segment profile |
| a | 10.0 |
| Sliding profile material | Original "S"® green |
| Profile width (mm) | 20.0 |

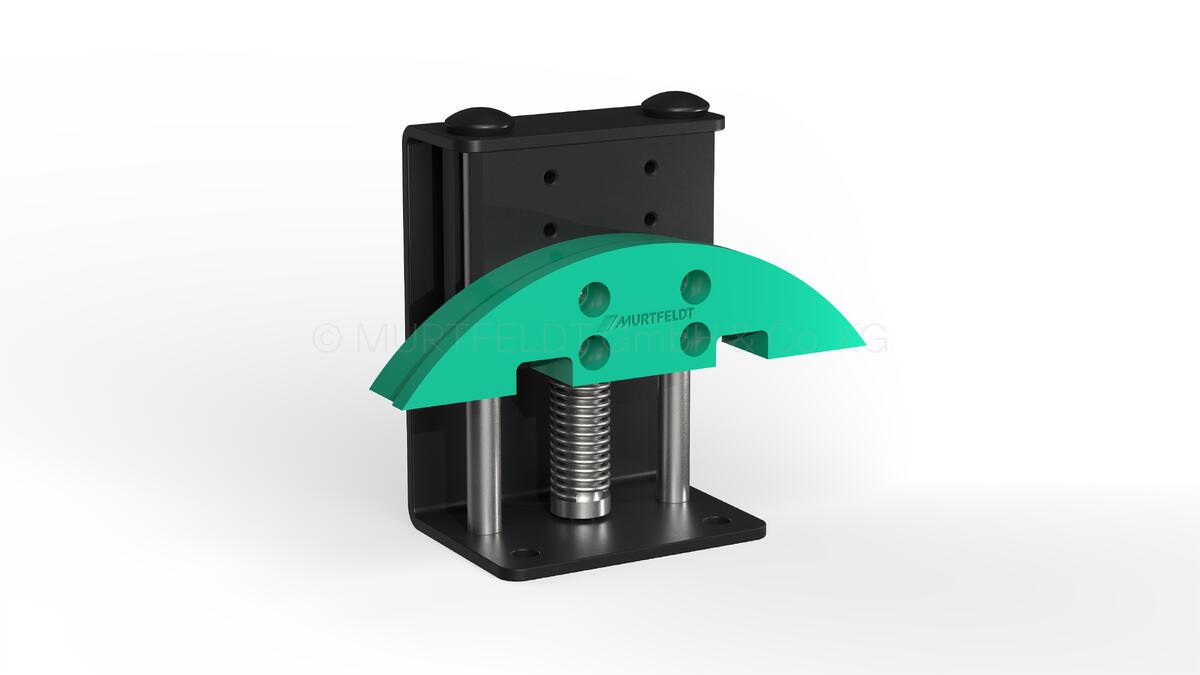

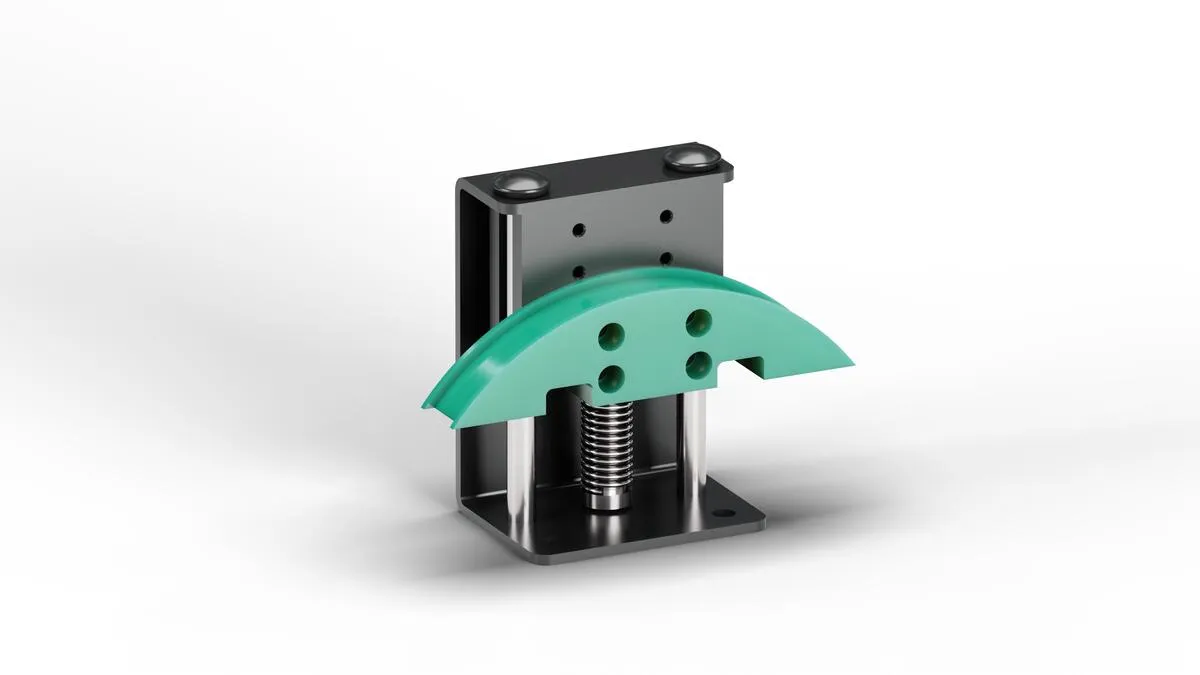

Chain tensioner Spann-Boy® with arc segment profile
Compatible Chain
Profile shape
Material – Enclosure
quick_reorder Ready to ship in: 1-2 working days
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
281040001
CAD
Show in 3D
When there is not enough space for a conventional tensioning system beneath the chain, the Spann-Boy® is used. It is mounted next to the chain, requiring significantly less space. Our Spann-Boy® model is always supplied with a robust steel housing, with durability and reliable operation as top priorities. As a proven model, the Spann-Boy® has been in industrial use for decades and has been sold thousands of times.
Two different versions are available: with curved profile and with sprocket. The Spann-Boy® is equipped with a compression spring that can be selected in either “light” or “heavy” depending on the required tensioning force. The integrated holes and slots in the housing allow for easy installation and offer flexible adjustment options for precise retensioning.
With curved profile: available for simplex, duplex and triplex chains.
| Construction type | european |
| tensioning force | light |
| weight (kg) | 0.46 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 40 |
| Clamping force according to number of springs (N) | 58 - 32 |
| Guide type | arc segment profile |
| a | 10.0 |
| Sliding profile material | Original "S"® green |
| Profile width (mm) | 20.0 |
