Product number
281260009
When there is not enough space for a conventional tensioning system beneath the chain, the Spann-Boy® TS is used. The installation takes place beside the chain, requiring significantly less space. Our Spann-Boy® TS model is always supplied with a robust steel housing, with durability and reliable operation being the top priorities.
Two different versions are available: with curved profile and with sprocket. The Spann-Boy® TS is equipped with a light and a heavy spring, which can be released individually or together depending on the required tensioning force (light, heavy, extra heavy). The housing features integrated holes and elongated slots, allowing for easy installation and offering flexible adjustment options for precise re-tensioning.
With sprocket: For simplex chains.
| Construction type | european |
| tensioning force | light |
| tensioning force | heavy |
| tensioning force | extra heavy |
| Suitable mounting brackets | 281090091 |
| Clamping path (mm) | 40 |
| Clamping force according to number of springs (N) | 65 - 33 |
| Clamping force according to number of springs (N) | 125 - 63 |
| Clamping force according to number of springs (N) | 190 - 96 |
| Guide type | sprocket |

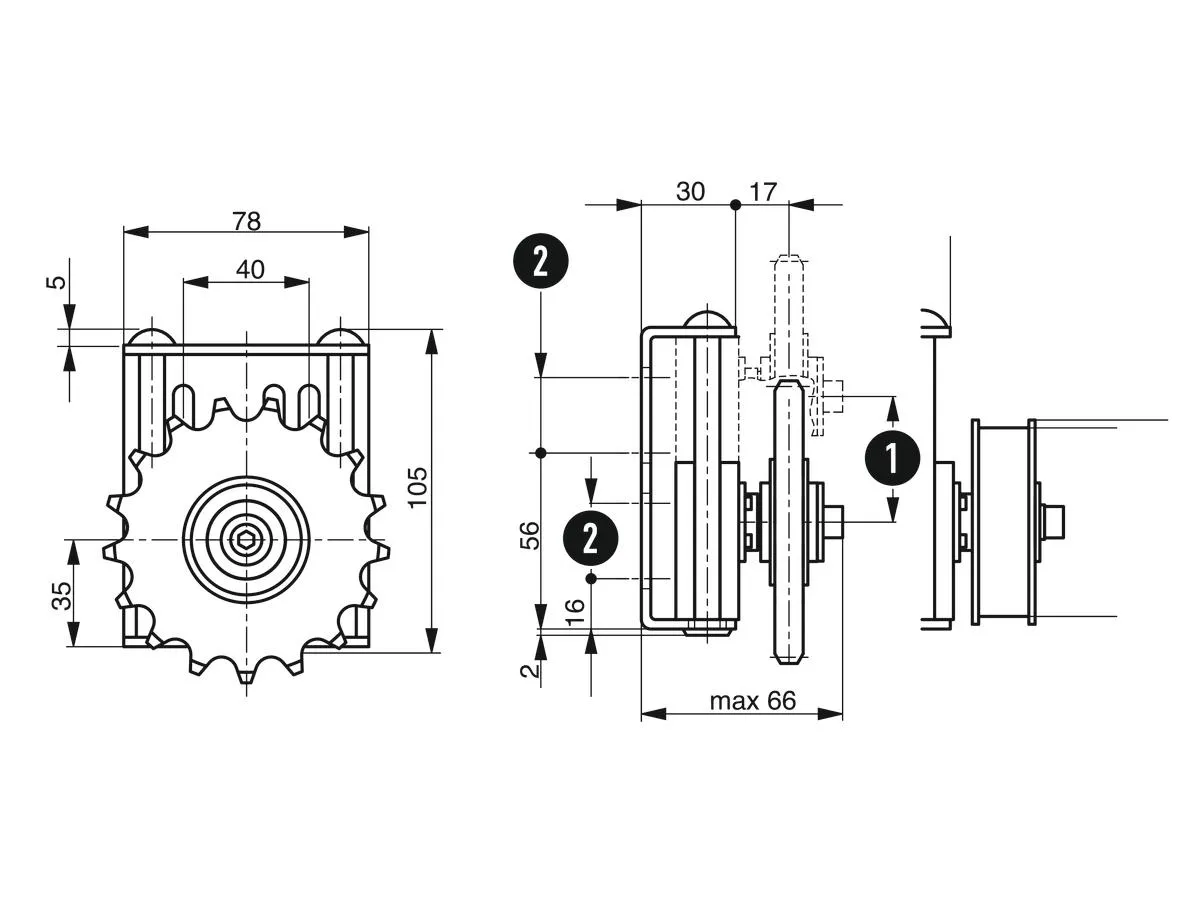

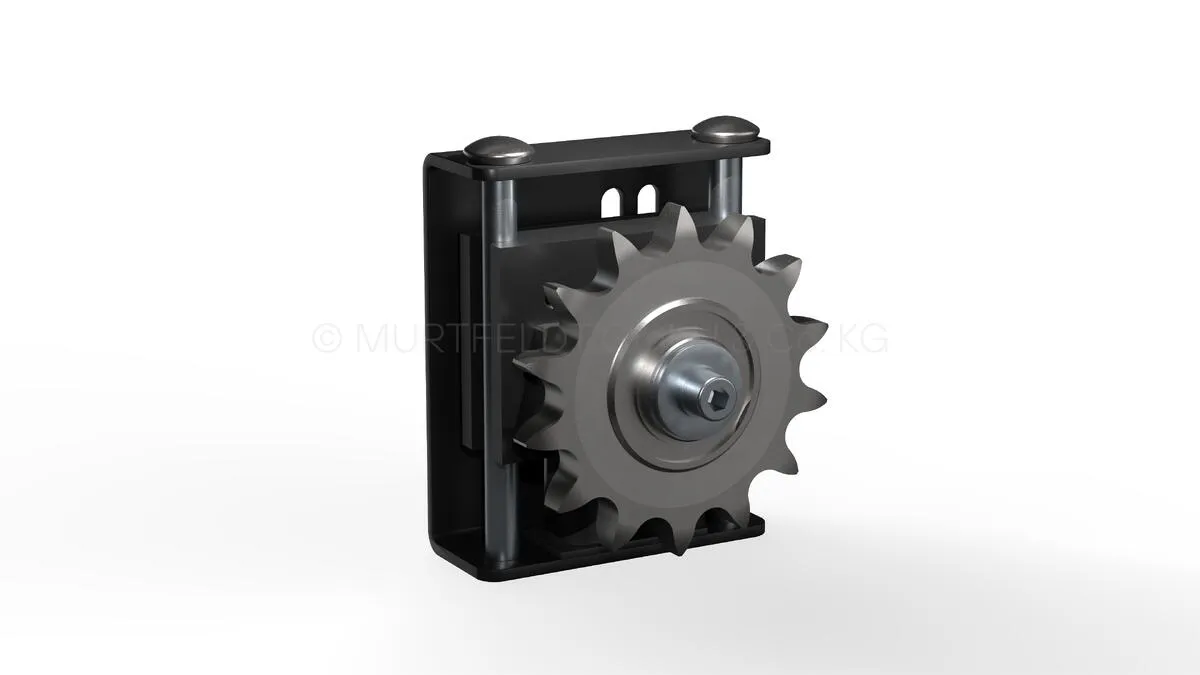

Chain tensioner Spann-Boy® TS with sprocket
Space-saving tensioning system for lateral mounting on the chain
Matching chain
Enclosure material
Number of teeth
quick_reorder Delivery time: 1-2 working days
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
281260009
When there is not enough space for a conventional tensioning system beneath the chain, the Spann-Boy® TS is used. The installation takes place beside the chain, requiring significantly less space. Our Spann-Boy® TS model is always supplied with a robust steel housing, with durability and reliable operation being the top priorities.
Two different versions are available: with curved profile and with sprocket. The Spann-Boy® TS is equipped with a light and a heavy spring, which can be released individually or together depending on the required tensioning force (light, heavy, extra heavy). The housing features integrated holes and elongated slots, allowing for easy installation and offering flexible adjustment options for precise re-tensioning.
With sprocket: For simplex chains.
| Construction type | european |
| tensioning force | light |
| tensioning force | heavy |
| tensioning force | extra heavy |
| Suitable mounting brackets | 281090091 |
| Clamping path (mm) | 40 |
| Clamping force according to number of springs (N) | 65 - 33 |
| Clamping force according to number of springs (N) | 125 - 63 |
| Clamping force according to number of springs (N) | 190 - 96 |
| Guide type | sprocket |
