When there is not enough space for a conventional tensioning system beneath the chain, the Spann-Boy® TS is used. The installation takes place beside the chain, requiring significantly less space. Our Spann-Boy® TS model is always supplied with a robust steel housing, with durability and reliable operation being the top priorities.
Two different versions are available: with curved profile and with sprocket. The Spann-Boy® TS is equipped with a light and a heavy spring, which can be released individually or together depending on the required tensioning force (light, heavy, extra heavy). The housing features integrated holes and elongated slots, allowing for easy installation and offering flexible adjustment options for precise re-tensioning.

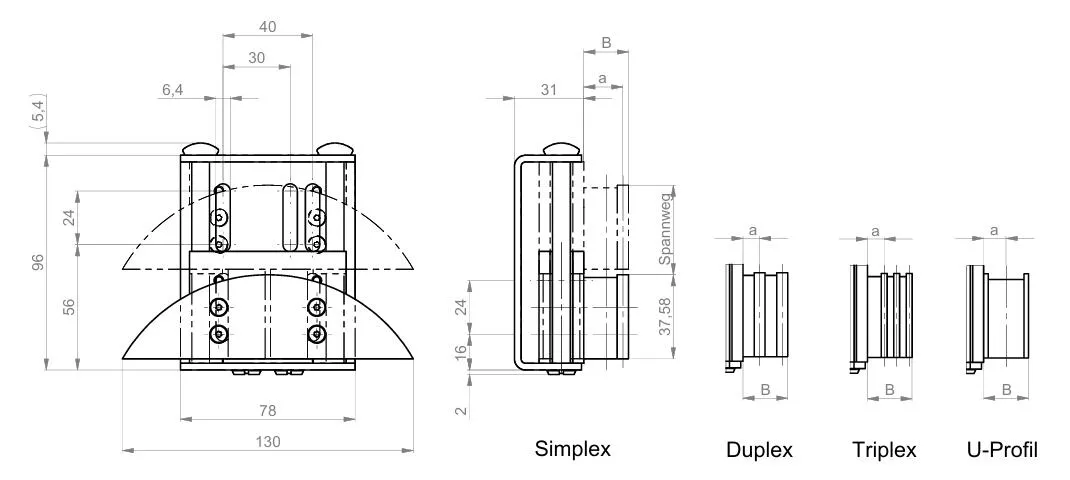

With curved profile: Available for simplex, duplex, and triplex chains.
| Guide type | arc segment profile |
| Profile width (mm) | 20.0 |
| Suitable mounting brackets | 281090091 |
| Clamping path (mm) | 40 |
| Clamping force according to number of springs (N) | 65 - 33 |
| Clamping force according to number of springs (N) | 125 - 63 |
| Clamping force according to number of springs (N) | 190 - 96 |
| a | 10.0 |

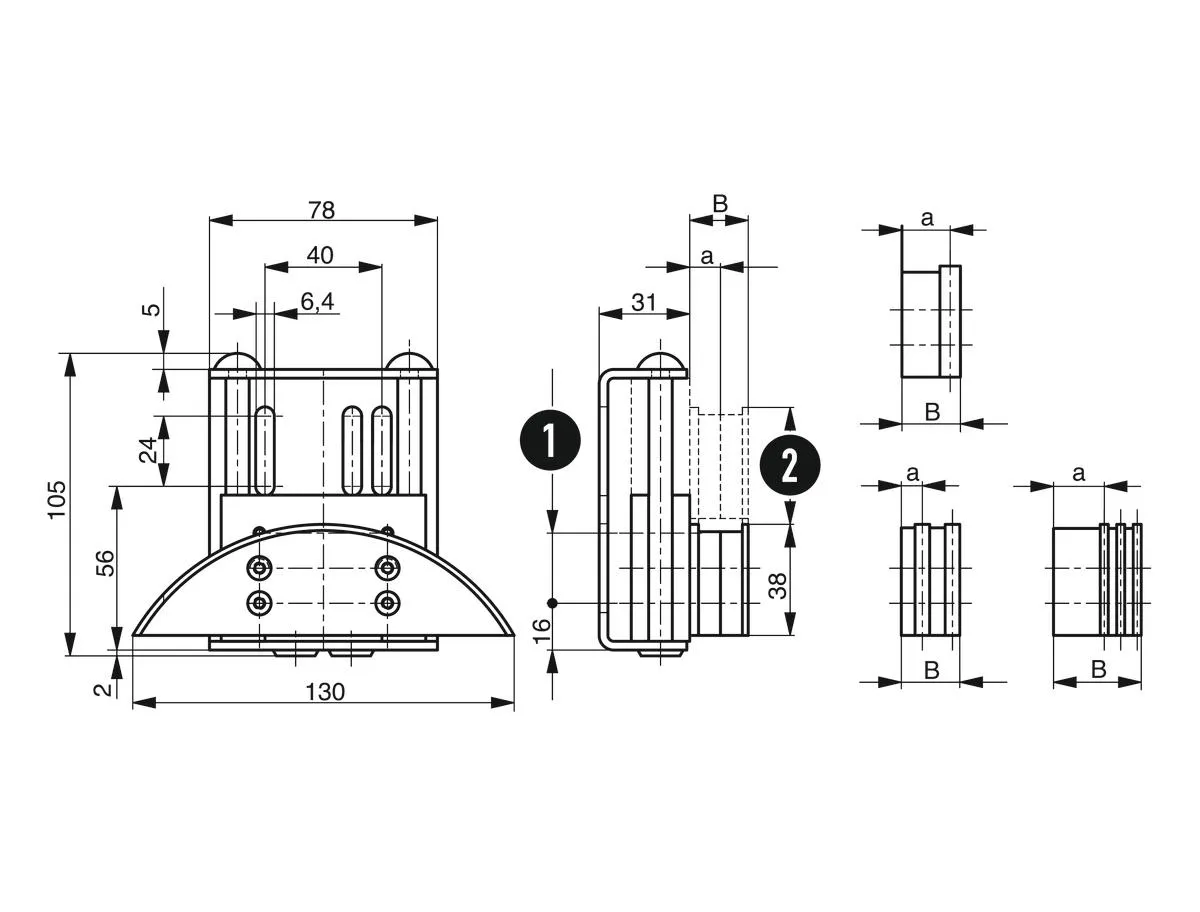

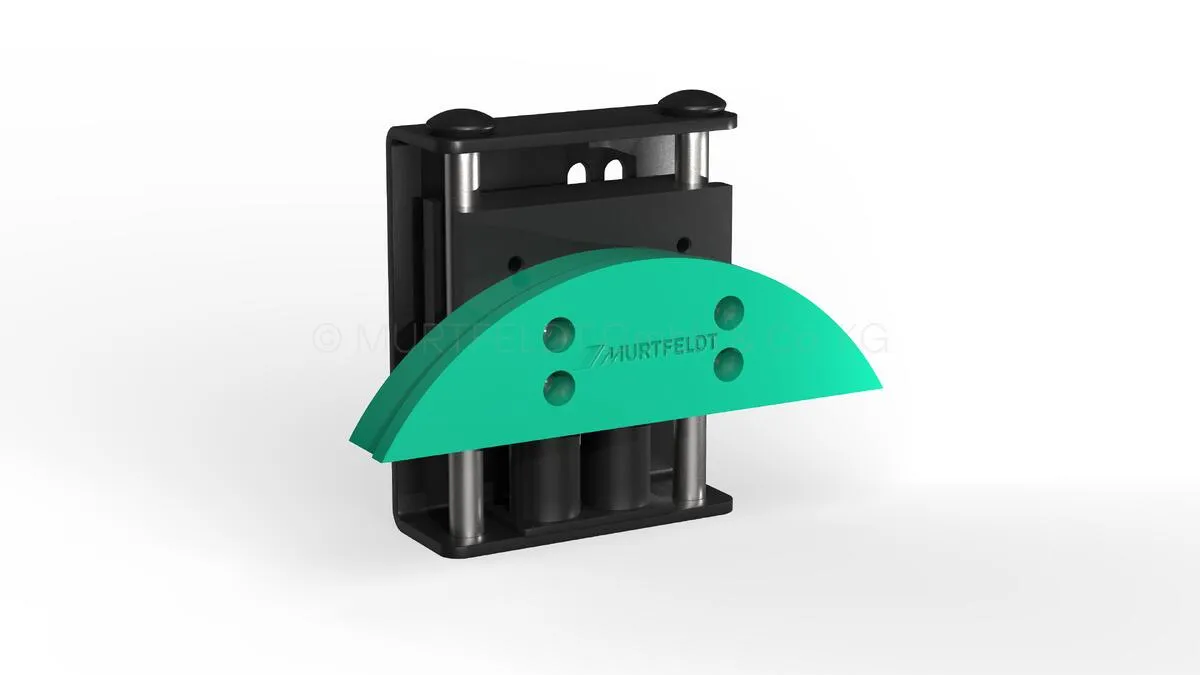

Chain tensioner Spann-Boy® TS arc segment profile
Space-saving tensioning system for lateral mounting on the chain
Construction type
Matching chain
tensioning force
Enclosure material
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Login
Product number
When there is not enough space for a conventional tensioning system beneath the chain, the Spann-Boy® TS is used. The installation takes place beside the chain, requiring significantly less space. Our Spann-Boy® TS model is always supplied with a robust steel housing, with durability and reliable operation being the top priorities.
Two different versions are available: with curved profile and with sprocket. The Spann-Boy® TS is equipped with a light and a heavy spring, which can be released individually or together depending on the required tensioning force (light, heavy, extra heavy). The housing features integrated holes and elongated slots, allowing for easy installation and offering flexible adjustment options for precise re-tensioning.
With curved profile: Available for simplex, duplex, and triplex chains.
| Guide type | arc segment profile |
| Profile width (mm) | 20.0 |
| Suitable mounting brackets | 281090091 |
| Clamping path (mm) | 40 |
| Clamping force according to number of springs (N) | 65 - 33 |
| Clamping force according to number of springs (N) | 125 - 63 |
| Clamping force according to number of springs (N) | 190 - 96 |
| a | 10.0 |
