Product number
281030001
CAD
Show in 3D
This chain tensioner has been specially developed for use in environments susceptible to corrosion without high mechanical stresses. Its high-quality plastic housing provides excellent protection against corrosion and ensures reliable performance even under challenging conditions.
Inside are three springs whose spring force can be individually adjusted between "light" and "heavy" to ensure optimal tensioning pressure for your specific application.
Installation is simple, underneath the chain, utilizing the pre-drilled holes provided in the housing. For additional flexibility, suitable mounting brackets can be optionally purchased to facilitate easy integration into various applications.
| Construction type | european |
| weight (kg) | 0.34 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 40 |
| Suitable mounting brackets | 281090088 |
| Clamping force according to number of springs (N) | 1 Feder gelöst: 58 - 32 |
| Clamping force according to number of springs (N) | 2 Federn gelöst: 116 - 64 |
| Clamping force according to number of springs (N) | 3 Federn gelöst: 174 - 96 |
| Guide type | arc segment profile |
| Sliding profile material | Original "S"® green |
| Profile width (mm) | 20.0 |
| Profile shape | U profile |

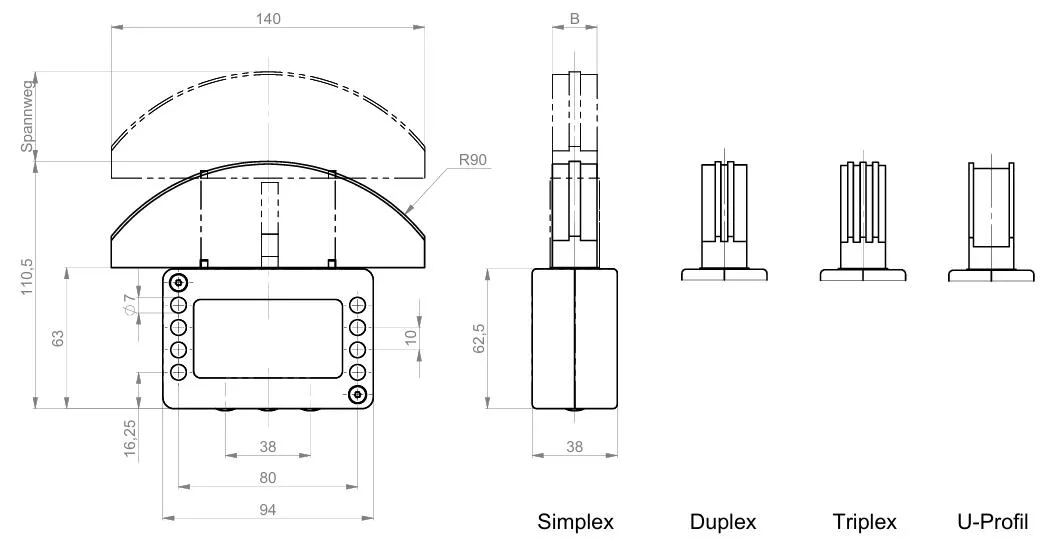

Chain tensioner Spann-Box® size 30
Compatible Chain
tensioning force
