Product number
The Spann-Box® Type 2 offers a wide range of variants to meet diverse requirements and is the largest chain tensioner in our product range. Choose between a curved profile, semicircular profile, or deflection profile. Its robust steel housing ensures high durability and reliable performance, even under challenging operating conditions.
For chain systems with alternating running directions, we recommend the version with an extended housing and "heavy" tension force. This variant is specifically designed for reversing operation, ensuring constant tension even under dynamic stresses.
The Spann-Box® is mounted easily underneath the chain and seamlessly integrates into existing systems.
Semicircular profile: Ideal for tight installation spaces where maximum space efficiency is required.
| Guide type | semi circular profile |
| Suitable mounting brackets | 281090002 |
| Suitable mounting brackets | 281090030 |
| Clamping path (mm) | 60 |
| Clamping force according to number of springs (N) | 262 - 118 |
| Clamping force according to number of springs (N) | 564 - 236 |
| Clamping force according to number of springs (N) | 786 - 354 |
| Profile width (mm) | 33.0 |

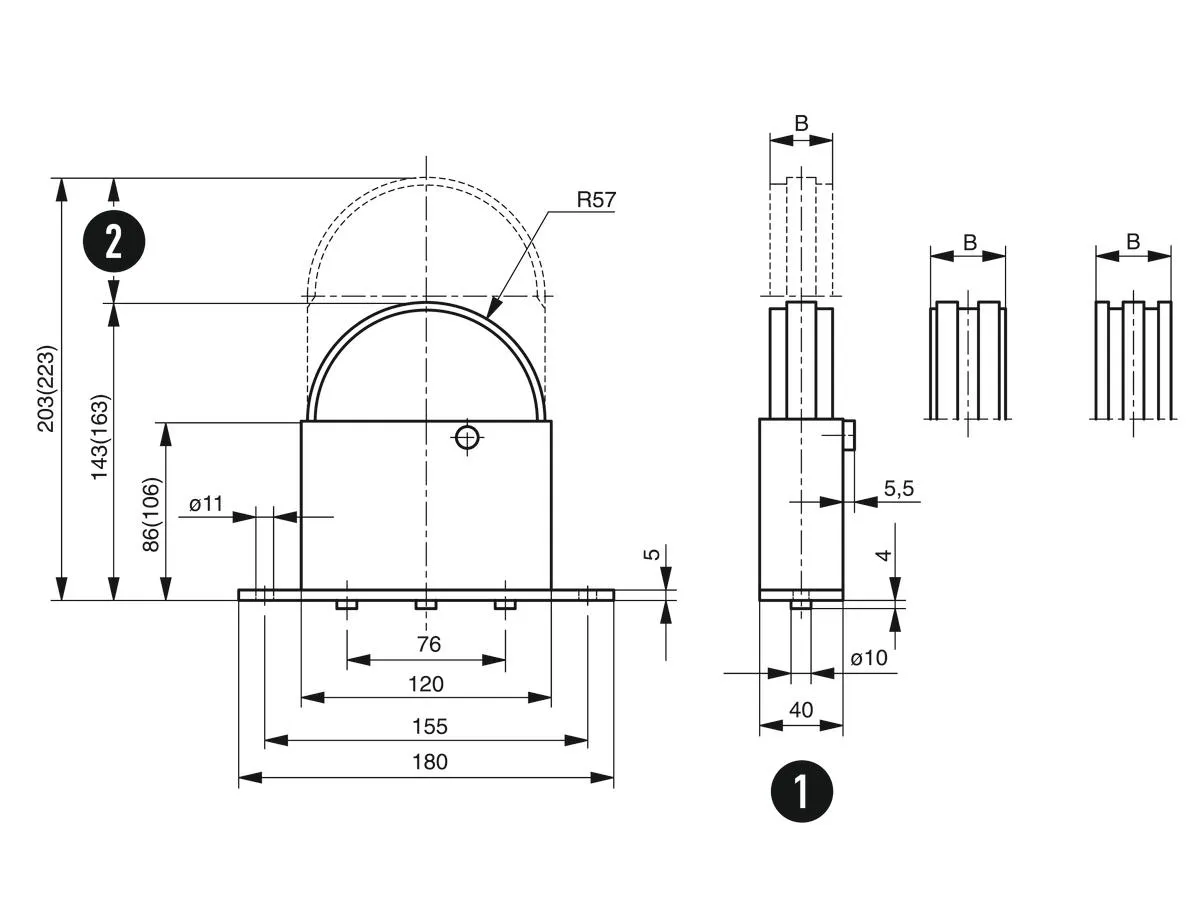

Chain tensioner Spann-Box® size 2 with semi-circular profile
Large chain tensioner with reverse option
Construction type
Matching chain
tensioning force
Enclosure material
Case shape
Show price & order?
Log in now to order directly or secure individual offers.
Login
Product number
The Spann-Box® Type 2 offers a wide range of variants to meet diverse requirements and is the largest chain tensioner in our product range. Choose between a curved profile, semicircular profile, or deflection profile. Its robust steel housing ensures high durability and reliable performance, even under challenging operating conditions.
For chain systems with alternating running directions, we recommend the version with an extended housing and "heavy" tension force. This variant is specifically designed for reversing operation, ensuring constant tension even under dynamic stresses.
The Spann-Box® is mounted easily underneath the chain and seamlessly integrates into existing systems.
Semicircular profile: Ideal for tight installation spaces where maximum space efficiency is required.
| Guide type | semi circular profile |
| Suitable mounting brackets | 281090002 |
| Suitable mounting brackets | 281090030 |
| Clamping path (mm) | 60 |
| Clamping force according to number of springs (N) | 262 - 118 |
| Clamping force according to number of springs (N) | 564 - 236 |
| Clamping force according to number of springs (N) | 786 - 354 |
| Profile width (mm) | 33.0 |
