Product number
281210001
CAD
Show in 3D
The roller chain tensioner Spann-Box® Type 1 with sprocket is used in applications requiring consideration of limited installation space or high chain speeds (> 1 m/s). The small deflection radius and heavy tension pressure enable compensation for significant chain elongation. Installation is simple and flexible: with optional mounting brackets, the Spann-Box® can be easily integrated into your system. A stainless steel version for special requirements is available upon request, due to dimensional variations.
In the Type K-S, the sprocket is mounted laterally.
| Construction type | european |
| tensioning force | heavy |
| weight (kg) | 0.9 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 40 |
| Suitable mounting brackets | 281090001 |
| Suitable mounting brackets | 281090029 |
| Suitable mounting brackets | 281090092 |
| Clamping force according to number of springs (N) | 1 Feder gelöst: 132 - 60 |
| Clamping force according to number of springs (N) | 2 Federn gelöst: 264 - 120 |
| Clamping force according to number of springs (N) | 3 Federn gelöst: 396 - 180 |
| Guide type | sprocket |

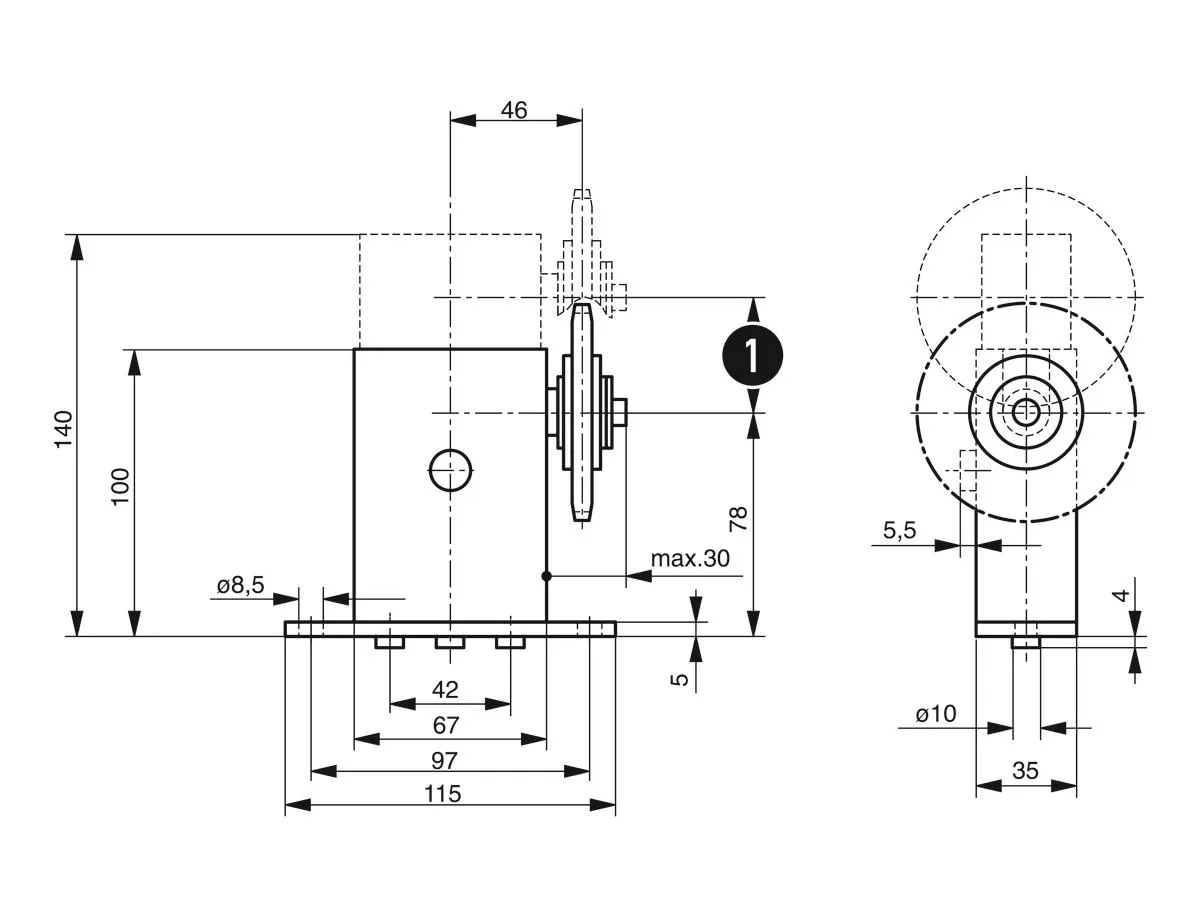

Chain tensioner Spann-Box® size 1 with sprocket type K-S
Compatible Chain
Number of teeth
Material – Enclosure
