Chain tensioner Spann-Box® size 1 with sprocket type K-L

Tensioning system with reverse option

Construction type

Choose a Construction type

Matching chain

Choose a Matching chain

tensioning force

Choose a tensioning force

Enclosure material

Choose a Enclosure material

Show prices & order or request a quote?

Log in now to order directly or secure individual offers.

login

Login

Product number

281210005

The roller chain tensioner Spann-Box® Type 1 with sprocket is used in applications requiring consideration of limited installation space or high chain speeds (> 1 m/s). The small deflection radius and heavy tension pressure enable compensation for significant chain elongation. Installation is simple and flexible: with optional mounting brackets, the Spann-Box® can be easily integrated into your system. A stainless steel version for special requirements is available upon request, due to dimensional variations.

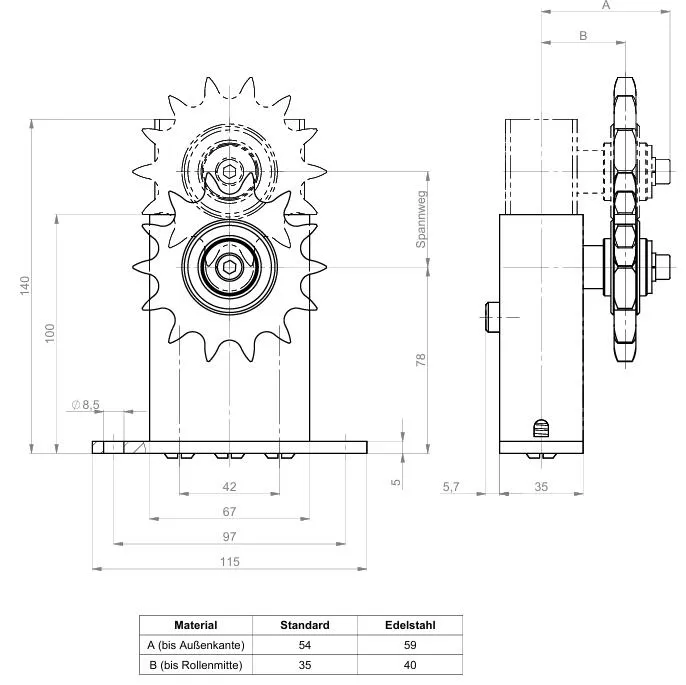

In the Type K-L, the sprocket is mounted longitudinally.

Clamping path (mm)40
Guide typesprocket
Number of teeth20.0
Suitable mounting brackets281090001
Suitable mounting brackets281090029
Suitable mounting brackets281090092
Clamping force according to number of springs (N)1 Feder gelöst: 132 - 60
Clamping force according to number of springs (N)2 Federn gelöst: 264 - 120
Clamping force according to number of springs (N)3 Federn gelöst: 396 - 180

Material Information
