Product number
281010031
CAD
Show in 3D
The Spann-Box® Type 1 is available in several variants to meet a wide range of requirements: with curved profile, semicircular profile, or deflection profile. Its robust design with steel housing ensures high durability and reliable performance, even under demanding conditions.
For chain systems with alternating running directions, we recommend the variant featuring an extended housing and a "heavy" tension force, as it is specifically designed for reversing operations and guarantees optimal tension.
The Spann-Box® is mounted easily and efficiently underneath the chain, integrating seamlessly into existing systems.

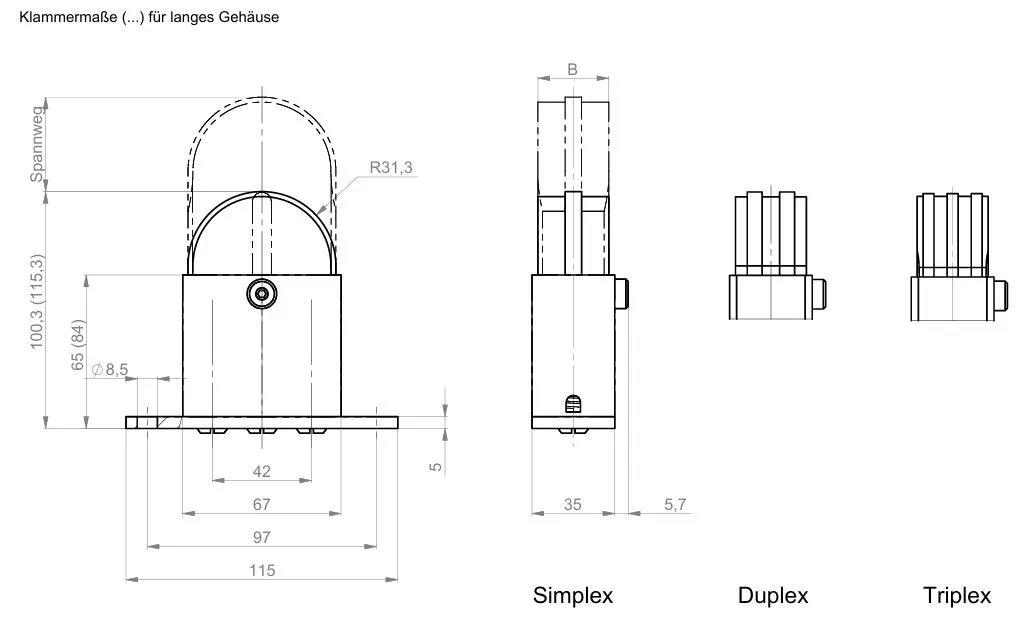

The semicircular profile is ideal for tight installation spaces.
| Construction type | european |
| weight (kg) | 0.56 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 40 |
| Suitable mounting brackets | 281090001 |
| Clamping force according to number of springs (N) | 1 Feder gelöst: 58 - 32 |
| Suitable mounting brackets | 281090029 |
| Clamping force according to number of springs (N) | 2 Federn gelöst: 116 - 64 |
| Suitable mounting brackets | 281090092 |
| Clamping force according to number of springs (N) | 3 Federn gelöst: 174 - 96 |
| Guide type | semi circular profile |
| Sliding profile material | Original "S"® green |
| Profile width (mm) | 30.0 |

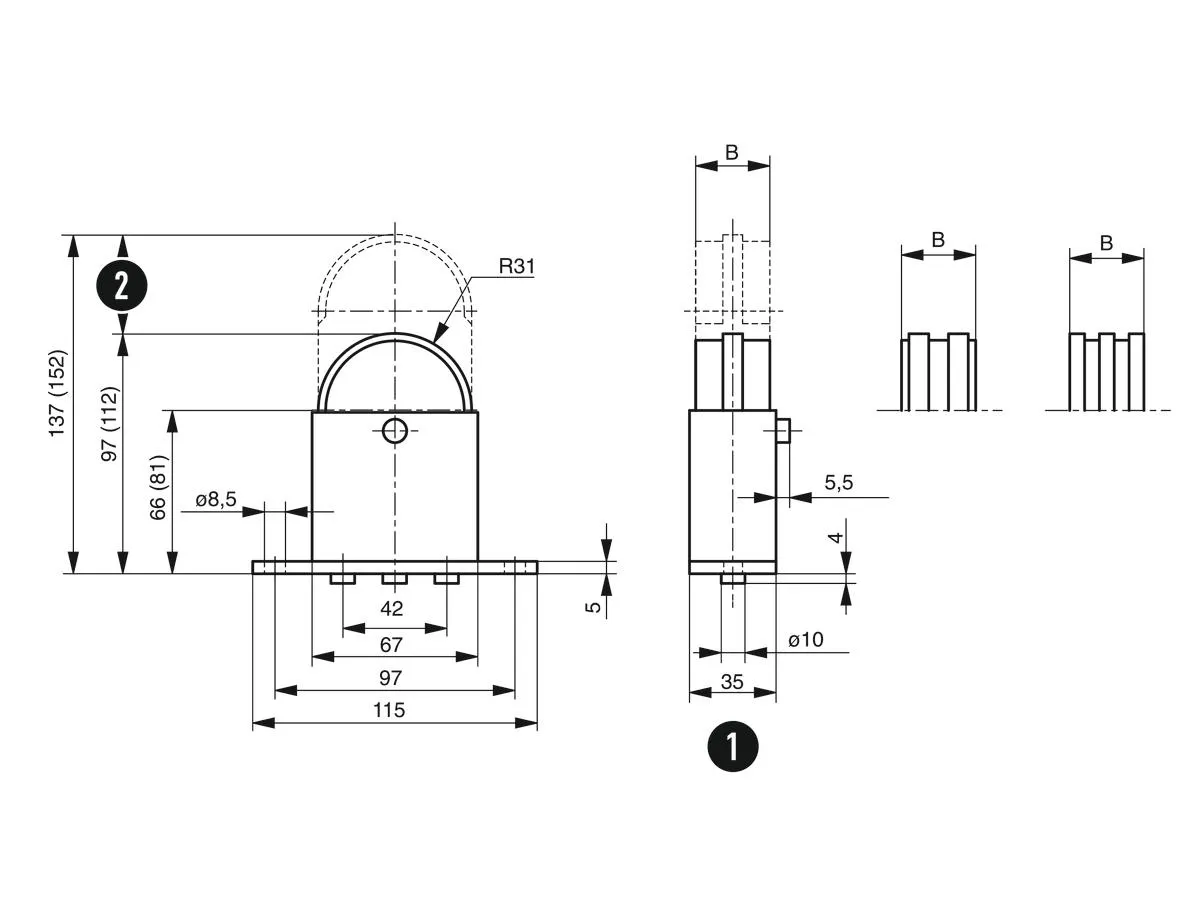

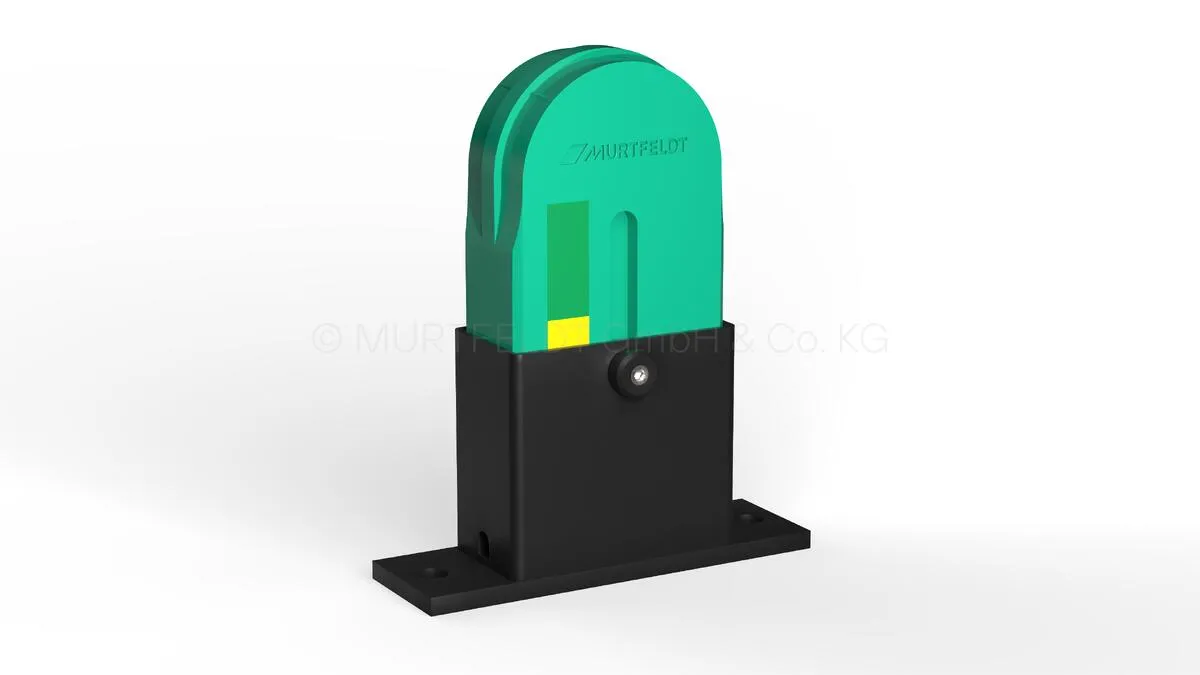

Chain tensioner Spann-Box® size 1 with semi-circular profile
Compatible Chain
tensioning force
Case shape
Material – Enclosure
quick_reorder Ready to ship in: 1-2 working days
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
281010031
CAD
Show in 3D
The Spann-Box® Type 1 is available in several variants to meet a wide range of requirements: with curved profile, semicircular profile, or deflection profile. Its robust design with steel housing ensures high durability and reliable performance, even under demanding conditions.
For chain systems with alternating running directions, we recommend the variant featuring an extended housing and a "heavy" tension force, as it is specifically designed for reversing operations and guarantees optimal tension.
The Spann-Box® is mounted easily and efficiently underneath the chain, integrating seamlessly into existing systems.
The semicircular profile is ideal for tight installation spaces.
| Construction type | european |
| weight (kg) | 0.56 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 40 |
| Suitable mounting brackets | 281090001 |
| Clamping force according to number of springs (N) | 1 Feder gelöst: 58 - 32 |
| Suitable mounting brackets | 281090029 |
| Clamping force according to number of springs (N) | 2 Federn gelöst: 116 - 64 |
| Suitable mounting brackets | 281090092 |
| Clamping force according to number of springs (N) | 3 Federn gelöst: 174 - 96 |
| Guide type | semi circular profile |
| Sliding profile material | Original "S"® green |
| Profile width (mm) | 30.0 |
