Product number
281010088
The Spann-Box® Type 1 is available in several variants to meet a wide range of requirements: with curved profile, semicircular profile, or deflection profile. Its robust design with steel housing ensures high durability and reliable performance, even under demanding conditions.
For chain systems with alternating running directions, we recommend the variant featuring an extended housing and a "heavy" tension force, as it is specifically designed for reversing operations and guarantees optimal tension.
The Spann-Box® is mounted easily and efficiently underneath the chain, integrating seamlessly into existing systems.
With the 180° deflection profile, twice the length of the tensioning stroke of the Spann-Box® can be used to compensate for chain elongation (spring force ‘heavy’).
| Construction type | european |
| Case shape | long casing |
| weight (kg) | 0.78 |
| Operating temperature range (°C) | -40 to 60 |
| Clamping path (mm) | 40 |
| Suitable mounting brackets | 281090001 |
| Clamping force according to number of springs (N) | 1 Feder gelöst: 58 - 32 |
| Suitable mounting brackets | 281090029 |
| Clamping force according to number of springs (N) | 2 Federn gelöst: 116 - 64 |
| Suitable mounting brackets | 281090092 |
| Clamping force according to number of springs (N) | 3 Federn gelöst: 174 - 96 |
| Guide type | return profile |
| Sliding profile material | Original "S"® green |
| Profile width (mm) | 30.0 |

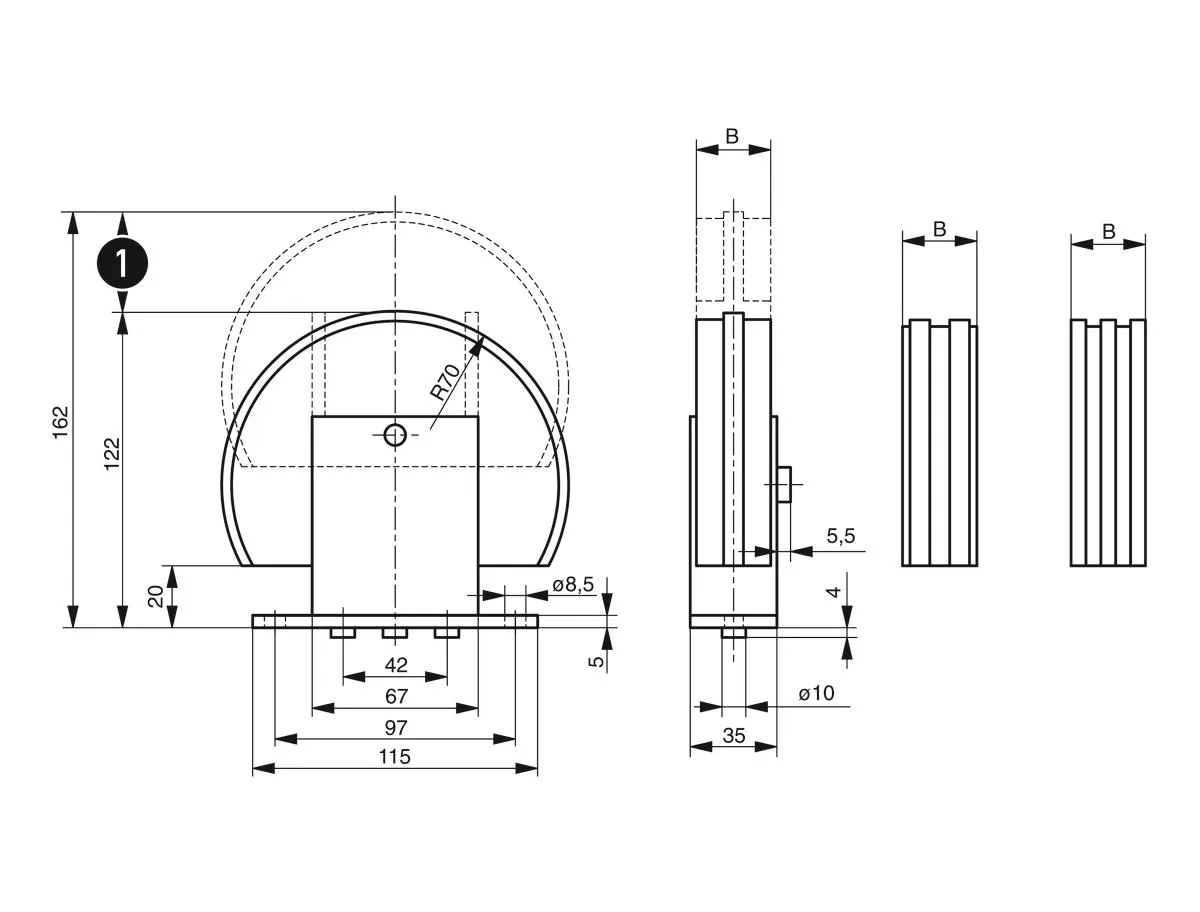

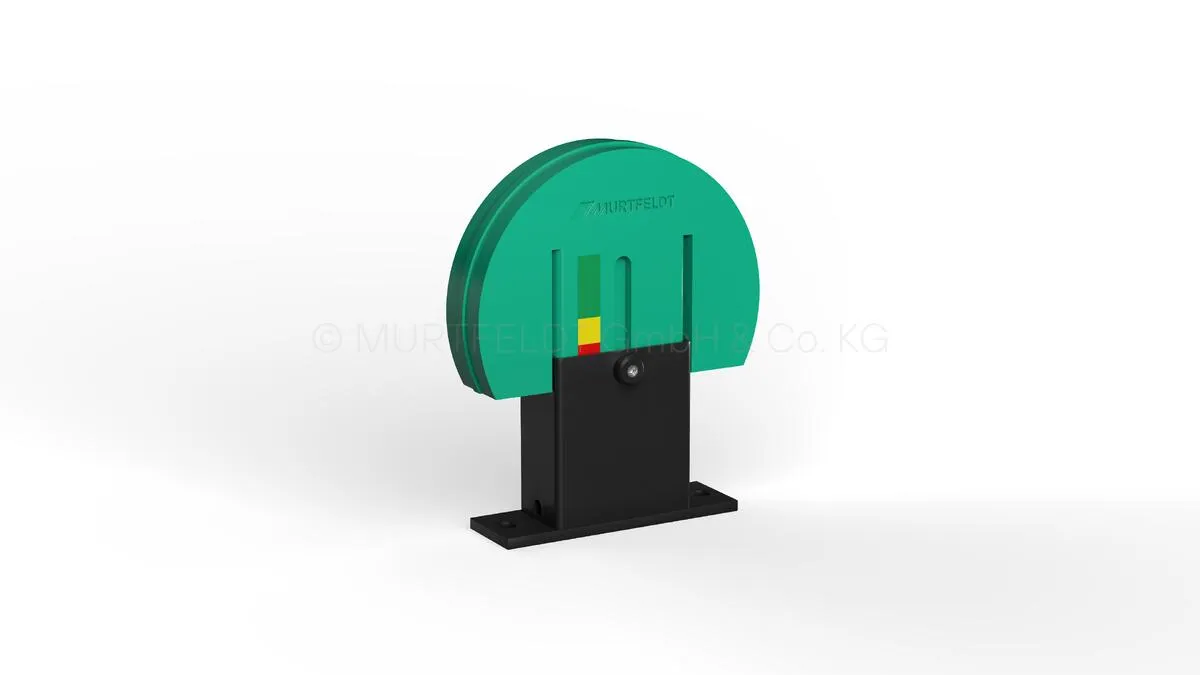

Chain tensioner Spann-Box® size 1 with 180° return profile
Compatible Chain
tensioning force
Material – Enclosure
