Product number
The chain guide, compatible with aluminum profile systems, is designed for vertically installed simplex, duplex, or triplex chains. It is available in a fixed length of 2 m or as a custom-length cut. The material used, Original "S"Ā® black from MURTFELDT, is durable and statically dissipative according to ATEX Directive (014/34/EU).
Each meter of SNAP-TRICKĀ® chain guide is supplied with 5 SNAPs, which are compatible with all common aluminum profile systems.
| Construction type | european |
| B1 (mm) | 25.0 |
| H (mm) | 17.7 |
| Material | Original "S"Ā® black AST |
| Suitable SNAP | SNAP Type S1 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S2 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S3 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S4 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S5 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S6 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S7 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S8 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S9 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S10 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S11 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S12 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S13 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S14 ā Free Add-On (5 pcs/m) |
| h (mm) | 3.5 |
| b (mm) | 12.8 |

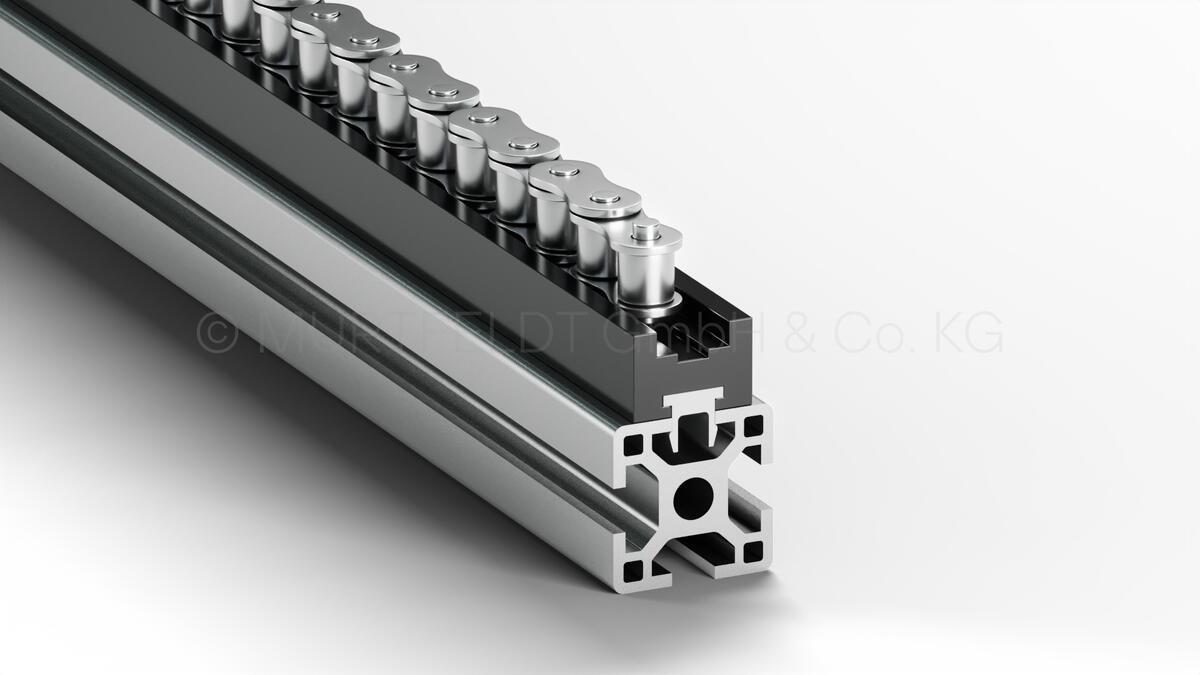

Chain guide Type U for SNAP-TRICKĀ®
Roller chain guide for vertically installed chains with click connection
Matching chain
Length (mm)
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
The chain guide, compatible with aluminum profile systems, is designed for vertically installed simplex, duplex, or triplex chains. It is available in a fixed length of 2 m or as a custom-length cut. The material used, Original "S"Ā® black from MURTFELDT, is durable and statically dissipative according to ATEX Directive (014/34/EU).
Each meter of SNAP-TRICKĀ® chain guide is supplied with 5 SNAPs, which are compatible with all common aluminum profile systems.
| Construction type | european |
| B1 (mm) | 25.0 |
| H (mm) | 17.7 |
| Material | Original "S"Ā® black AST |
| Suitable SNAP | SNAP Type S1 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S2 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S3 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S4 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S5 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S6 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S7 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S8 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S9 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S10 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S11 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S12 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S13 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S14 ā Free Add-On (5 pcs/m) |
| h (mm) | 3.5 |
| b (mm) | 12.8 |
