Product number

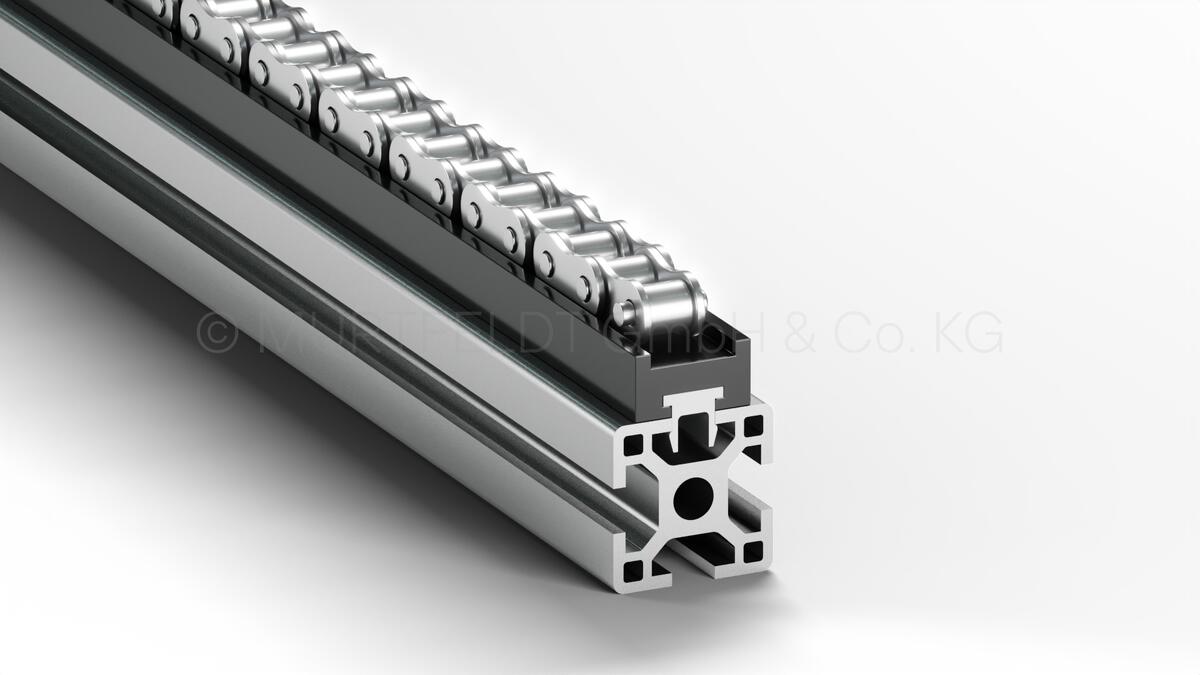

The SNAP-TRICKĀ® profile Type TU for simplex roller chains is pre-configured for the installation of SNAP items onto aluminum profile systems. It is made from our Original "S"Ā® black material, is statically dissipative, ATEX-compliant, and features excellent anti-adhesive properties, high chemical resistance, as well as exceptional impact and shock resistance.
The guide rail for SNAP-TRICKĀ® is available in a standard length of 2 m and is supplied with 5 SNAPs per meter. Intermediate dimensions are possible, and alternative materials are available upon request.
| Construction type | european |
| B1 (mm) | 25.0 |
| H (mm) | 12.5 |
| Material | Original "S"Ā® black AST |
| Suitable SNAP | SNAP Type S1 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S2 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S3 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S4 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S5 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S6 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S7 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S8 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S9 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S10 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S11 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S12 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S13 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S14 ā Free Add-On (5 pcs/m) |
| h (mm) | 2.5 |
| b (mm) | 16.3 |
Chain guide Type TU for SNAP-TRICKĀ®
Chain guide type TU for roller chains
Matching chain
Length (mm)
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
The SNAP-TRICKĀ® profile Type TU for simplex roller chains is pre-configured for the installation of SNAP items onto aluminum profile systems. It is made from our Original "S"Ā® black material, is statically dissipative, ATEX-compliant, and features excellent anti-adhesive properties, high chemical resistance, as well as exceptional impact and shock resistance.
The guide rail for SNAP-TRICKĀ® is available in a standard length of 2 m and is supplied with 5 SNAPs per meter. Intermediate dimensions are possible, and alternative materials are available upon request.
| Construction type | european |
| B1 (mm) | 25.0 |
| H (mm) | 12.5 |
| Material | Original "S"Ā® black AST |
| Suitable SNAP | SNAP Type S1 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S2 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S3 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S4 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S5 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S6 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S7 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S8 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S9 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S10 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S11 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S12 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S13 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S14 ā Free Add-On (5 pcs/m) |
| h (mm) | 2.5 |
| b (mm) | 16.3 |
