Product number
231120005
CAD
Show in 3D

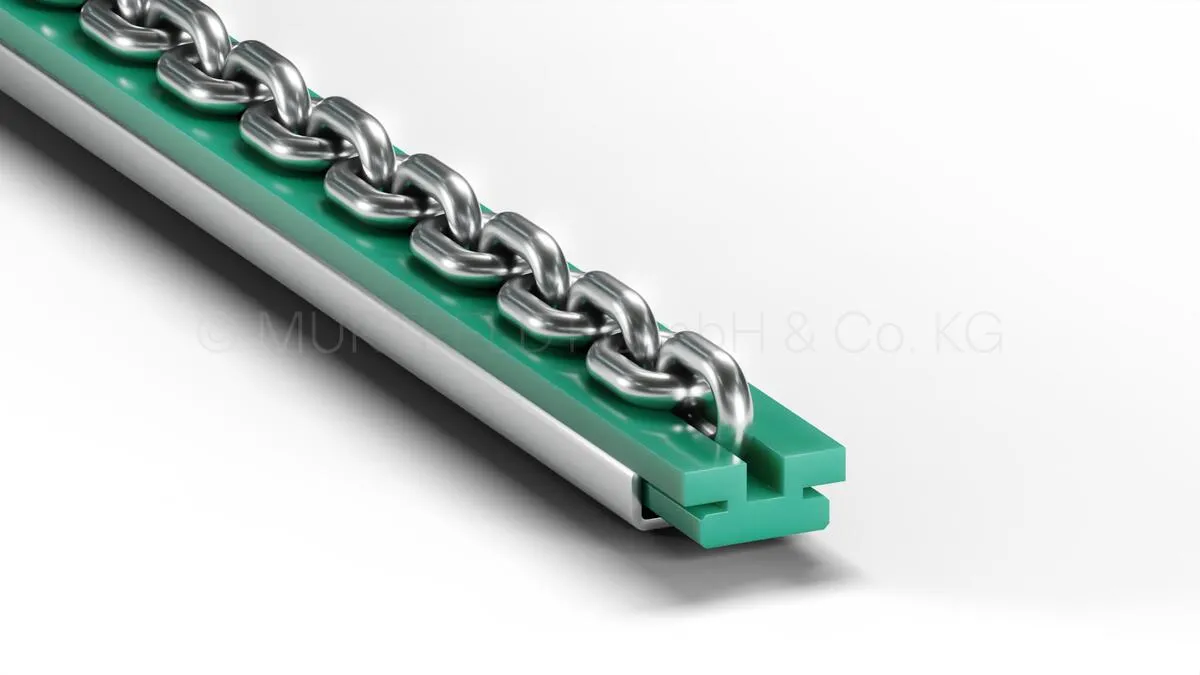

The chain guide rail Type CRU impresses with precise tolerances in both the plastic profile cross-section and the length tolerance, ensuring an optimal fit and function.
As a standard, it is offered in a length of 2000 mm and can be ordered with a matching steel C profile. Intermediate dimensions and production from other plastics are also possible. The guide rail is available directly from stock in the Original "S"® green® and our recycled material "S" newCycle® green.
You can find suitable steel C profiles at the bottom of this page.

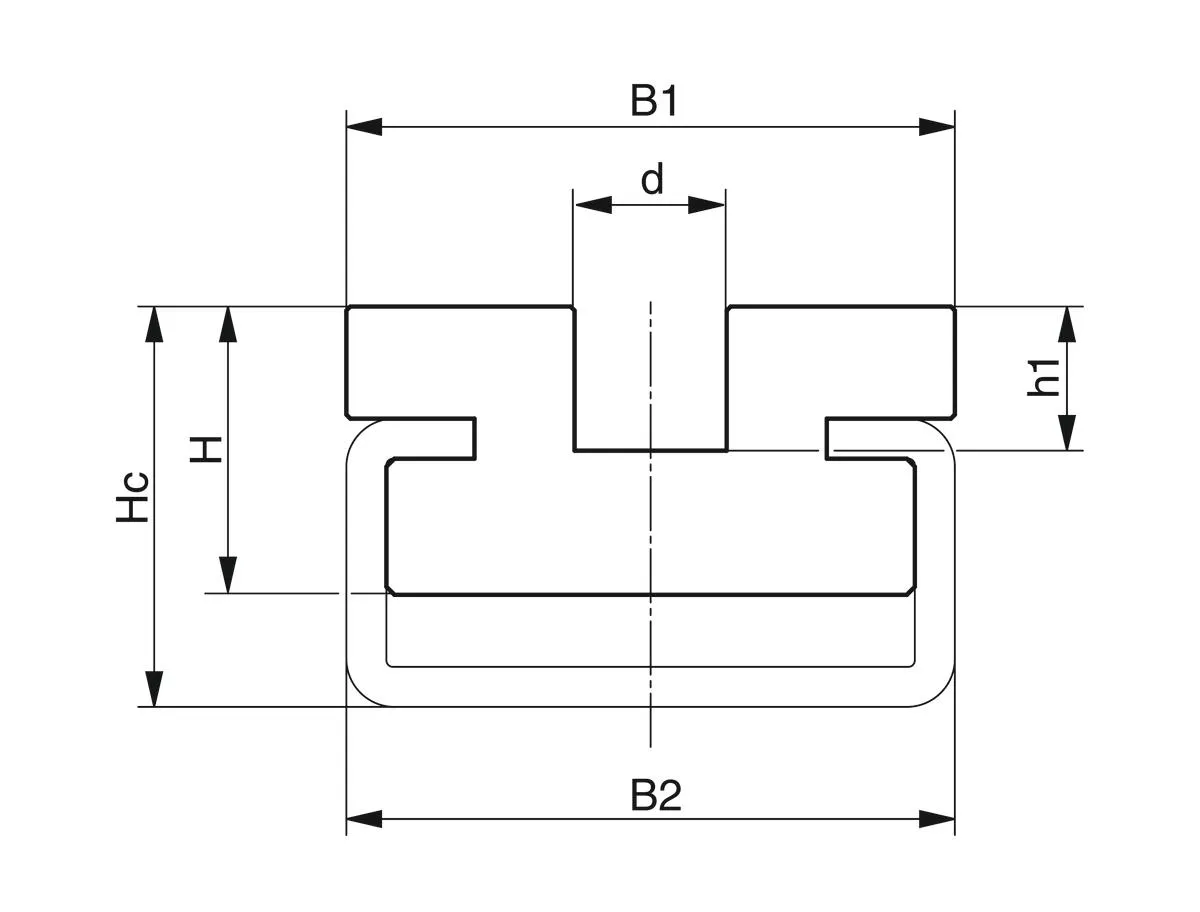

| H (mm) | 14.0 |
| B2 (mm) | 28.0 |
| Suitable C-profile type | C5 |
| Hc (mm) | 18.0 |
| B1 (mm) | 30.0 |
| d (mm) | 7.0 |
| h1 (mm) | 7.0 |
| weight (kg) | 0.28 |
Chain guide Type CRU
High-quality chain guide rail Type CRU for round link chains (suitable for steel C profile)
Matching chain
Material
Length (mm)
quick_reorder Delivery time: 1-2 working days
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
231120005
CAD
Show in 3D
The chain guide rail Type CRU impresses with precise tolerances in both the plastic profile cross-section and the length tolerance, ensuring an optimal fit and function.
As a standard, it is offered in a length of 2000 mm and can be ordered with a matching steel C profile. Intermediate dimensions and production from other plastics are also possible. The guide rail is available directly from stock in the Original "S"® green® and our recycled material "S" newCycle® green.
You can find suitable steel C profiles at the bottom of this page.
| H (mm) | 14.0 |
| B2 (mm) | 28.0 |
| Suitable C-profile type | C5 |
| Hc (mm) | 18.0 |
| B1 (mm) | 30.0 |
| d (mm) | 7.0 |
| h1 (mm) | 7.0 |
| weight (kg) | 0.28 |
