Note: The product shown is for illustration purposes only.
Product number
231020001
CAD
Show in 3D
The chain guide rail TYPE R impresses with precise tolerances in both the plastic profile cross-section and the length tolerance, ensuring an optimal fit and function.
As a standard, it is offered in a length of 2000 mm. Intermediate dimensions and production from other plastics are also possible. The guide rail is available directly from stock in the Original S® green and our recycled material S® NewCycle® green.

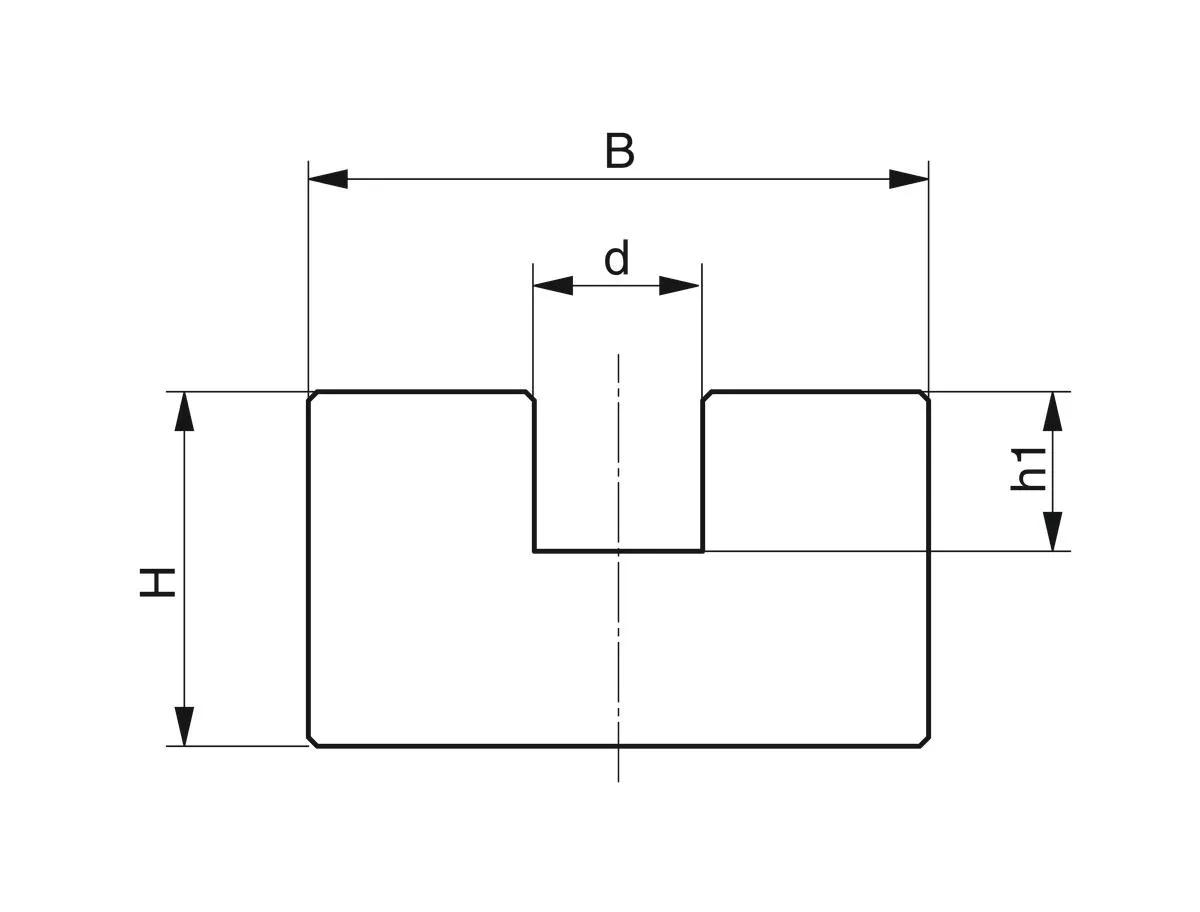

| B1 (mm) | 30.0 |
| H (mm) | 15.0 |
| Weight (kg) | 0.76 |
| Width d (mm) | 7.0 |
| Height h1 (mm) | 7.0 |
Chain guide TYPE R
Compatible Chain
Material
Length (mm)
The actual supplied length of standard guides may differ slightly from the nominal dimension due to the manufacturing process. If an exact length is required, please order a cut length version.
quick_reorder Ready to ship in: 1 working day
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
231020001
CAD
Show in 3D
The chain guide rail TYPE R impresses with precise tolerances in both the plastic profile cross-section and the length tolerance, ensuring an optimal fit and function.
As a standard, it is offered in a length of 2000 mm. Intermediate dimensions and production from other plastics are also possible. The guide rail is available directly from stock in the Original S® green and our recycled material S® NewCycle® green.
| B1 (mm) | 30.0 |
| H (mm) | 15.0 |
| Weight (kg) | 0.76 |
| Width d (mm) | 7.0 |
| Height h1 (mm) | 7.0 |
