Note: The product shown is for illustration purposes only.
Product number
231120009
CAD
Show in 3D
The sealed chain guide rail TYPE CRG for round steel chains stands out due to its precise tolerances, both in the plastic profile cross-section and in length tolerance, ensuring a perfect fit and smooth operation. The optionally available steel profile almost completely encloses the chain guide rail, providing additional stability and protection, which is particularly advantageous in high-frequency applications.
Intermediate lengths as well as alternative materials are also available.
You can find suitable steel C profiles at the bottom of this page.

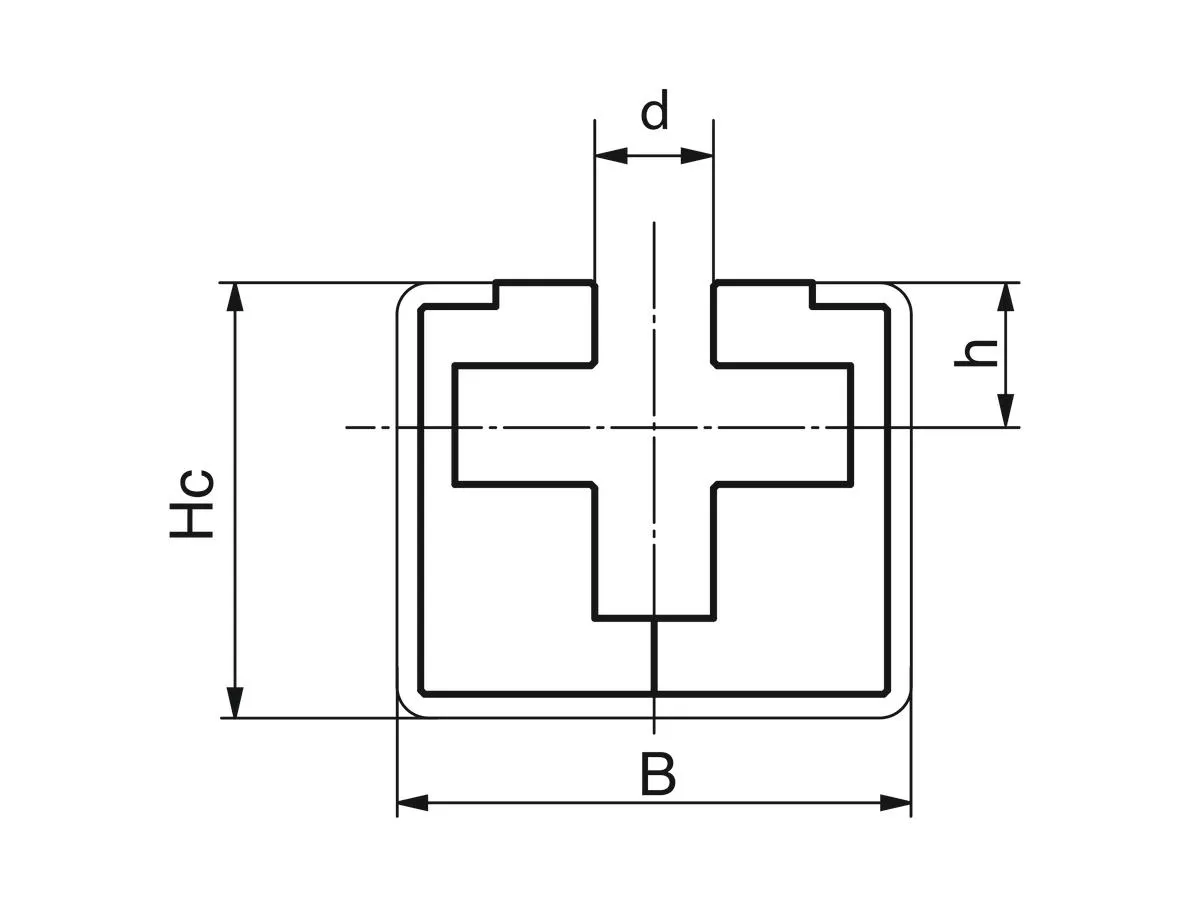

| B1 (mm) | 45.0 |
| weight (kg) | 1.3 |
| Width d (mm) | 7.0 |
| Height h (mm) | 8.0 |
| Suitable C-profile type | C11 |
| Hc (mm) | 40.0 |
Chain guide TYPE CRG
Compatible Chain
Material
Length (mm)
quick_reorder Ready to ship in: 1 working day
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
231120009
CAD
Show in 3D
The sealed chain guide rail TYPE CRG for round steel chains stands out due to its precise tolerances, both in the plastic profile cross-section and in length tolerance, ensuring a perfect fit and smooth operation. The optionally available steel profile almost completely encloses the chain guide rail, providing additional stability and protection, which is particularly advantageous in high-frequency applications.
Intermediate lengths as well as alternative materials are also available.
You can find suitable steel C profiles at the bottom of this page.
| B1 (mm) | 45.0 |
| weight (kg) | 1.3 |
| Width d (mm) | 7.0 |
| Height h (mm) | 8.0 |
| Suitable C-profile type | C11 |
| Hc (mm) | 40.0 |
