Product number

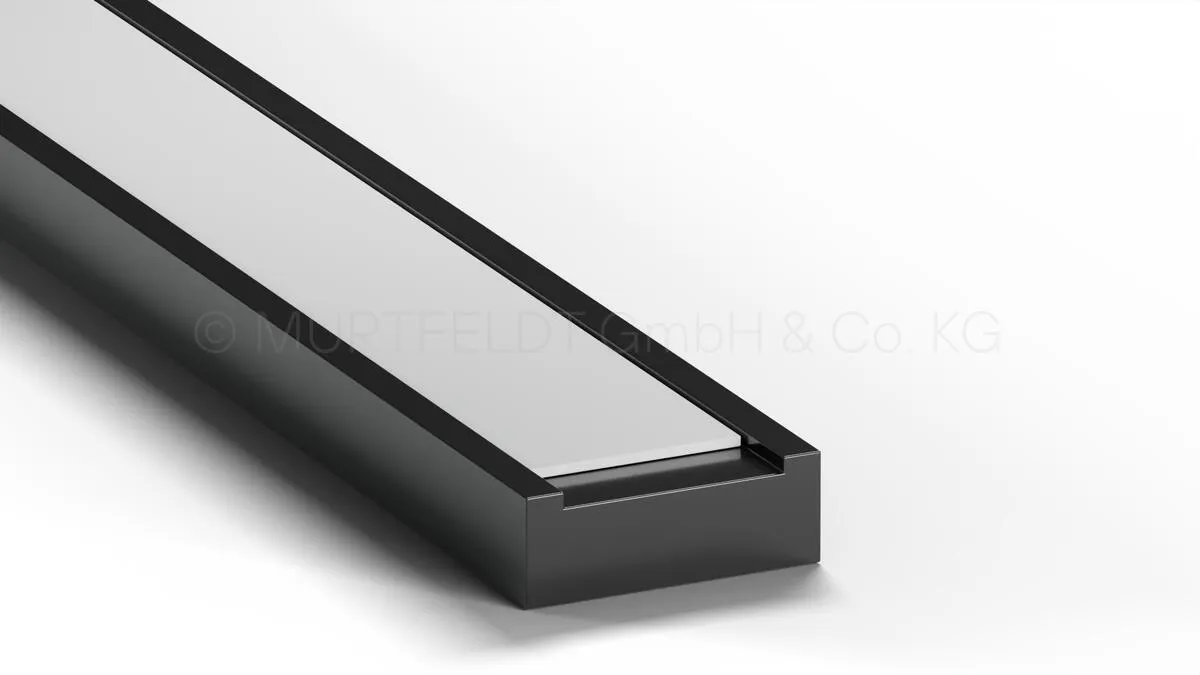

The FR guide was developed to align and precisely guide both timing belts and flat belts. It combines versatile application options with outstanding material quality to make drive and conveyor processes efficient.
The guide minimises wear and extends the service life of the belts. Our MURTFELDT standard length is 2 m, but we also manufacture any other cut-to-length size. The high chemical resistance and corrosion resistance of the Original "S"® black (PE-UHMW) used makes the timing belt guide suitable even for demanding environments.

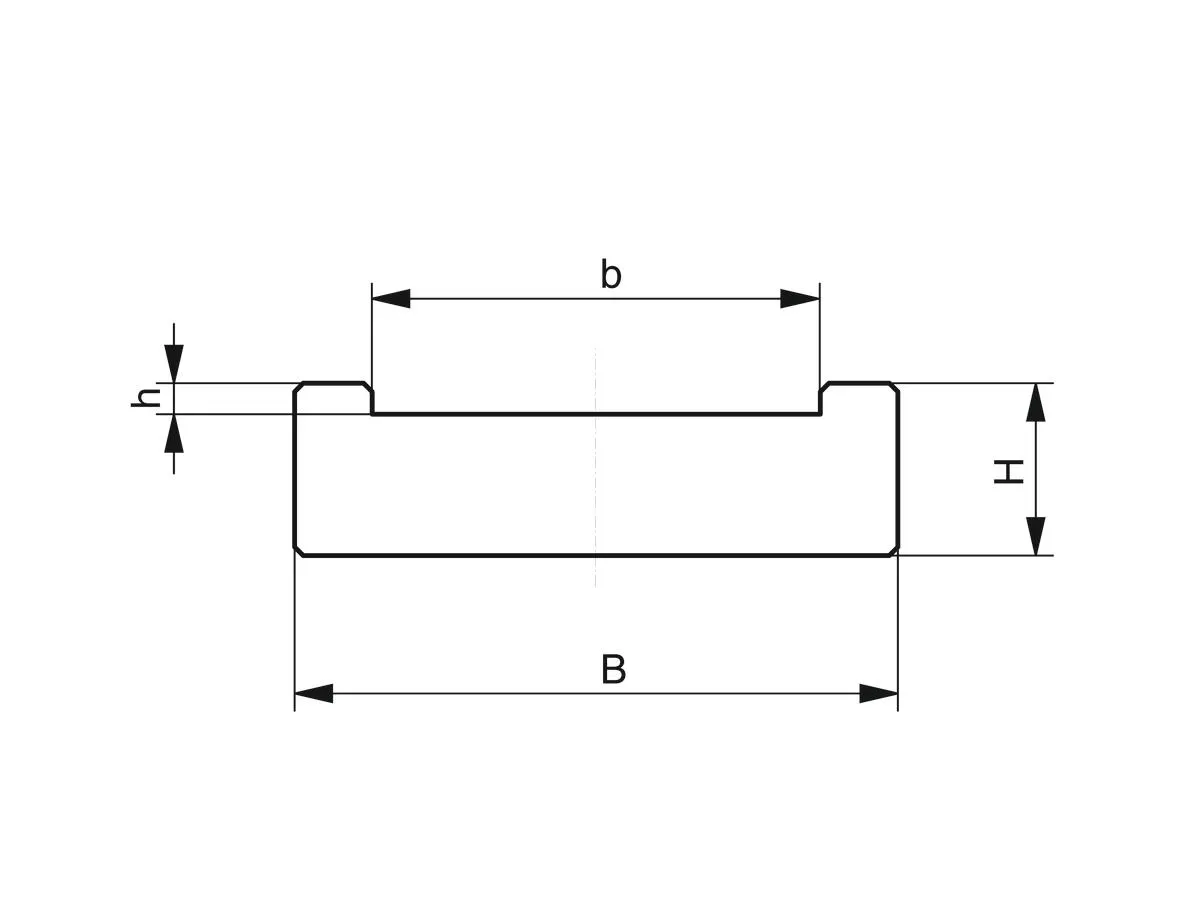

H (mm) | 10.0 |
B1 (mm) | 35.0 |
Material | Original "S"® black AST |
b (mm) | 26.0 |
h (mm) | 1.8 |
Belt guide Type FR
Belt sliding guide for flat or toothed belts
Matching belt
Length (mm)
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
The FR guide was developed to align and precisely guide both timing belts and flat belts. It combines versatile application options with outstanding material quality to make drive and conveyor processes efficient.
The guide minimises wear and extends the service life of the belts. Our MURTFELDT standard length is 2 m, but we also manufacture any other cut-to-length size. The high chemical resistance and corrosion resistance of the Original "S"® black (PE-UHMW) used makes the timing belt guide suitable even for demanding environments.
H (mm) | 10.0 |
B1 (mm) | 35.0 |
Material | Original "S"® black AST |
b (mm) | 26.0 |
h (mm) | 1.8 |
