Note: The product shown is for illustration purposes only.
Product number
231110029
CAD
Show in 3D

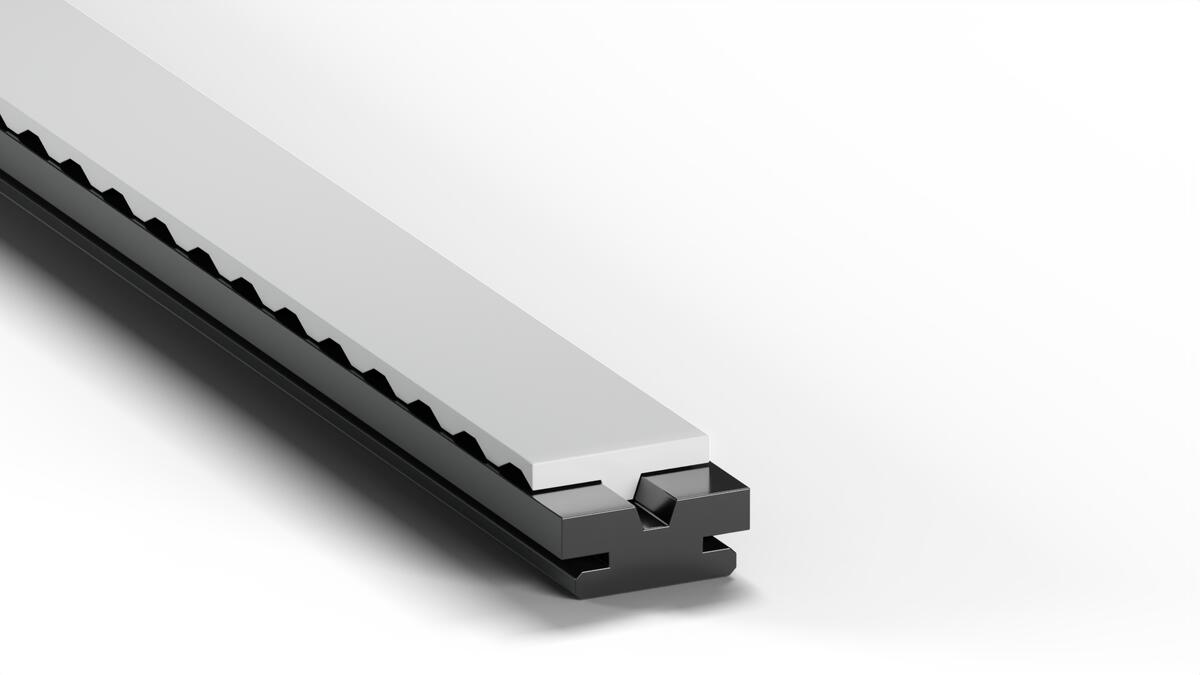

The belt guide Type FKC is precisely designed to optimally guide the lateral guide lugs of a spur timing belt. This reliably prevents the belt from slipping, even at high speeds or under heavy loads. Manufactured from UHMW-PE Original "S"® black, the spur timing belt guide offers exceptionally high wear resistance and excellent sliding properties.
The MURTFELDT guide can be customized to meet your specific requirements, independent of the standard length of 2000 mm. The same applies to the additionally available steel C-profile.
You can find suitable steel C profiles at the bottom of this page.

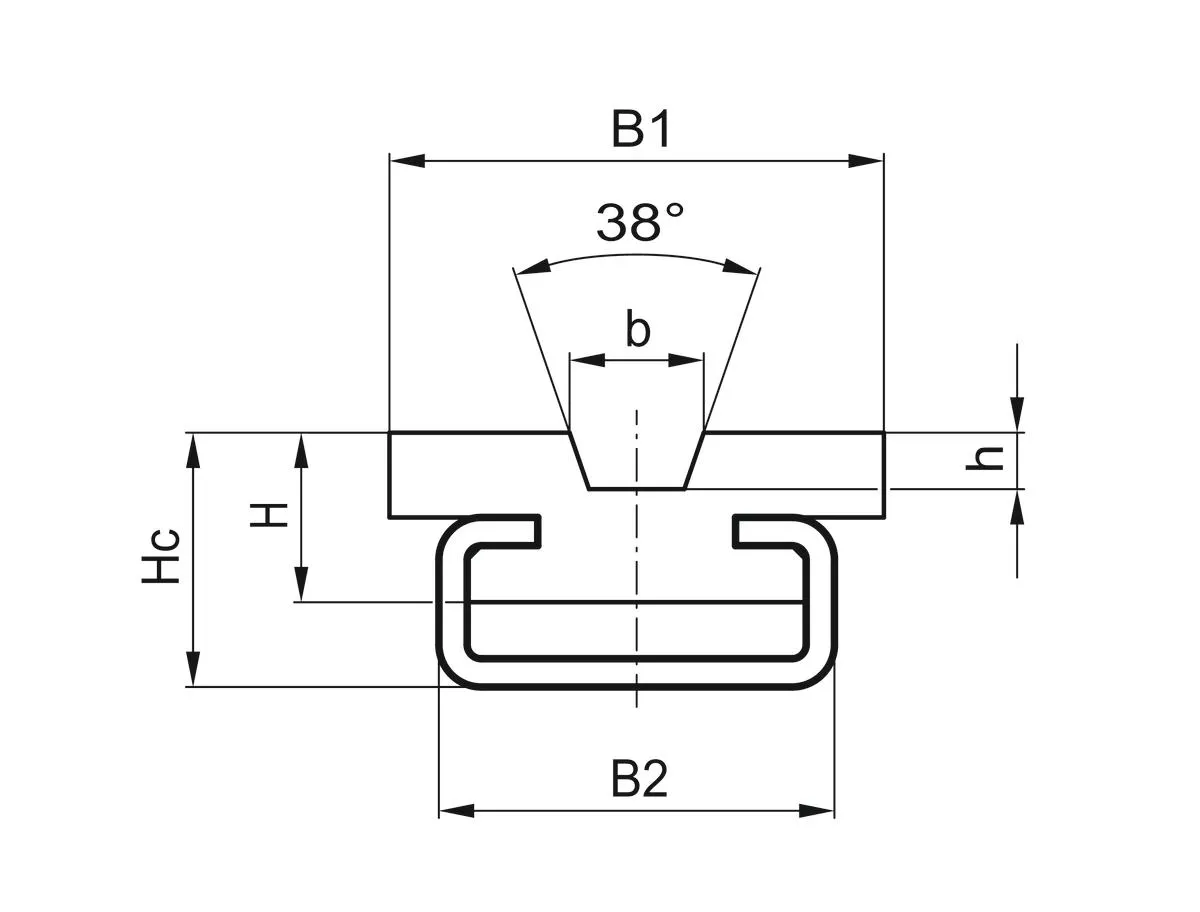

| Material | Original "S"® black AST |
| H (mm) | 12.0 |
| B1 (mm) | 28.0 |
| B2 (mm) | 28.0 |
| weight (kg) | 0.5 |
| b (mm) | 6.0 |
| h (mm) | 3.5 |
| Suitable C-profile type | C5 |
| Hc (mm) | 18.0 |
Belt guide Type FKC
Compatible Belt
Length (mm)
quick_reorder Ready to ship in: 1 working day
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
231110029
CAD
Show in 3D
The belt guide Type FKC is precisely designed to optimally guide the lateral guide lugs of a spur timing belt. This reliably prevents the belt from slipping, even at high speeds or under heavy loads. Manufactured from UHMW-PE Original "S"® black, the spur timing belt guide offers exceptionally high wear resistance and excellent sliding properties.
The MURTFELDT guide can be customized to meet your specific requirements, independent of the standard length of 2000 mm. The same applies to the additionally available steel C-profile.
You can find suitable steel C profiles at the bottom of this page.
| Material | Original "S"® black AST |
| H (mm) | 12.0 |
| B1 (mm) | 28.0 |
| B2 (mm) | 28.0 |
| weight (kg) | 0.5 |
| b (mm) | 6.0 |
| h (mm) | 3.5 |
| Suitable C-profile type | C5 |
| Hc (mm) | 18.0 |
Steel C5 profile
Optimal partner for receiving plastic sliding guides
Stainless Steel C5 profile, 2m
Optimal partner for receiving plastic sliding guides
Steel C5 profile, galvanised, 3m
Optimal partner for receiving plastic sliding guides
Stainless Steel C5 profile, 3m
Optimal partner for receiving plastic sliding guides
Steel C5 profile, galvanised, 6m
Optimal partner for receiving plastic sliding guides
Stainless Steel C5 profile, 6m
Optimal partner for receiving plastic sliding guides
Steel C5 profile, bare, 6 m
Optimal partner for receiving plastic sliding guides
