Belt guide Type FK for SNAP-TRICKĀ®

Belt guide for toothed belts

Matching belt

Choose a Matching belt

Length (mm)

Choose a Length (mm)

Show prices & order or request a quote?

Log in now to order directly or secure individual offers.

Product number

231513021

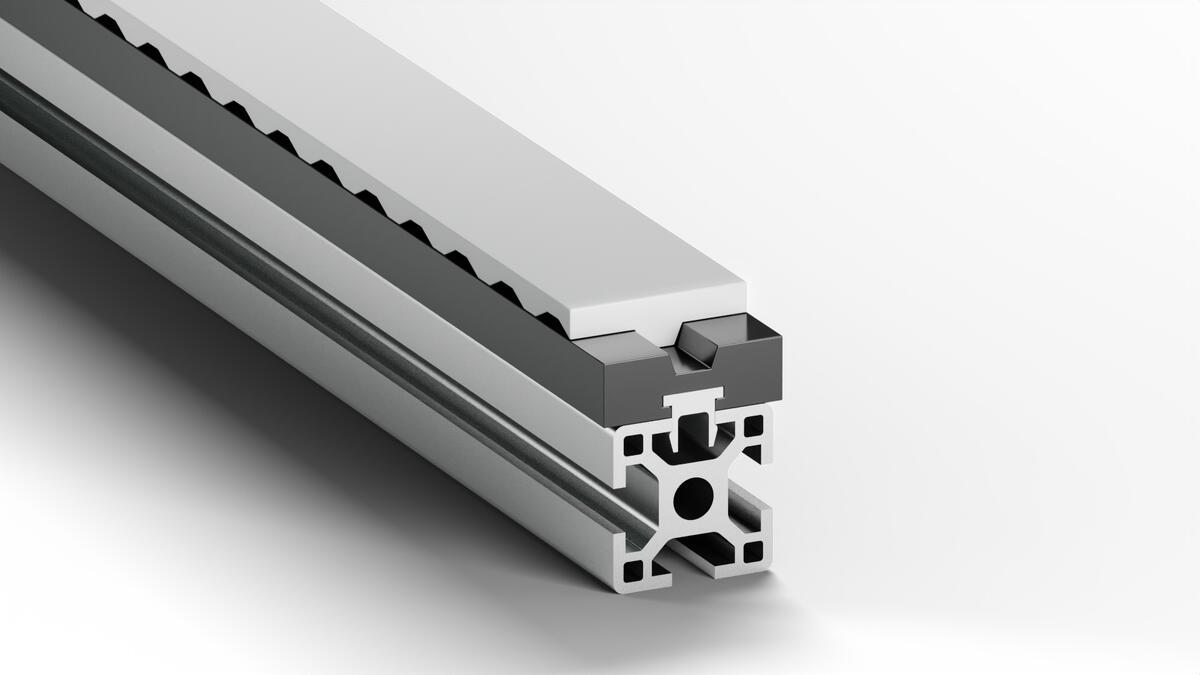

The SNAP-TRICKĀ® belt guide has been specifically designed to precisely guide the lateral guide lugs of a synchronous belt. This reliably prevents the belt from slipping ā€“ even at high speeds or under heavy loads.

The MURTFELDT guide is highly adaptable and can be custom-cut to meet your requirements ā€“ independent of the standard length of 2000 mm.

B1 (mm)28.0
H (mm)12.0
MaterialOriginal "S"Ā® black AST
Suitable SNAPSNAP Type S1 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S2 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S3 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S4 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S5 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S6 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S7 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S8 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S9 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S10 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S11 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S12 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S13 ā€“ Free Add-On (5 pcs/m)
Suitable SNAPSNAP Type S14 ā€“ Free Add-On (5 pcs/m)
h (mm)3.5
b (mm)6.0

Material Information
