Note: The product shown is for illustration purposes only.
Product number
231010021
CAD
Show in 3D

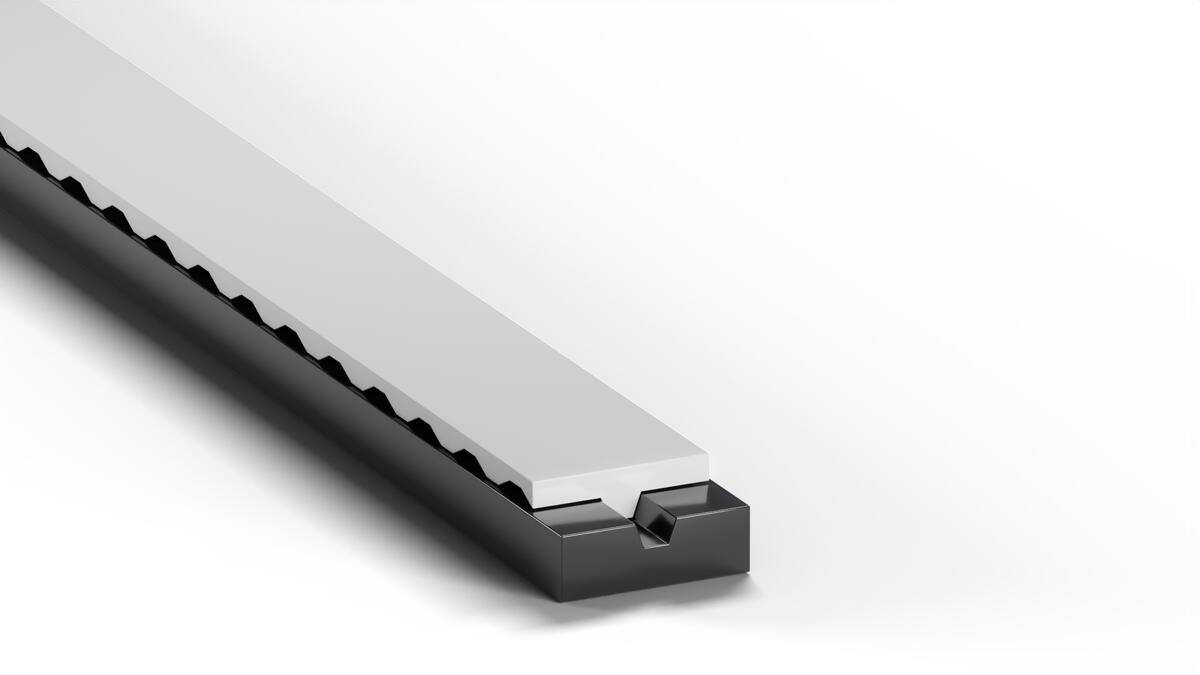

The FK belt guide is precisely designed to optimally guide the lateral guide cams of a timing belt. This reliably prevents the belt from slipping, even at high speeds or under heavy loads. Made from UHMW-PE Original "S"® black, the timing belt guide offers exceptionally high wear resistance and excellent sliding properties.
The MURTFELDT guide can be individually adapted to your requirements, regardless of the standard length of 2000 mm.

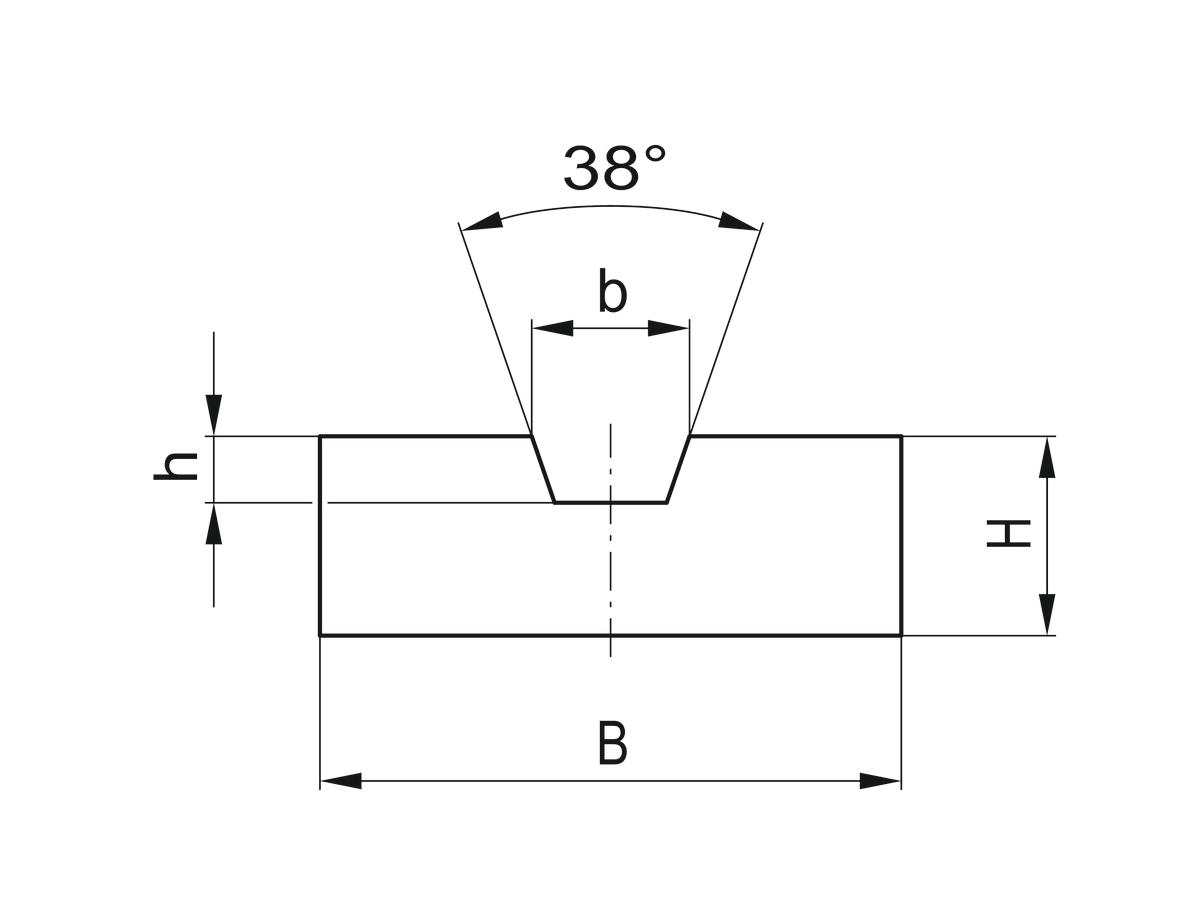

| Material | Original "S"® black AST |
| H (mm) | 10.0 |
| B1 (mm) | 28.0 |
| weight (kg) | 0.5 |
| b (mm) | 6.0 |
| h (mm) | 3.5 |
Belt guide Typ FK
Compatible Belt
Length (mm)
quick_reorder Ready to ship in: 1 working day
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
231010021
CAD
Show in 3D
The FK belt guide is precisely designed to optimally guide the lateral guide cams of a timing belt. This reliably prevents the belt from slipping, even at high speeds or under heavy loads. Made from UHMW-PE Original "S"® black, the timing belt guide offers exceptionally high wear resistance and excellent sliding properties.
The MURTFELDT guide can be individually adapted to your requirements, regardless of the standard length of 2000 mm.
| Material | Original "S"® black AST |
| H (mm) | 10.0 |
| B1 (mm) | 28.0 |
| weight (kg) | 0.5 |
| b (mm) | 6.0 |
| h (mm) | 3.5 |
