Note: The product shown is for illustration purposes only.
Product number
231110016
CAD
Show in 3D
The belt guide TYPE KRC was specifically developed for V-belts and ensures precise and material-friendly guidance – both for the guide rail and the belt itself. It is manufactured from the proven PE material Original S® black and is compatible with various V-belt types.
Available in a standard length of 2000 mm or as a custom-cut length, it is also suitable for use in explosive environments and can optionally be ordered with a stabilizing steel C-profile.
You can find suitable steel C profiles at the bottom of this page.

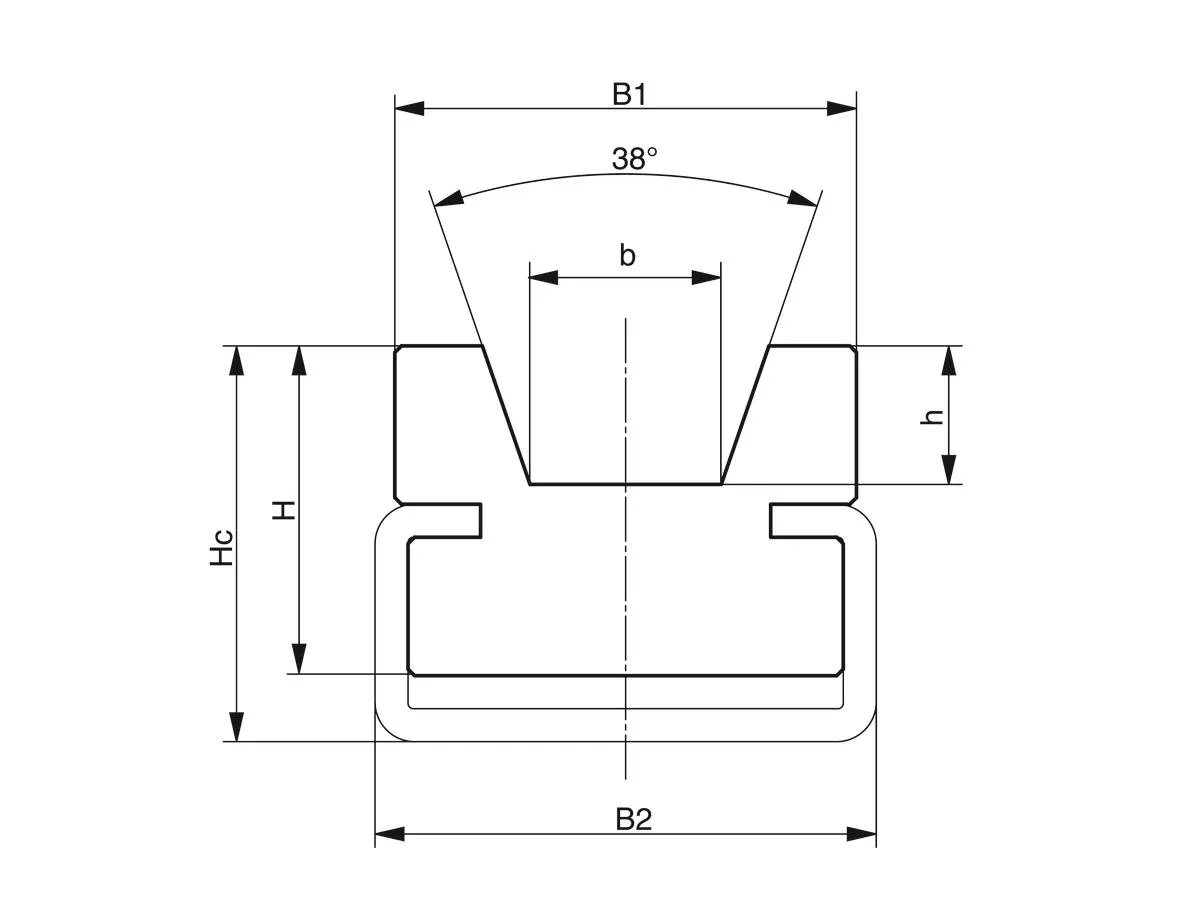

| Material | Original S® black AST |
| B1 (mm) | 30.0 |
| H (mm) | 18.0 |
| Width B2 (mm) | 28.0 |
| weight (kg) | 0.66 |
| Width b (mm) | 11.5 |
| Height h (mm) | 8.0 |
| Hc (mm) | 24.0 |
| Suitable C-profile type | C5 |
Belt guide TYPE KRC
Compatible Belt
Length (mm)
quick_reorder Ready to ship in: 1 working day
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
231110016
CAD
Show in 3D
The belt guide TYPE KRC was specifically developed for V-belts and ensures precise and material-friendly guidance – both for the guide rail and the belt itself. It is manufactured from the proven PE material Original S® black and is compatible with various V-belt types.
Available in a standard length of 2000 mm or as a custom-cut length, it is also suitable for use in explosive environments and can optionally be ordered with a stabilizing steel C-profile.
You can find suitable steel C profiles at the bottom of this page.
| Material | Original S® black AST |
| B1 (mm) | 30.0 |
| H (mm) | 18.0 |
| Width B2 (mm) | 28.0 |
| weight (kg) | 0.66 |
| Width b (mm) | 11.5 |
| Height h (mm) | 8.0 |
| Hc (mm) | 24.0 |
| Suitable C-profile type | C5 |
