Product number
The automatic chain tensioning system from MURTFELDT, consisting of a Spann-Box® with a deflection profile, as well as two elliptical profiles made from original "S"® green®, significantly reduces vibrations and noise. This greatly contributes to extending the lifespan of the chains.
The long housing is specifically designed for long chain drives and reverse operation. The installation is straightforward. The standard profile width is 30 mm, and additional sizes are available upon request. If needed, we will work with you to develop a customized solution that is perfectly tailored to your requirements.
Construction type | european |
Matching chain | 08B-1 |
Enclosure material | Stainless steel |
tensioning force | heavy |
Clamping path (mm) | 40 |
Clamping force according to number of springs (N) | 132 - 60 |
Clamping force according to number of springs (N) | 264 - 120 |
Clamping force according to number of springs (N) | 396 - 180 |
Profile width (mm) | 30.0 |
Suitable mounting brackets | 281090001 |
Suitable mounting brackets | 281090029 |
Suitable mounting brackets | 281090092 |
Case shape | long casing |
Guide type | return profile + guide roller |

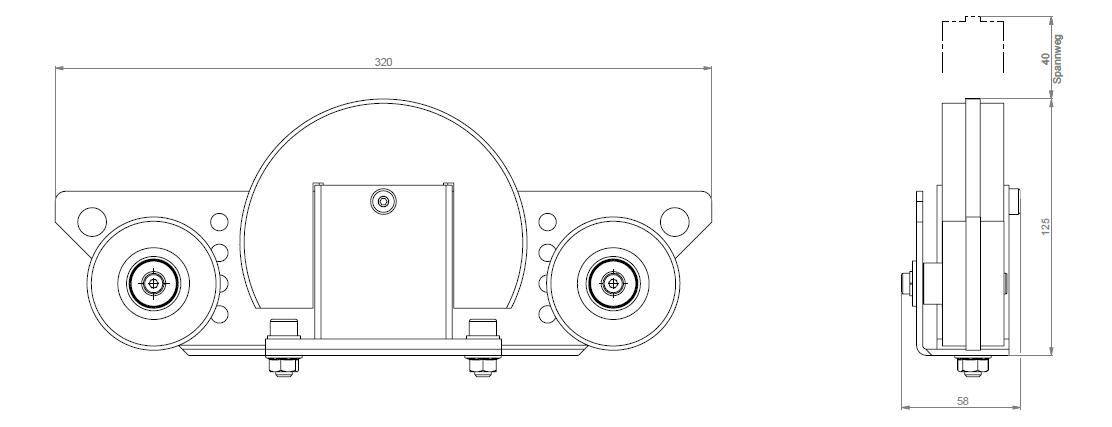

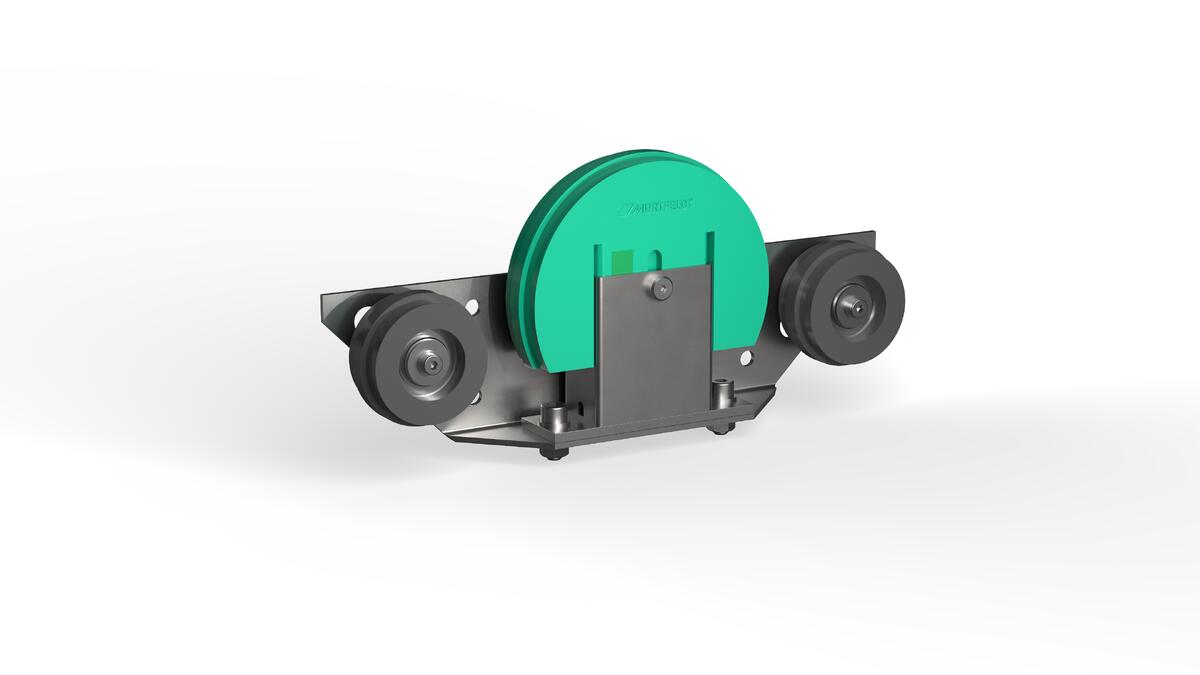

Omega Tensioning Station
Chain tensioning system with deflection profile
Variante
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Login
Product number
The automatic chain tensioning system from MURTFELDT, consisting of a Spann-Box® with a deflection profile, as well as two elliptical profiles made from original "S"® green®, significantly reduces vibrations and noise. This greatly contributes to extending the lifespan of the chains.
The long housing is specifically designed for long chain drives and reverse operation. The installation is straightforward. The standard profile width is 30 mm, and additional sizes are available upon request. If needed, we will work with you to develop a customized solution that is perfectly tailored to your requirements.
Construction type | european |
Matching chain | 08B-1 |
Enclosure material | Stainless steel |
tensioning force | heavy |
Clamping path (mm) | 40 |
Clamping force according to number of springs (N) | 132 - 60 |
Clamping force according to number of springs (N) | 264 - 120 |
Clamping force according to number of springs (N) | 396 - 180 |
Profile width (mm) | 30.0 |
Suitable mounting brackets | 281090001 |
Suitable mounting brackets | 281090029 |
Suitable mounting brackets | 281090092 |
Case shape | long casing |
Guide type | return profile + guide roller |
